Visaton 51mm dia 2W nom Full Range Speaker Driver, 8Ω, 250 Hz → 10 kHz
- RS庫存編號:
- 690-3699
- 製造零件編號:
- K 50 SQ 8 OHM
- 製造商:
- Visaton
- RS庫存編號:
- 690-3699
- 製造零件編號:
- K 50 SQ 8 OHM
- 製造商:
- Visaton
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

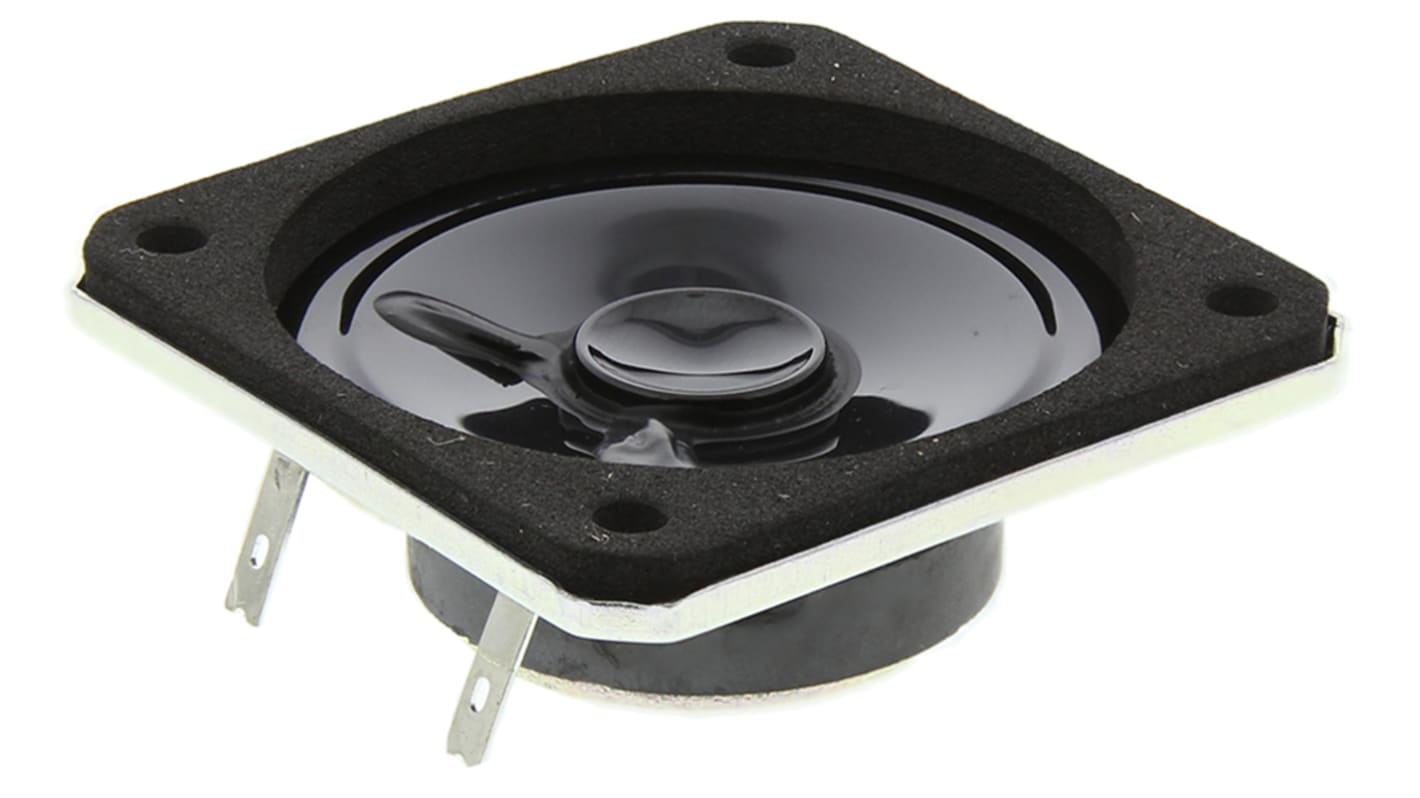

5cm Miniature Speaker
A 5 cm (2") miniature speaker with plastic diaphragm, square metal basket with 4 mounting holes and foam gasket. 2.8 x 0.5 mm contact pin. Compact and suitable for signal output in machines and other equipment where space is at a premium
Note
IP65 protection class for the speaker front side when built into a sealed enclosure
規格
Attribute | Value |
|---|---|
| Speaker Part | Speaker Driver |
| Impedance | 8Ω |
| Nominal Rated Power | 2W |
| Frequency Type | Full Range |
| Diameter | 51mm |
| Driver Shape | Round |
| Speaker Driver Size | 8 cm (3 in) and Under |
| Cone/Dome Size | 45mm |
| Cone/Dome Width | 45mm |
| Frequency Response | 250 Hz → 10 kHz |
| Waterproof | Yes |
| Length | 51mm |
| Width | 51mm |
| Depth | 18.5mm |
| Maximum Rated Power | 3W |
| Minimum Frequency Response | 250 Hz |
| Maximum Frequency Response | 10 kHz |
| Cone/Dome Material | Mylar |
| Weight | 50g |
