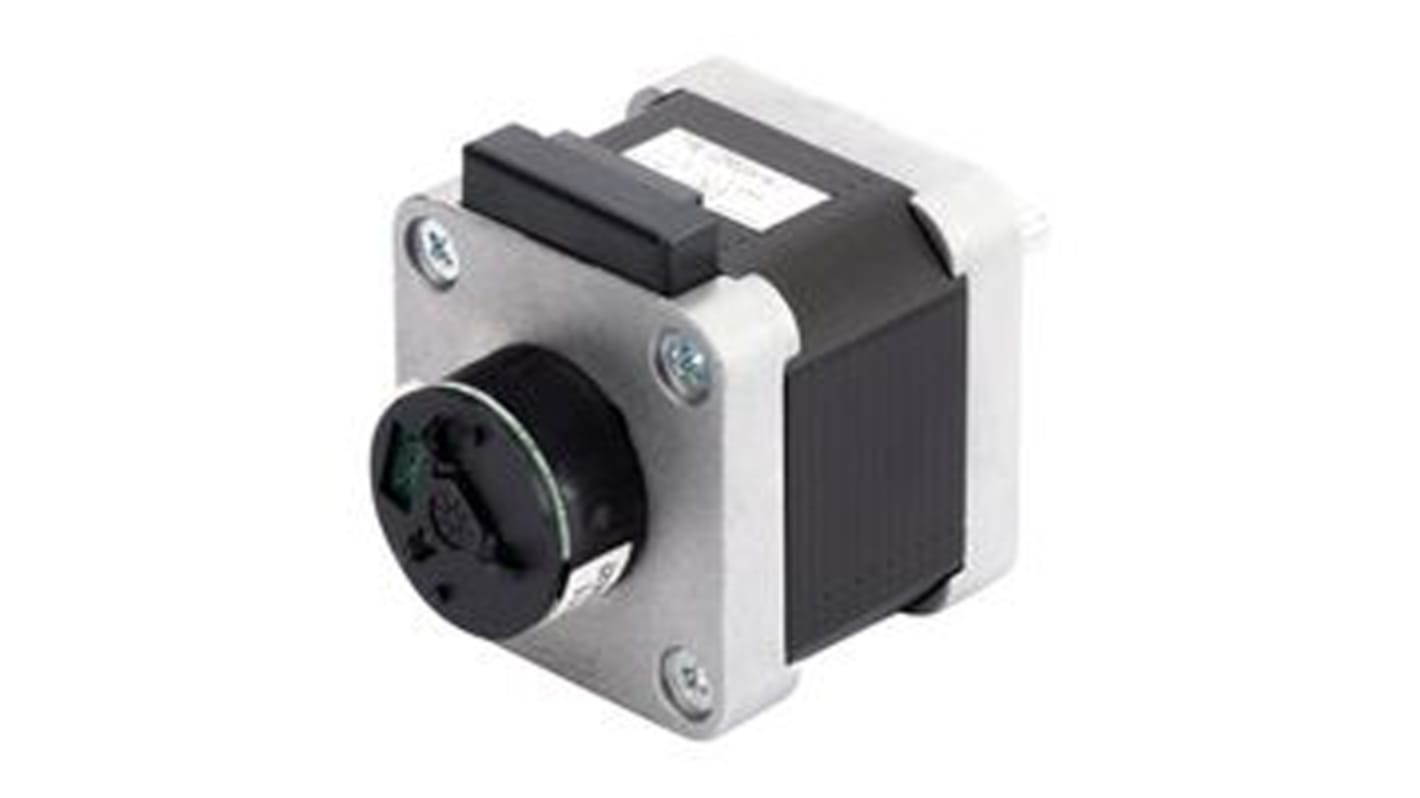

Sanyo Denki 2H42 Series Hybrid, Single Shaft Stepper Motor, 0.39Nm Torque, 36 V, 1.8°, 42 x 42mm Frame, 5mm Shaft
- RS庫存編號:
- 136-6702
- 製造零件編號:
- 2H4238B17R220
- 製造商:
- Sanyo Denki
- RS庫存編號:
- 136-6702
- 製造零件編號:
- 2H4238B17R220
- 製造商:
- Sanyo Denki
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
Sanyo Denki 2H42 Series Stepper Motors
Sanyo Denki range of 2H42 series Stepper Motors providing the user with a comprehensive range of options to ensure that your application is covered. These 42 mm Sq. stepper motors are lead wire and connector type and are available with a step angle from 0.9° to 1.8°
Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available
Sanyo Denki Stepper Motor
規格
Attribute | Value |
|---|---|
| Stepper Motor Type | Hybrid, Single Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.39Nm |
| Number Of Wires | 4 |
| Supply Voltage | 36 V |
| Frame Size | 42 x 42mm |
| Shaft Diameter | 5mm |
| Current Rating | 1.7 A |
| Winding Arrangement | Bipolar |
| Shaft Length | 24mm |
| Depth | 42mm |
| Resistance Per Phase | 1.3Ω |
| Series | 2H42 |
| Standards Met | CE, UL, TUV, RoHS Compliant |
