Rittal Ripac VARIO Series 3U Aluminium Rack Mount Chassis, 84HP, 185mm Depth
- RS庫存編號:
- 187-015
- 製造零件編號:
- 3684020
- 製造商:
- Rittal
- RS庫存編號:
- 187-015
- 製造零件編號:
- 3684020
- 製造商:
- Rittal
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

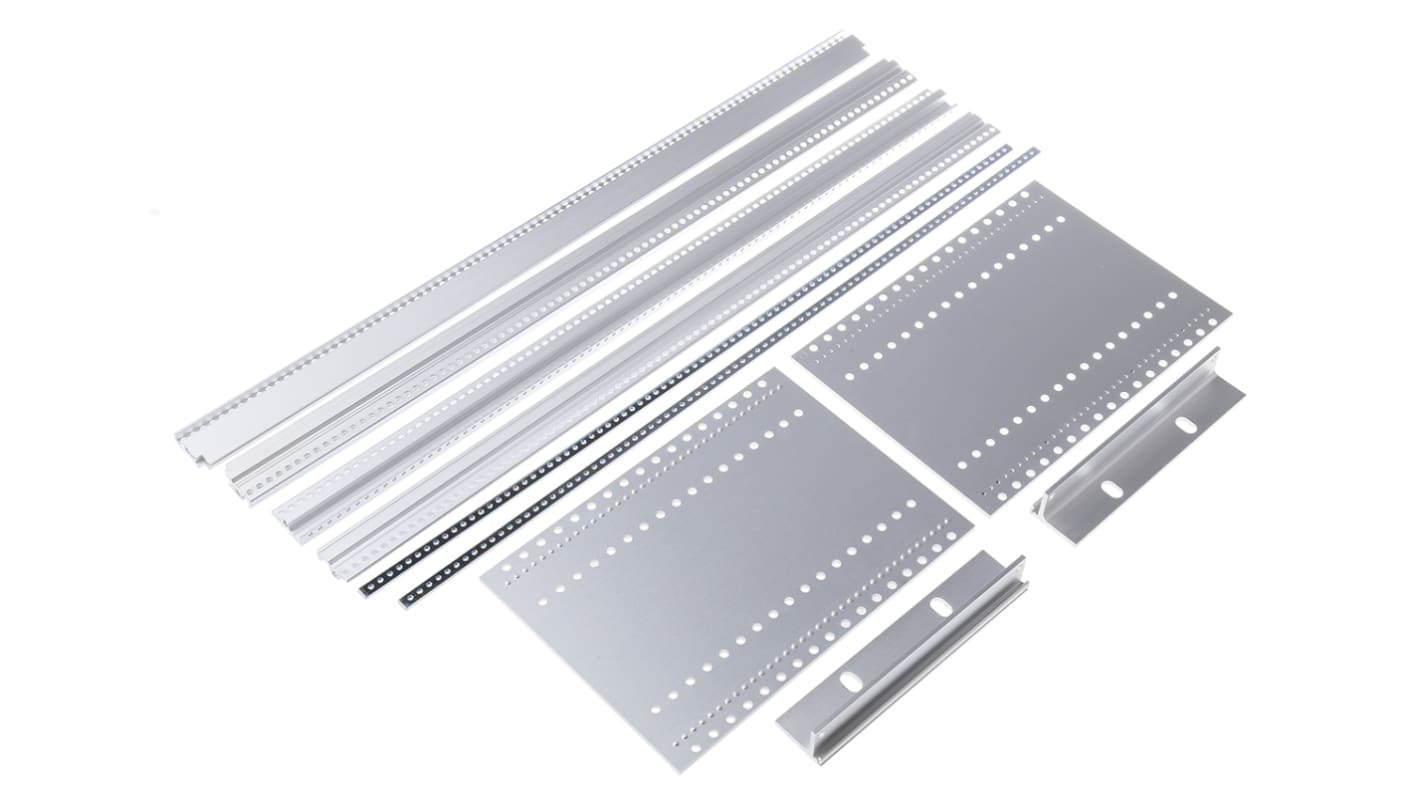

Ripac Vario Sub-Rack Kit
A universal, flexible, sub-rack range, capable of EMC upgrade, for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks. Optional Backplane or "Z" rails (connector). Kit consists of:
Side Plates: 2.5mm Aluminium, Clear Chromated
Front and Rear horizontal Rails: Aluminium, Clear Chromated
Flanges: Aluminium, Clear Chromated
Threaded inserts
Assembly screws
Insulation strips for (Backplane) or “Z” rails (connector)
Front and Rear horizontal Rails: Aluminium, Clear Chromated
Flanges: Aluminium, Clear Chromated
Threaded inserts
Assembly screws
Insulation strips for (Backplane) or “Z” rails (connector)
Standards
IEC 60 297-3 to 5.
Approvals
IEC 600-68-2-6 test Fc, IEC 600-68-2-27 test Ea
Ripac Vario and EMC Sub-Racks
A universal, flexible, sub-rack range, capable of EMC upgrade, for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks.
規格
Attribute | Value |
|---|---|
| Rack Units | 3U |
| Series | Ripac VARIO |
| Horizontal Pitch | 84HP |
| Depth | 185mm |
| Colour | Natural |
| Material | Aluminium |
| Dimensions | 129.4 x 482.6 x 185mm |
| Height | 129.4mm |
| Width | 482.6mm |
