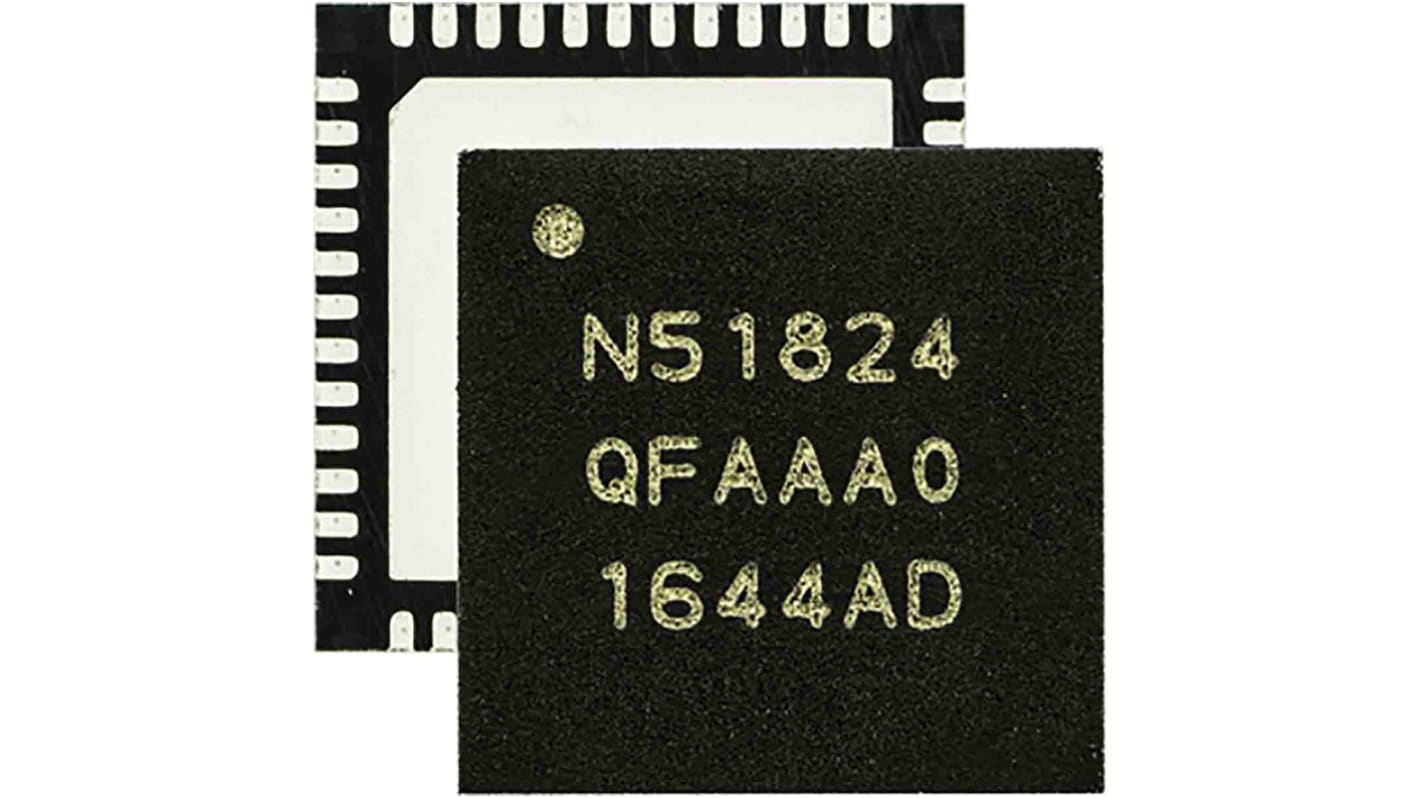

Nordic Semiconductor nRF51824-QFAA-R7, System-On-Chip 48-Pin QFN
- RS庫存編號:
- 196-3898
- 製造零件編號:
- nRF51824-QFAA-R7
- 製造商:
- Nordic Semiconductor
當前暫無庫存，可於2024/9/4發貨，3 工作日送達。
已增加
單價 个（每带 1000 ）
HK$56.896
| 單位 | Per unit | Per Reel* |
| 1000 - 1000 | HK$56.896 | HK$56,896.00 |
| 2000 - 3000 | HK$55.474 | HK$55,474.00 |
| 4000 + | HK$54.62 | HK$54,620.00 |
| * 參考價格 | ||
- RS庫存編號:
- 196-3898
- 製造零件編號:
- nRF51824-QFAA-R7
- 製造商:
- Nordic Semiconductor
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- PH
產品詳細資訊
The nRF51824 is an auto grade, general purpose, ultra-low power SoC ideally suited for Bluetooth® Low Energy and 2.4 GHz proprietary wireless applications. It is built around the 32-bit ARM® Cortex™-M0 CPU with 256 KB flash + 16 KB RAM. The flexible 2.4 GHz radio supports Bluetooth Low Energy and 2.4 GHz proprietary protocols, such as Gazell. It incorporates a rich selection of analogue and digital peripherals that can interact directly without CPU intervention through the Programmable Peripheral Interconnect (PPI) system. Flexible GPIOs enables you to connect digital interfaces like SPI Master/slave, TWI Master and UART to any of the 31 GPIOs on the device.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Processing Unit | Microcontroller |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 48 |
| Dimensions | 6 x 6 x 0.85mm |
| Height | 0.85mm |
| Length | 6mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Supply Voltage | 1.9 V |
| Minimum Operating Temperature | -40 °C |
| Width | 6mm |
| Automotive Standard | AEC-Q100 |
