- RS庫存編號:
- 449-4364
- 製造零件編號:
- LKM 223/1
- 製造商:
- LKMelectronic
- RS庫存編號:
- 449-4364
- 製造零件編號:
- LKM 223/1
- 製造商:
- LKMelectronic
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

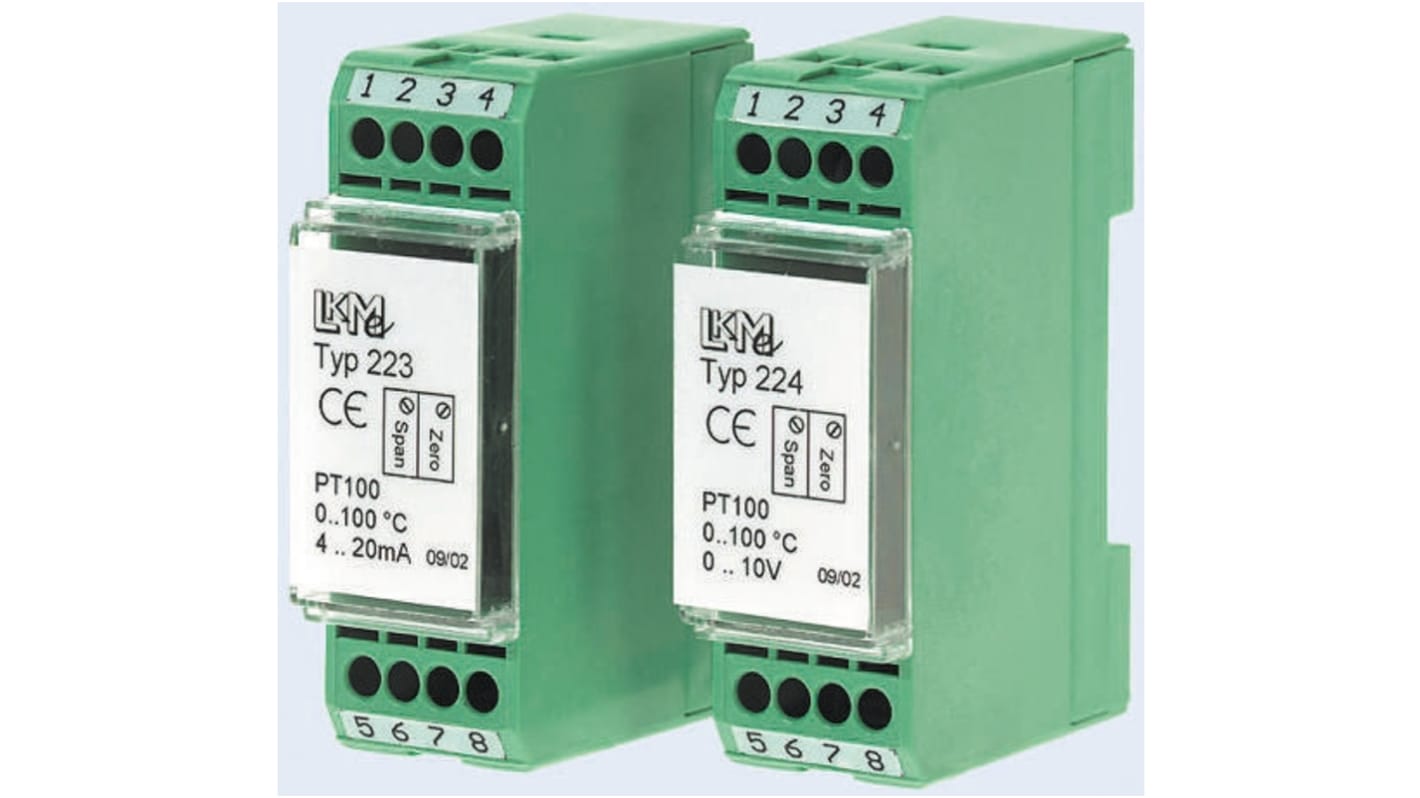

LKMelectronic Temperature Transducer
The LKMelectronic LKM223 analogue transducer is designed for PT100 temperature sensors. It converts the temperature-sensitive resistance into analogue current output rating ranging between 4mA to 20mA. This transducer can be mounted on customary rail systems. It is tuned to work according to customer requirements. Further, fine-tuning can be arranged by a span and zero controllers.
Features and Benefits
Polycarbonate housing
Screw terminals
Operating temperature ranging between -40°C and 85°C
Supply voltage is 24V
Sensing range varies between 0°C and 100°C
Screw terminals
Operating temperature ranging between -40°C and 85°C
Supply voltage is 24V
Sensing range varies between 0°C and 100°C
Certifications
DIN EN 60751
EN 61326-1:2006
EN 61326-2-3:2006
EN 61326-1:2006
EN 61326-2-3:2006
規格
Attribute | Value |
|---|---|
| Input Type | PT100 |
| Supply Voltage | 24 V |
| Minimum Temperature Input | -30°C |
| Maximum Temperature Input | +70°C |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Series | LKM 223 |
| Depth | 53mm |
