Schutzinger 6.2mm Black Terminal Post, 33V dc, 16A, M6 Thread
- RS庫存編號:
- 909-2263
- 製造零件編號:
- SDK 504 / SW
- 製造商:
- Schutzinger
- RS庫存編號:
- 909-2263
- 製造零件編號:
- SDK 504 / SW
- 製造商:
- Schutzinger
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

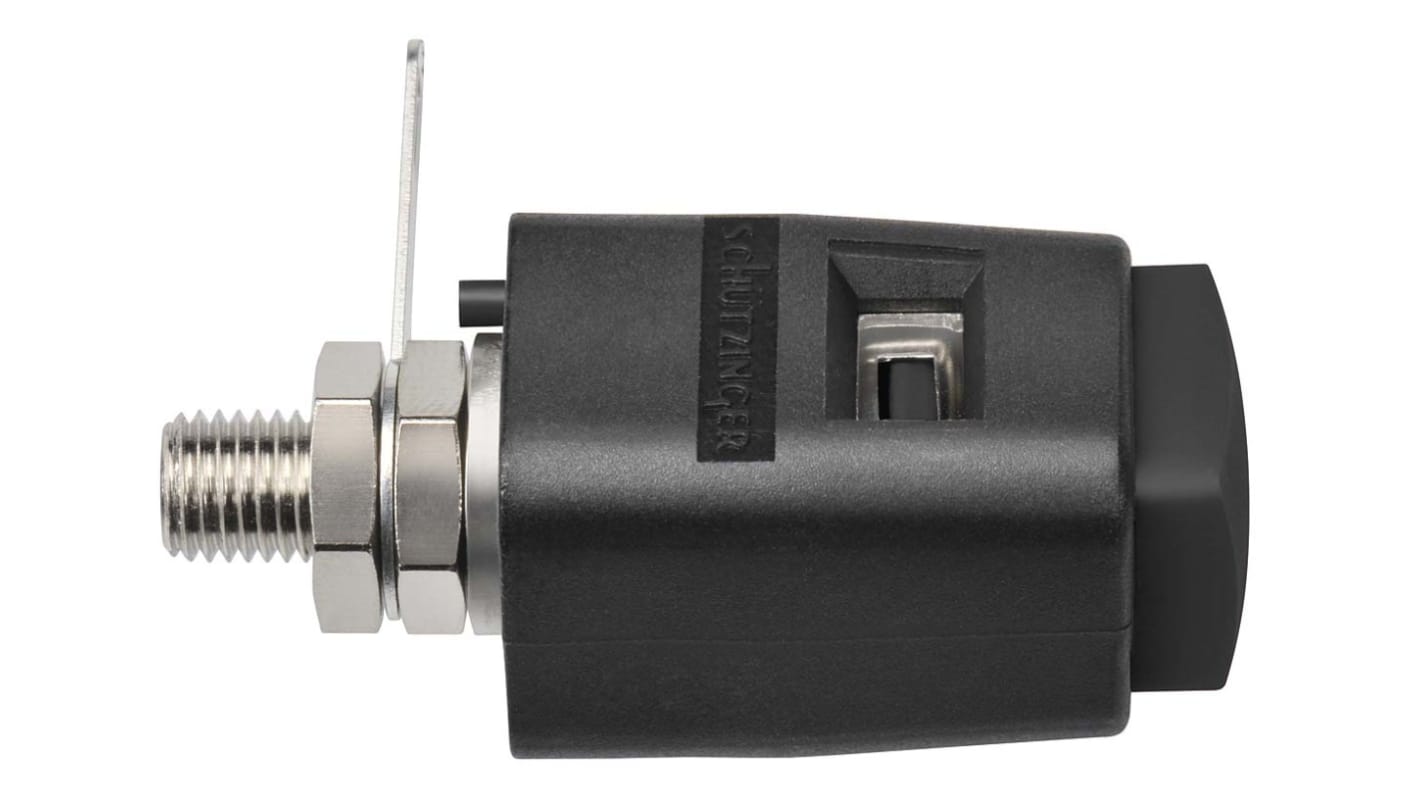

Schutzinger Quick Release Terminal Post
Brought to you by Schutzinger, this quick release terminal post offers a quick and easy wire to panel connection, with a simple spring clamp action. The terminal post has an M6 thread fitted with a nut for secure mounting to non-metal panels.
Also known as a laboratory clamp, this component offers convenience and reliability in test and measurement applications.
Also known as a laboratory clamp, this component offers convenience and reliability in test and measurement applications.
Features and Benefits
• Spring Clamp action
• Polyamid Body
• Non-Insulated
• Transition Resistance of 5 mΩ
• Maximum torque of fastening nut is 120 Ncm
• Polyamid Body
• Non-Insulated
• Transition Resistance of 5 mΩ
• Maximum torque of fastening nut is 120 Ncm
規格
Attribute | Value |
|---|---|
| Colour | Black |
| Hole Diameter | 6.2mm |
| Current Rating | 16A |
| Thread Size | M6 |
| Voltage Rating | 33 V dc, 70V dc |
| Insulated | Yes |
| Body Material | PA 6.6 |
| Maximum Panel Thickness | 5mm |
| Height Above Panel | 29mm |
