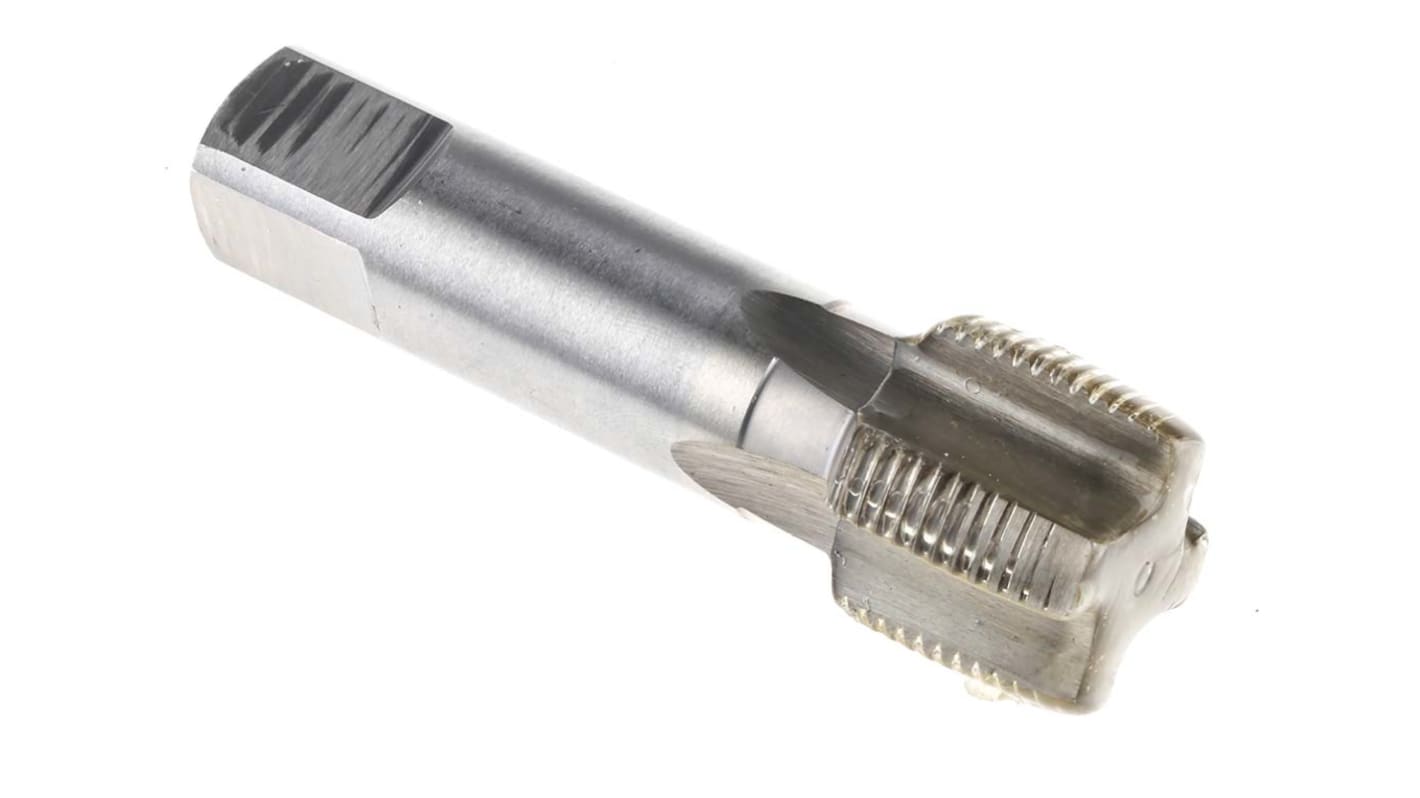

EVENTUS Threading Tap, G3/4-14 Thread, BSP Standard
- RS庫存編號:
- 602-2141
- 製造零件編號:
- 20185
- 製造商:
- EVENTUS
- RS庫存編號:
- 602-2141
- 製造零件編號:
- 20185
- 製造商:
- EVENTUS
產品概覽和技術數據資料表
法例與合規
不適用
產品詳細資訊
Single-cut BSP pipe tap
HSS-G single-cut tap with straight flute
D format, with 5-pitch spiral point
Short version for blind and through holes
Profile ground and relief ground, for manual and machine use
For Whitworth pipe threads DIN 259 ISO 228
Square stem
Tap wrench available under order no. 508-9389 or 444-946 depending on the shaft size
D format, with 5-pitch spiral point
Short version for blind and through holes
Profile ground and relief ground, for manual and machine use
For Whitworth pipe threads DIN 259 ISO 228
Square stem
Tap wrench available under order no. 508-9389 or 444-946 depending on the shaft size
Standards
DIN 5157
規格
Attribute | Value |
|---|---|
| Thread Size | G3/4-14 |
| Set Type | Threading Tap |
| Type | Short Machine |
| Thread Standard | BSP |
| Number of Pieces | 1 |
| Overall Length | 90 mm |
| Material | HSS |
