- RS庫存編號:
- 121-8461
- 製造零件編號:
- NE555D
- 製造商:
- Texas Instruments
1575 現貨庫存,可於3工作日發貨。
已增加
單價 毎管:75 个
HK$5.367
單位 | Per unit | Per Tube* |
75 - 75 | HK$5.367 | HK$402.525 |
150 - 225 | HK$5.207 | HK$390.525 |
300 - 675 | HK$5.045 | HK$378.375 |
750 - 1425 | HK$4.938 | HK$370.35 |
1500 + | HK$4.831 | HK$362.325 |
* 參考價格 |
- RS庫存編號:
- 121-8461
- 製造零件編號:
- NE555D
- 製造商:
- Texas Instruments
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- MX
產品詳細資訊

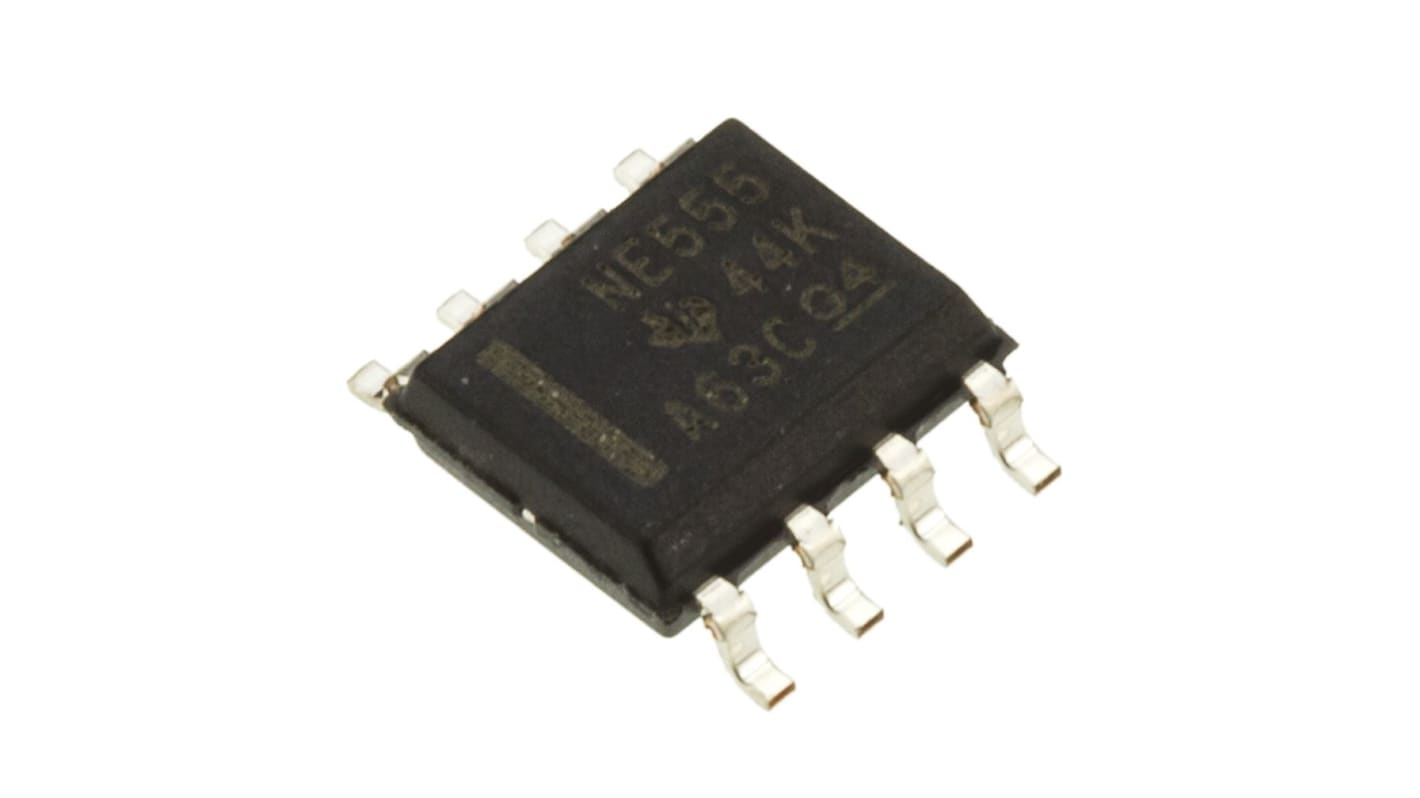

555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
Timers/Timing Generators
規格
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Timer Type | Standard |
Package Type | SOIC |
Number of Internal Timers | 1 |
Pin Count | 8 |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 16 V |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | +70 °C |
Maximum Quiescent Current | 15mA |
Maximum Low Level Output Current | 200mA |
Maximum High Level Output Current | -200mA |
Height | 1.58mm |
Dimensions | 4.9 x 3.91 x 1.58mm |
Width | 3.91mm |
Length | 4.9mm |
