- RS庫存編號:
- 346-7024
- 製造零件編號:

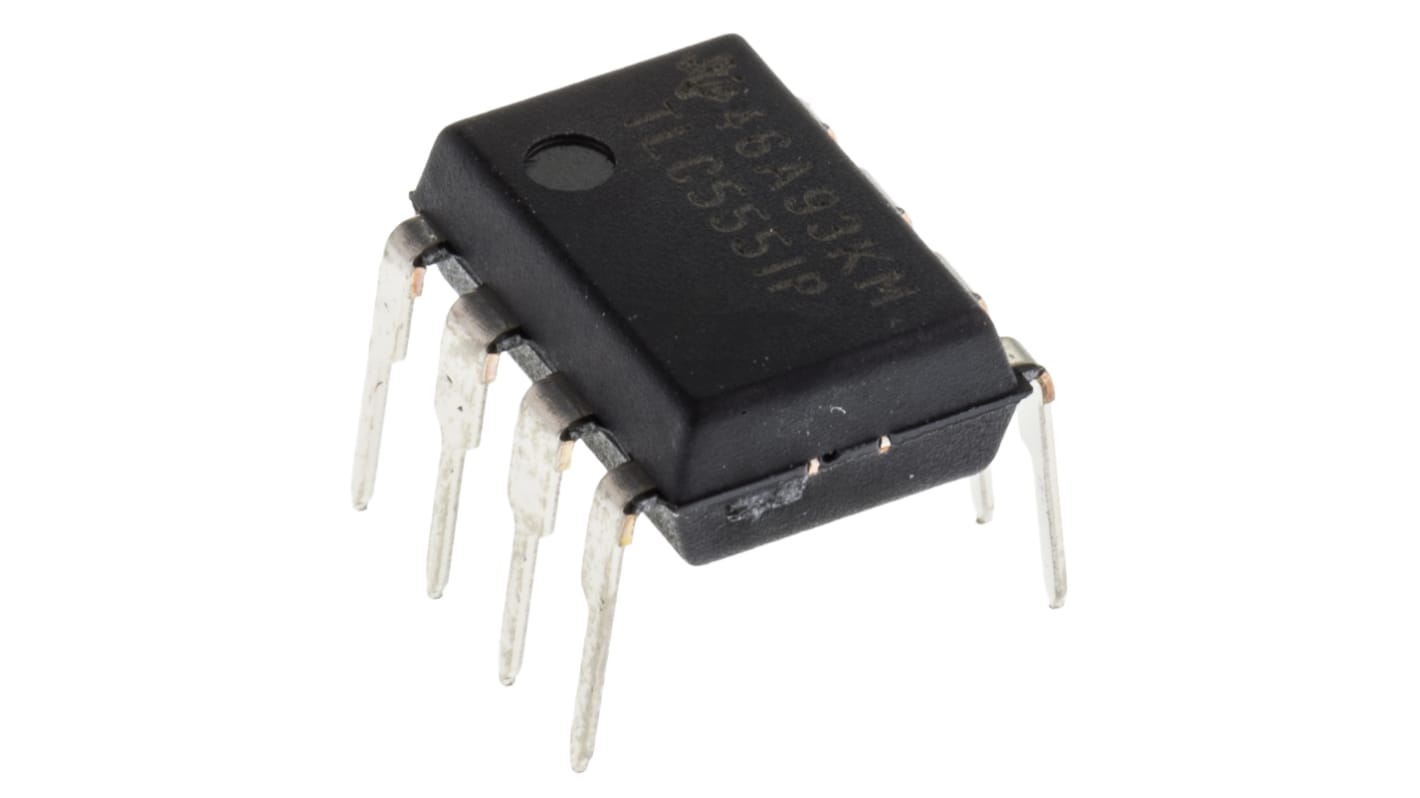

- TLC555IP
- 製造商:
- Texas Instruments
- RS庫存編號:
- 346-7024
- 製造零件編號:
- TLC555IP
- 製造商:
- Texas Instruments
法例與合規
產品詳細資訊
555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Timers/Timing Generators
規格
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Timer Type | Standard |
Package Type | PDIP |
Number of Internal Timers | 1 |
Pin Count | 8 |
Maximum Input Frequency | 2MHz |
Minimum Operating Supply Voltage | 3 V |
Maximum Operating Supply Voltage | 15 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Maximum Low Level Output Current | 100mA |
Maximum High Level Output Current | -10mA |
Height | 4.57mm |
Dimensions | 9.81 x 6.35 x 4.57mm |
Length | 9.81mm |
Width | 6.35mm |
