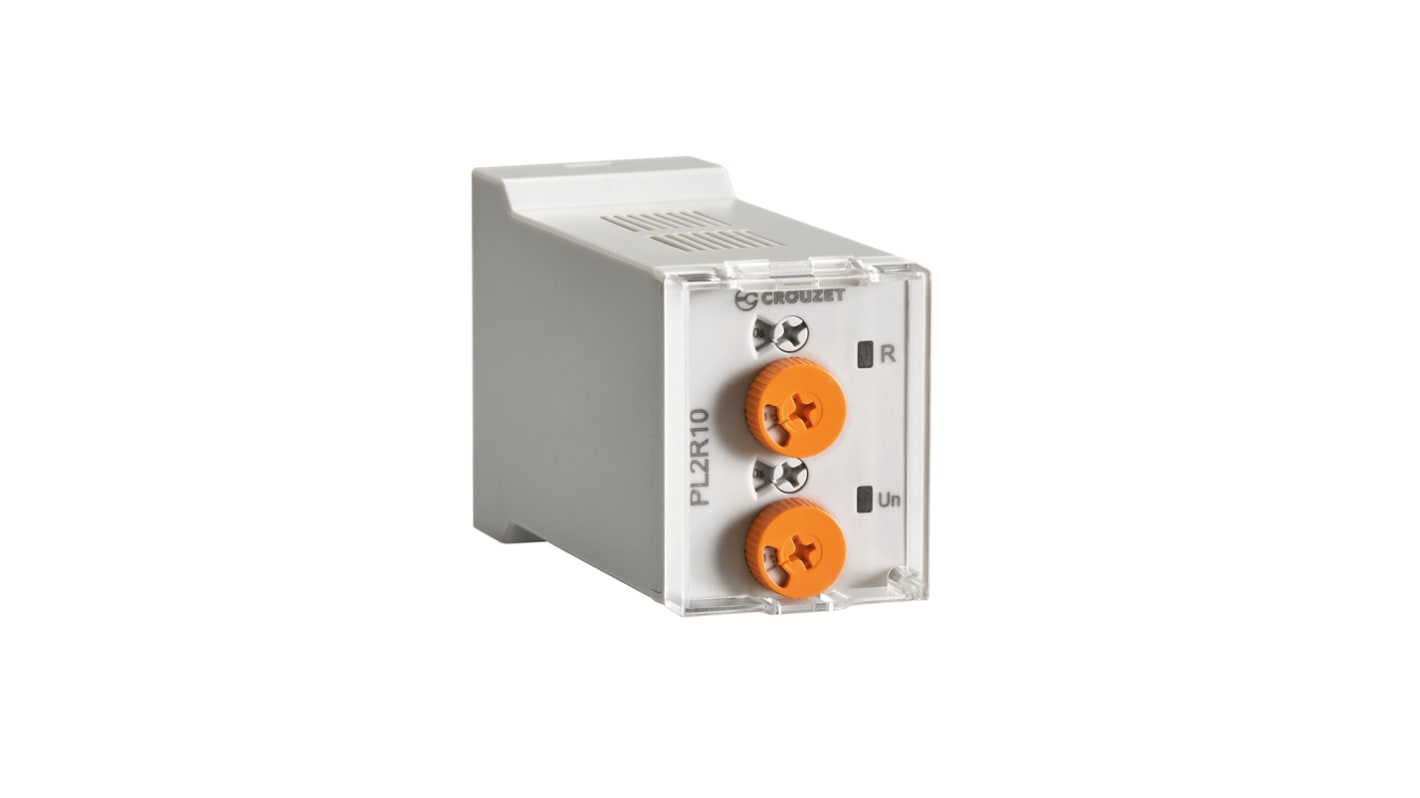

Crouzet PL2R Series Plug In Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.05 → 1min, SPDT
- RS庫存編號:
- 182-9968
- 製造零件編號:
- PL2R10MV1
- 製造商:
- Crouzet
- RS庫存編號:
- 182-9968
- 製造零件編號:
- PL2R10MV1
- 製造商:
- Crouzet
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
CROUZET Timer SYR-LINE Syr-Line, Plug-in Timer, Function L, output 2x10A, 12-240 VACDC, 11 Pins
Multifunction or monofunction
Compact body for space saving
Wide time range (from 0.5 seconds to 10 days delay)
Universal power supply (12-240 V≈)
1 or 2 relay outputs (SPDT / Changeover)
Protective cover
LED status indicator
3-wire PNP sensor compatible
11-pins connections
Compact body for space saving
Wide time range (from 0.5 seconds to 10 days delay)
Universal power supply (12-240 V≈)
1 or 2 relay outputs (SPDT / Changeover)
Protective cover
LED status indicator
3-wire PNP sensor compatible
11-pins connections
規格
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | Plug In |
| Mode of Operation | Interval |
| Time Range | 0.05 → 1 min, 0.05 → 1 days, 0.05 → 1 h, 0.5 → 10 s, 0.5 → 10 days, 0.5 → 10 h, 0.5 → 10min |
| Number of Contacts | 2 |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPDT |
| Maximum Current | 10A |
| Maximum Voltage | 240V ac/dc |
| Switch Configuration | SPDT |
| Terminal Type | Plug In |
| Minimum Voltage | 12V ac/dc |
| Width | 82.31mm |
| Depth | 53mm |
| Series | PL2R |
| Length | 35mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Time Delay | 0.5s |
