- RS庫存編號:
- 237-8793
- 製造零件編號:
- TT32ML
- 製造商:
- Tempatron
可供預購。
單價 个
HK$937.25
單位 | Per unit |
1 - 24 | HK$937.25 |
25 - 49 | HK$890.39 |
50 + | HK$862.27 |
替代產品
Tempatron TT33 Series Panel Mount Timer Relay, 24V ac, 2-Contact, 0.01 → 99.99s, SPST
HK$1,334.06
个
RS庫存編號: 217-6248
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 237-8793
- 製造零件編號:
- TT32ML
- 製造商:
- Tempatron
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

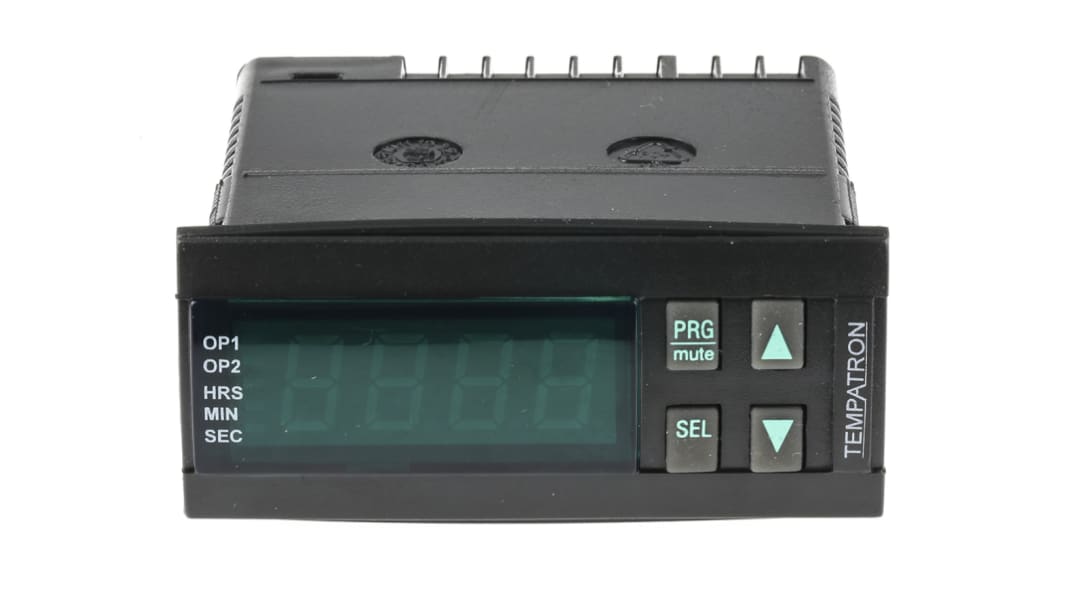

Tempatron Multi-function Timer Relay
The Tempatron multi-function timer relay is suitable for controlling the operation of equipment, machinery, systems or processes in a wide range of industrial applications. This timer relay performs delay functions like cycle time monitor, delay cycle, delay pulse, dependent ON delay energise, interval, ON delay de-energise, ON delay, energise, ON delay energise and interval, the sequence in the range of 0.1 seconds to 99:59 hours. This 4-digit dual digital timer relay can be installed into new and existing applications without much hassle. Its affordability, optimum space management and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
1 SPNC C/O and 1 SPNO C/O contact configuration
Timer may be externally started or the start input may be used as a reset
The supply voltage rating is 12VAC to 24VAC and 12VDC to 24VDC
Dual 4-digit green LED display dual timer
9 programmable timing modes
6 time ranges between 0.1 second and 99:59 hours
Programmable reset as well as external hold and reset function available
Security passcode
Panel mounting
Selectable up/down timing
LED status and timing indicators
Transformers available for 110V or 230V
Matching temperature controllers
Timer may be externally started or the start input may be used as a reset
The supply voltage rating is 12VAC to 24VAC and 12VDC to 24VDC
Dual 4-digit green LED display dual timer
9 programmable timing modes
6 time ranges between 0.1 second and 99:59 hours
Programmable reset as well as external hold and reset function available
Security passcode
Panel mounting
Selectable up/down timing
LED status and timing indicators
Transformers available for 110V or 230V
Matching temperature controllers
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP65 rated front display
CE certified
EN 50081-1
EN 50082-1
EN 61010-1
CE certified
EN 50081-1
EN 50082-1
EN 61010-1
規格
Attribute | Value |
---|---|
Supply Voltage | 12 → 24V ac/dc |
Mounting Type | Panel Mount |
Time Range | 0 → 99:59 h, 0.1 → 999.9 s, 1 → 99:59min |
Number of Contacts | 2 |
Number of Timer Functions | Multi Function |
Time Increment | Hours, Minutes, Seconds |
Maximum Voltage | 30V dc |
Switch Configuration | DPDT |
Power Supply | External |
Width | 75mm |
Maximum Operating Temperature | +50°C |
Depth | 71.5mm |
Length | 33mm |
Minimum Operating Temperature | 0°C |
