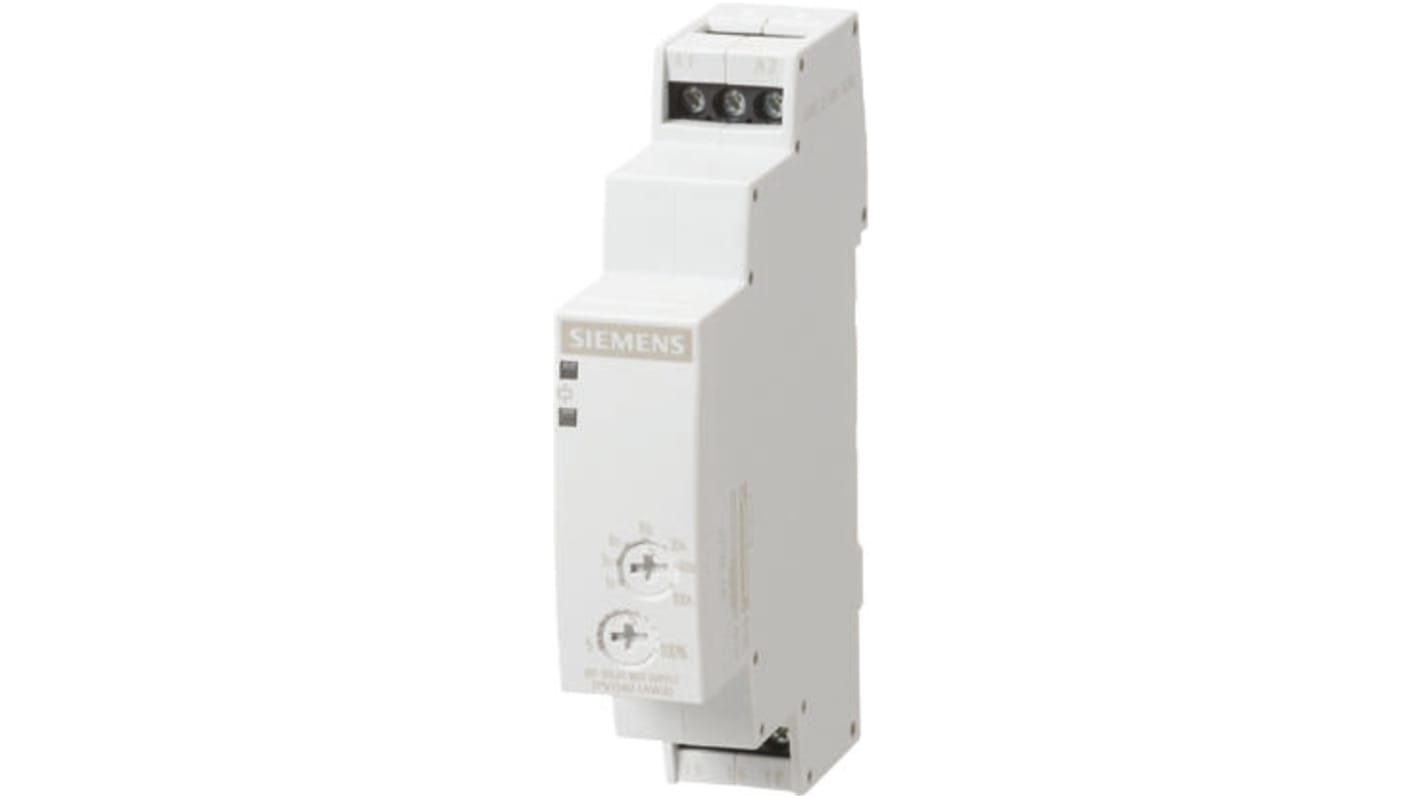

Siemens DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 0.05 → 100 s, 3 → 100 min, 5
- RS庫存編號:
- 699-7064
- 製造零件編號:
- 7PV1540-1AW30
- 製造商:
- Siemens
2 在3 工作日內發貨 (海外庫存)
1 在4 工作日內發貨 (海外庫存)
已增加
單價 个
HK$857.10
| 單位 | Per unit |
| 1 - 24 | HK$857.10 |
| 25 - 49 | HK$814.20 |
| 50 + | HK$788.60 |
- RS庫存編號:
- 699-7064
- 製造零件編號:
- 7PV1540-1AW30
- 製造商:
- Siemens
法例與合規
- COO (Country of Origin):
- CZ
產品詳細資訊
7PV15 - timer relay; real shut-off delay
7 time ranges
Wide range input
Change the time range during operation
Change the functional operation in de-energised state
High repeat accuracy
Integrated overvoltage protection
LED status display
Slim design
Wide range input
Change the time range during operation
Change the functional operation in de-energised state
High repeat accuracy
Integrated overvoltage protection
LED status display
Slim design
True Off Delay
規格
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | OFF Delay |
| Time Range | 0.05 → 100 s, 3 → 100 min, 5 → 100h |
| Number of Contacts | 1 |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | (dc) 1 A, (ac) 3A |
| Maximum Voltage | 250V ac/dc |
| Terminal Type | Screw |
| Switch Configuration | SPDT |
| Width | 17.5mm |
| Power Supply | External |
| Depth | 66.7mm |
| Maximum Operating Temperature | +55°C |
| Length | 90mm |
| Minimum Operating Temperature | -25°C |
