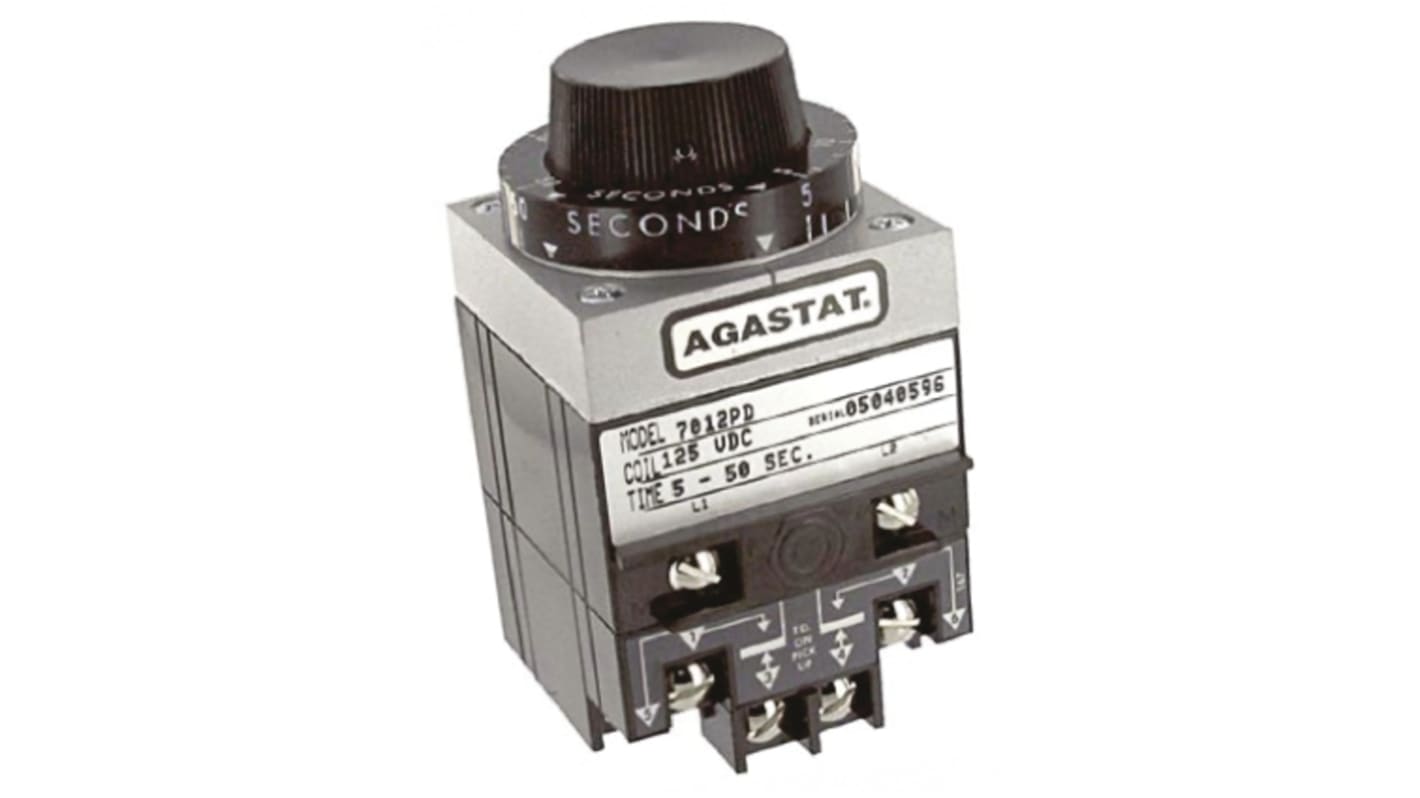

TE Connectivity Timer Relay, Screw, 5 → 50 s, DPDT
- RS庫存編號 782-1602
- 製造零件編號 7012PD
- 製造商 TE Connectivity
7000 Series - Electropneumatic Timing Relay, on-delay
The 7000 Series is a range of industrial electropneumatic timing relay.
This series convinced by a calibrated timing head, a precision-wound potted coil and a snap-action switch assembly.
On-delay function
Oversized time-calibrated adjustment knobs
Markings visible from all angles
Inherent transient immunity
Available in 2-pole or 4-pole models
Surface-mount, panel-mount or octal plug-in mounting
Front terminals are “Easy-to-Reach” screw terminals, all on the face of the unit
Module assembly with timing head, coil assembly and switch-block are individual modules
| Attribute | Value |
|---|---|
| Time Range | 5 → 50 s |
| Mounting Type | Panel Mount |
| Current Maximum | 15 A |
| Terminal Type | Screw |
| Maximum Voltage | 125 V dc |
| Depth | 6.23in |
| Maximum Operating Temperature | +75°C |
| Switch Configuration | DPDT |
| Length | 2.57in |
| Minimum Operating Temperature | -30°C |
