Broyce Control ON Delay Single Timer Relay, Screw, 0.1 s 100 h, SPDT, 1 Contacts, SPDT, 12 230 V ac/dc

  • RS庫存編號 828-5155
  • 製造零件編號 LEDO 12-230V AC/DC
  • 製造商 Broyce Control
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): GB
產品詳細資訊

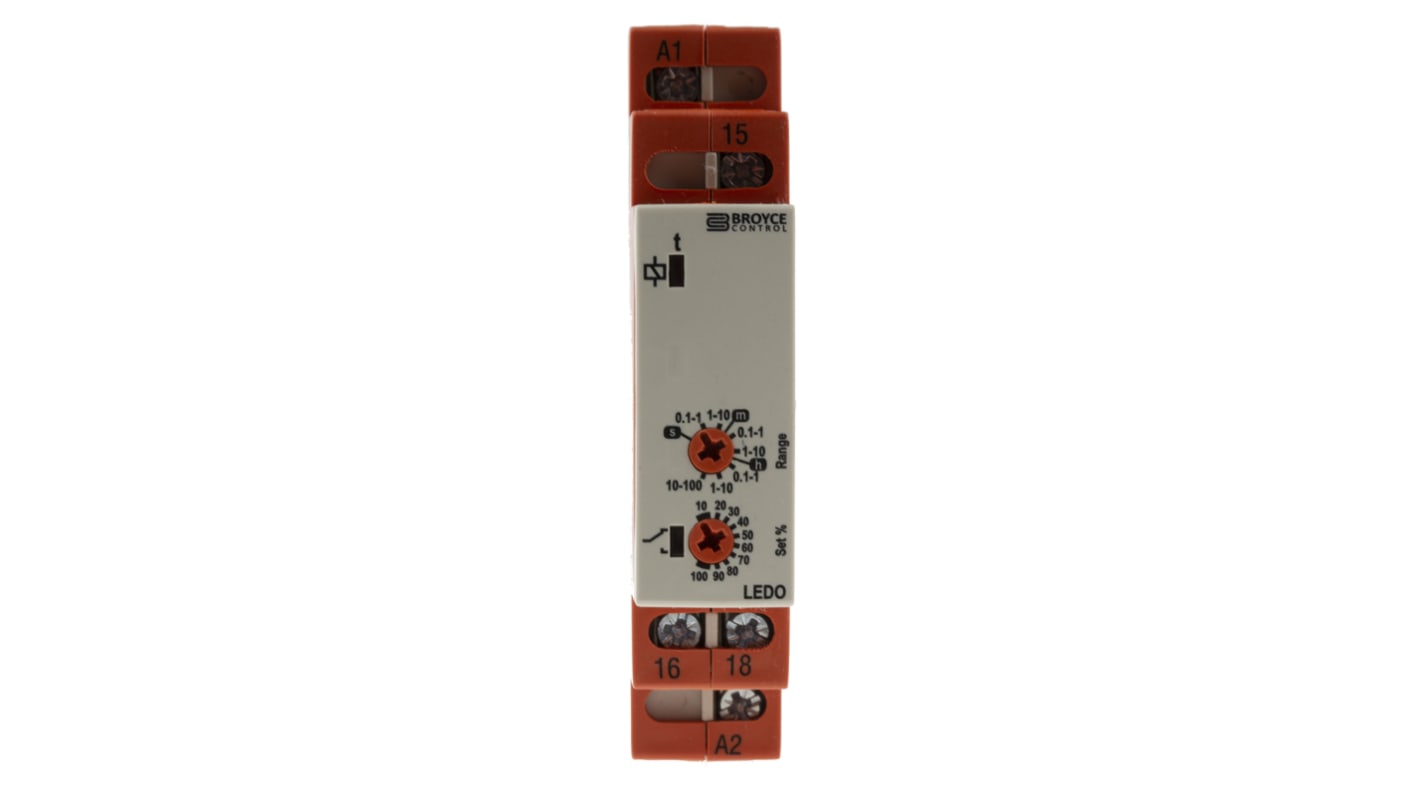

LEDO - ON Delay Timer Relay

Delay On Operate, Multi-voltage timer LEDO in a 17.5mm DIN rail housing.

Supply initiated Delay On Operate timing function 7 selectable time ranges
Fine adjustment of selected time range
Multi-voltage input
Green LED indication for supply and timing status
Red LED indication for relay status
17.5 mm width
DIN rail mounting

Approvals

UL Certification

Broyce Control Single-function Timer relay

The Broyce Control single-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs the function of providing ON operate delay with instantaneous contact in the range of 0.1 seconds to 100 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. For selecting the time delay range, there are two selectable rotary switches on the front of the unit. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments.

Features and Benefits

7 selectable time ranges in the range of 0.1s to 100h like 0.1s to 1s, 0.1min to 1min, 0.1h to 1h, 1s to 10s, 1min to 10min, 1h to 10h and 10h to 100h 1 SPDT configuration relay output of 8A Supply voltage range is 12VAC to 230VAC and 12VDC to 230VDC 17.5mm housing Mounting type is DIN rail Fine adjustment of the selected time range Green LED indication for supply and timing status Red LED indication for relay status

Applications

Textiles Chemical industry Mining Irrigation Raw material handling Food and beverages Industrial process control

Certifications

UL approved CE certified C-tick certified EN 61000-6-2 EN 61000-4-3 EN 61000-6-4 IEC 61812 cULus approved ISO 9001 IP20 rated (Terminal protection)

規格
Attribute Value
Supply Voltage 12 230 V ac/dc
Time Range 0.1 s 100 h
Mode of Operation ON Delay
Mounting Type DIN Rail
Number of Timer Functions Single
Number of Contacts 1
Time Increment Hours, Minutes, Seconds
Power Supply External
Contact Configuration SPDT
Current Maximum 8 A
Terminal Type Screw
Minimum Voltage 12 V ac/dc
Maximum Voltage 265 V ac/dc
Maximum Operating Temperature +60°C
Switch Configuration SPDT
Minimum Operating Temperature -20°C
Time Delay 100 (Reset) ms
Depth 66.5mm
Length 89mm
Width 17.5mm
