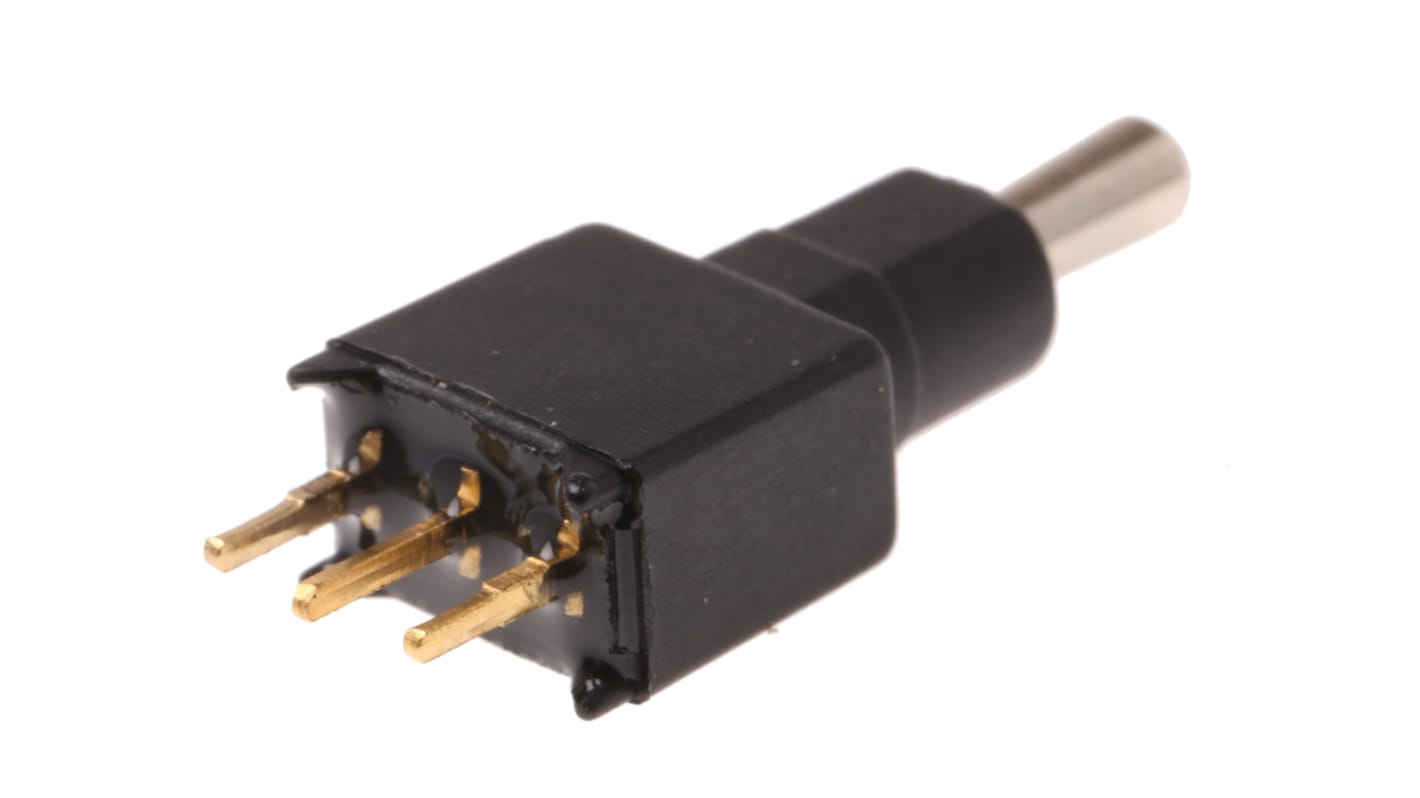

APEM Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal
- RS庫存編號:
- 664-216
- 製造零件編號:
- TL39P0050
- 製造商:
- APEM
163 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$49.35
| 單位 | Per unit |
| 1 - 49 | HK$49.35 |
| 50 - 99 | HK$47.87 |
| 100 - 249 | HK$46.38 |
| 250 - 499 | HK$45.40 |
| 500 + | HK$44.40 |
- RS庫存編號:
- 664-216
- 製造零件編號:
- TL39P0050
- 製造商:
- APEM
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Toggle Switches, Ultra-Min, Washable
Vertical and two types of right angle terminations available
Suitable for low level switching applications
Totally sealed, suitable for immersion cleaning
Wave solderable, will withstand 260°C for 5 seconds
Gold plated brass terminals
Brass actuator and PBT case
Minimum load current: 10mA at 50mV - 10μA at 5Vdc
Number of operations: 60000 (2 pos), 30000 (3 pos)
Suitable for low level switching applications
Totally sealed, suitable for immersion cleaning
Wave solderable, will withstand 260°C for 5 seconds
Gold plated brass terminals
Brass actuator and PBT case
Minimum load current: 10mA at 50mV - 10μA at 5Vdc
Number of operations: 60000 (2 pos), 30000 (3 pos)
Note
For biased switches '(on)' refers to momentary 'on' position.
規格
Attribute | Value |
|---|---|
| Contact Configuration | SP |
| Switch Operation | On-Off-On |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Actuator Length | 5.3mm |
| Actuator Material | Brass |
| Contact Material | Gold Plated Brass |
| Contact Resistance | 0.02Ω |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
