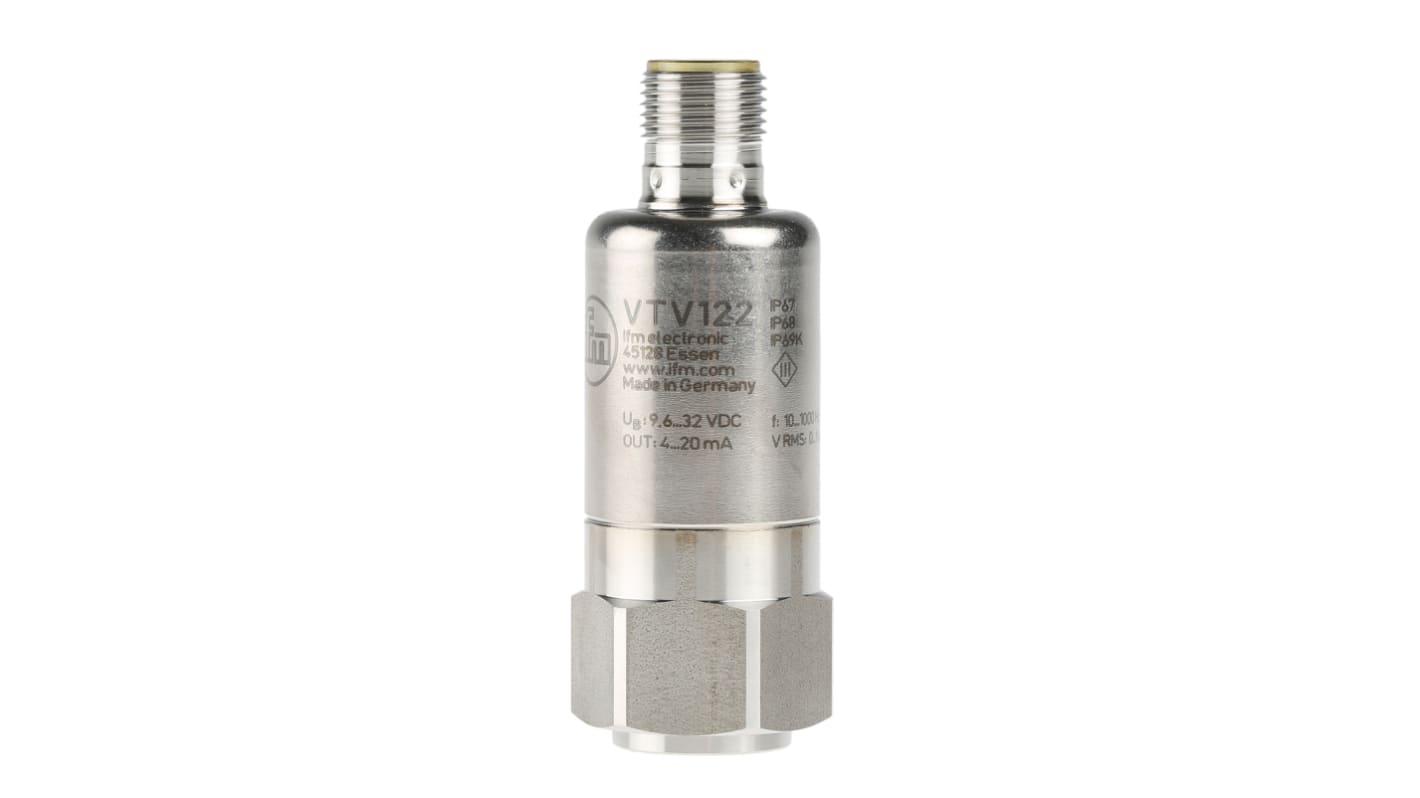

ifm electronic Vibration Sensor, 25mm/s Max, 20 mA Max, 32V Max, -30°C → +125°C
- RS庫存編號:
- 123-8754
- 製造零件編號:
- VTV122
- 製造商:
- ifm electronic
- RS庫存編號:
- 123-8754
- 製造零件編號:
- VTV122
- 製造商:
- ifm electronic
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
VTV Series Vibration switches
Ifm electronic VTV series vibration transmitters monitor machinery and equipment according to ISO 10816. The robust design, high IP Rating and high temperature rating are suitable for use in harsh environments. The VTV sensors measure the true RMS velocity of non-rotating component surfaces, values are then transmitted as an analogue signal (4...20 mA) directly to the PLC.
Continuous vibration monitoring according to ISO 10816
2-wire loop powered
4...20 mA signal output
True RMS monitoring of the overall velocity
Robust metal housing provides high protection rating.
M12 connector
2-wire loop powered
4...20 mA signal output
True RMS monitoring of the overall velocity
Robust metal housing provides high protection rating.
M12 connector
ifm electronic Vibration Senors
規格
Attribute | Value |
|---|---|
| Maximum Shock / Vibration | 25mm/s |
| Maximum Current | 20 mA |
| Maximum DC Voltage | 32V |
| Contact Resistance | 720Ω |
| Width | 22 (Dia.)mm |
| Depth | 63.25mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +125°C |
| Dimensions | 22 (Dia.) x 63.25 mm |
