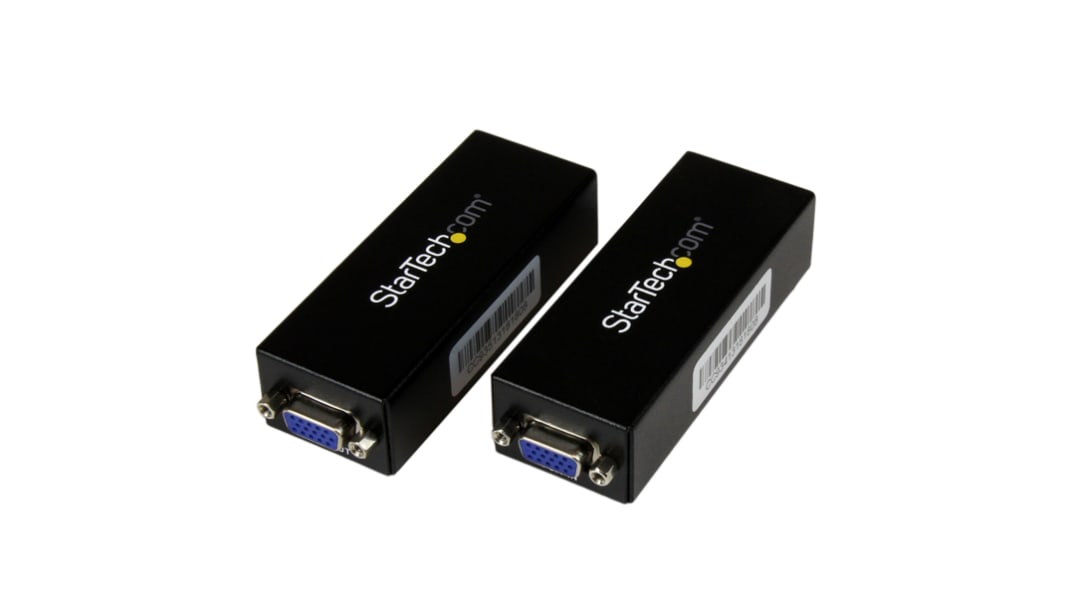

Startech VGA over CATx Extender Pair

  • RS庫存編號 898-8428
  • 製造零件編號 ST121UTPEP
  • 製造商 Startech
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

ST121UTPEP VGA Over Cat5 Extender

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Extends video signal by up to 250 ft. (80m)
• Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
• Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
• Mounting bracket included
• Single power adapter can be connected at local or remote end of the extension
• Uses standard Cat 5 or better cabling
• Kit consists of 1 Base unit and 1 Remote unit
• Pure hardware design - no software or drivers required
• The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.
• Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
• Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

Applications

• Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
• Ideal for digital signage applications in financial, educational, and business sectors
• Extend your display across harsh environment industrial sites
• Perfect for video conferencing solutions in boardrooms and office settings
• Optimize placement of your demo stations at tradeshows and in auditoriums

What’s in the package?

• VGA over Cat5 Transmitter
• VGA over Cat5 Receiver
• Installation Bracket (w/ screws)
• VGA Cable
• Universal Power Adapter (NA/UK/EU/AUS)
• Instruction Manual

FAQs

Can I route my network cables through a router or switch?

No, this device is designed to be a point-to-point solution using networking cabling only.

VGA Extender

規格
Attribute Value
Type Extender Pair
Video Connection Type VGA
Number of Video Ports 1
Transmission Method CATx
Maximum Resolution 1920 x 1200
Extension Distance 80m
Local Device Dimensions 138 x 100 x 25mm
Local Device Weight 36g
Remote Device Dimensions 138 x 100 x 25mm
Remote Device Weight 36g
Local Device Depth 100mm
Local Device Height 25mm
Local Device Width 138
Remote Device Depth 100mm
Remote Device Width 138mm
Remote Device Height 25mm
9 現貨庫存,可於3工作日發貨。
單價 個
HK$ 1,748.96
(不含稅)
單位
Per unit
1 +
HK$1,748.96
