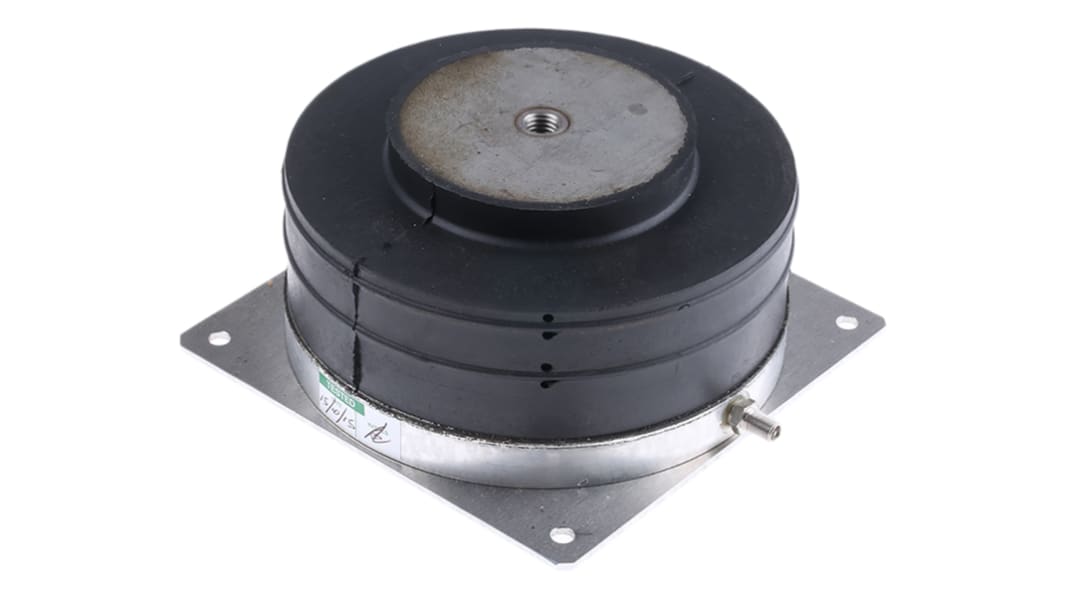

Fabreeka M12 Anti Vibration Mount
- RS庫存編號:
- 442-482
- 製造零件編號:
- PLM 12
- 製造商:
- Fabreeka
查看所有Anti Vibration Mounts
- RS庫存編號:
- 442-482
- 製造零件編號:
- PLM 12
- 製造商:
- Fabreeka
不適用
法例與合規
不適用
產品詳細資訊
Pneumatic Mounts
Low profile, low frequency, adjustable air mounts for use in areas where high vibration isolation is required
Provides high deflection and excellent stability without the use of lateral restraints
Natural frequency: 3Hz to 5Hz, operating temperature: -40°C to + 83°C
No external housings or snubbers required
Standard type valve for pressurisation
Easily adjustable to ±6mm when operated within nominal loads and pressures
Provides high deflection and excellent stability without the use of lateral restraints
Natural frequency: 3Hz to 5Hz, operating temperature: -40°C to + 83°C
No external housings or snubbers required
Standard type valve for pressurisation
Easily adjustable to ±6mm when operated within nominal loads and pressures
規格
| Attribute | Value |
| Thread Size | M12 |
| Diameter | 171mm |
| Overall Height | 90mm |
| Static Load Capacity | 545kg |
| Maximum Operating Temperature | +83°C |
| Minimum Operating Temperature | -40°C |
