Name: Teledyne LeCroy Arbitrary Waveform Generator, 60MHz Max, 2-Channel, 10 MHz Min
Brand: Teledyne LeCroy
SKU: 218-3784
Price: 13607.00 HKD
Availability: Discontinued

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Teledyne LeCroy
	Maximum Frequency	60MHz
	Minimum Frequency	10 MHz
	Maximum Frequency Triangle Ramps	500kHz
	Number of Channels	2
	Minimum Frequency Triangle Ramps	1µHz
	Maximum Sampling Frequency	150Msps
	Arbitrary Waveforms	Yes
	Width	260.3mm
	Weight	3.43 Kg
	Connector Type	USB, LAN
	Height	295.7mm
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	40°C
	Display Type	TFT LCD
	Length	107.2mm

	選取全部
	品牌 Teledyne LeCroy
	Maximum Frequency 60MHz
	Minimum Frequency 10 MHz
	Maximum Frequency Triangle Ramps 500kHz
	Number of Channels 2
	Minimum Frequency Triangle Ramps 1µHz
	Maximum Sampling Frequency 150Msps
	Arbitrary Waveforms Yes
	Width 260.3mm
	Weight 3.43 Kg
	Connector Type USB, LAN
	Height 295.7mm
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 40°C
	Display Type TFT LCD
	Length 107.2mm

Datasheet - T3AFG60

COO (Country of Origin):: CN

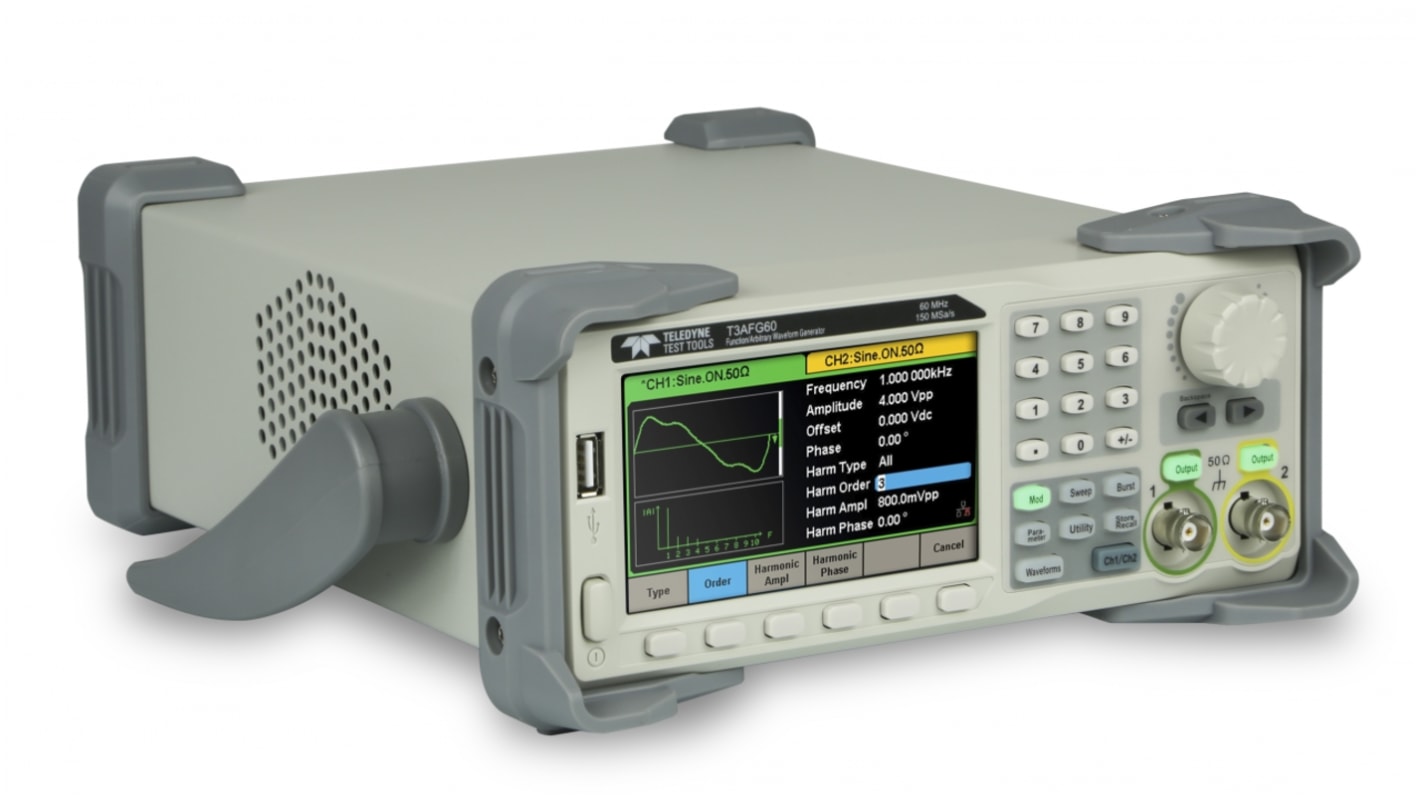

Teledyne LeCroy T3AFG60 Waveform Generator 60 MHz

The Teledyne LeCroy T3AFG60 function/arbitrary generator is a dual-channel waveform generator with a maximum frequency of 60 MHz, 150MSa/s maximum sampling rate and 14-bit vertical resolution.

Deep Memory - 16 kpts per channel
Wide Range of Modulation Types - AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst and PSK
High Resolution - 14 Bits
Built in Arbitrary Waveforms
User Defined Waveforms

Teledyne LeCroy Arbitrary Waveform Generator, 60MHz Max, 2-Channel, 10 MHz Min
