BK Precision BK4052 4052 Arbitrary Waveform Generator 5MHz

  • RS庫存編號 878-2139
  • 製造零件編號 BK4052
  • 製造商 BK Precision
產品概覽和技術數據資料表
法例與合規
不相容
COO (Country of Origin): CH
產品詳細資訊

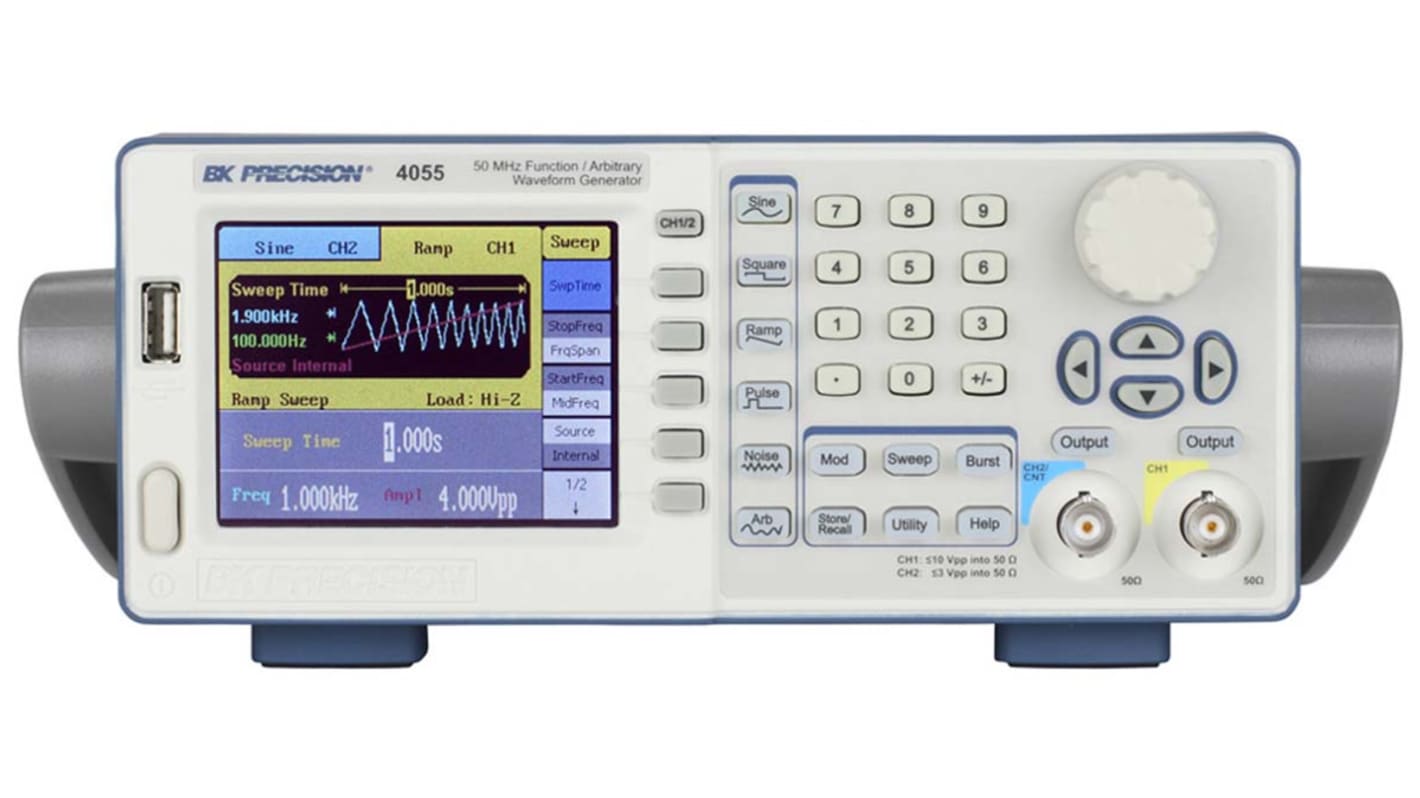

B&K Precision Series 4050 Dual Channel Function/Arbitrary Waveform Generators

B&K Precision Series 4050 dual channel function/arbitrary waveform generators generate stable and precise sine, square, triangle, pulse and arbitrary waveforms. They have easy-to-read colour displays and an intuitive user interface, with numeric keypad. Features include linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset and a high performance 14-bit, 125 MSa/s arbitrary waveform generator. The main output voltage can be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit) and the secondary output can be varied from 0 to 3 Vpp into 50 ohms (up to 6 Vpp into open circuit).

14-bit, 125 MSa/s, 16k point arbitrary waveform generator
Large 3.5-inch LCD colour display with waveform preview
Linear and logarithmic sweep
AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
Variable DC offset
Adjustable duty cycle
Two independent channels with individual output On/Off buttons
Internal/external triggering
Gate and burst mode
48 built-in predefined arbitrary waveforms
Store/recall up to 10 instrument settings and 10 arbitrary waveforms
Built-in counter
USB device port (USBTMC-compliant) with front panel USB host port
SCPI-compliant command set
Short circuit protection on outputs

Supplied with

Getting started manual, full instruction manual on CD, AC power cord, USB type A-to-type B cable, certificate of calibration

規格
Attribute Value
Maximum Frequency 5MHz
Minimum Frequency 1 μHz
Maximum Frequency Triangle Ramps 300kHz
Minimum Frequency Triangle Ramps 1µHz
Maximum Sampling Frequency 125Msps
Resolution 4 Digit
Minimum Pulse Width 16ns
Arbitrary Waveforms Yes
Display Type TFT LCD (320 x 240)
Width 281mm
Inputs Modulation In
Connector Type BNC
Data Entry Keypad
Waveform Memory per Channel 16k points
Minimum Operating Temperature 0°C
Interface Type GPIB, USB
Dimensions 213 x 281 x 89mm
Maximum Operating Temperature +40°C
Maximum Storage 10
Model Number p 4052
Height 89mm
Rise - Fall Time 7ns
Sweep Linear, Logarithmic, Up or Down
Length 213mm
Weight 2.6kg
