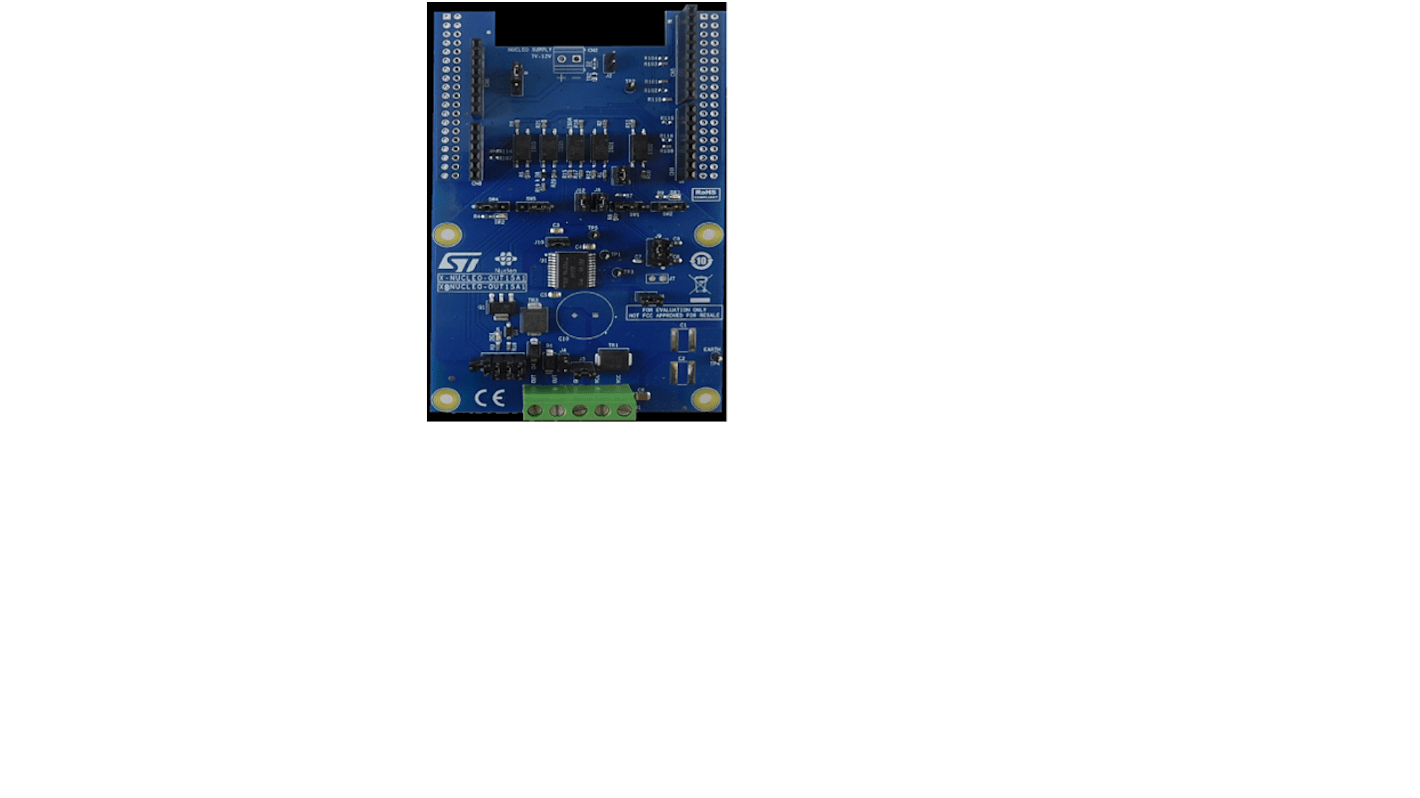

STMicroelectronics X-NUCLEO-OUT15A1 Expansion Board, Arduino Compatible Board

查看此類別
可享批量折扣

小計（1 件）*

HK$419.40

Add to Basket
選擇或輸入數量
有庫存
  • 85 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$419.40
5 - 9HK$411.00
10 +HK$402.90

* 參考價格

RS庫存編號:
248-7350
製造零件編號:
X-NUCLEO-OUT15A1
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Arduino Board Name

Arduino UNO R3

Product Name

X-NUCLEO-OUT15A1 Expansion Board

Kit Classification

Arduino Board

The STMicroelectronics industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1025HF single high-side, smart power, solid-state relay in a digital output module connected to 2.5 A industrial loads. The X-NUCLEO-OUT15A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by the GPIO pins and Arduino® UNO R3 connectors. The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

Application board operating range: 8-33 V/0-2.5 A
Extended voltage operating range (J3 open) up to 60 V
Green LED for output on/off status (J11 close 3-4 and SW5 close 1-2)
Red LEDs for overload and overheating diagnostics (SW2 and SW4 close 2-3)
Output voltage on/off status feedback (J11 close 1-2)
Control signal for fast discharge of output voltage (J11 close 5-6, J12 close)
External fast discharge circuitry for huge inductive loads (J11 close 7-8)
5 kV galvanic isolation
Supply rail reverse polarity protection
Compatible with STM32 Nucleo development boards
Equipped with Arduino® UNO R3 connectors
