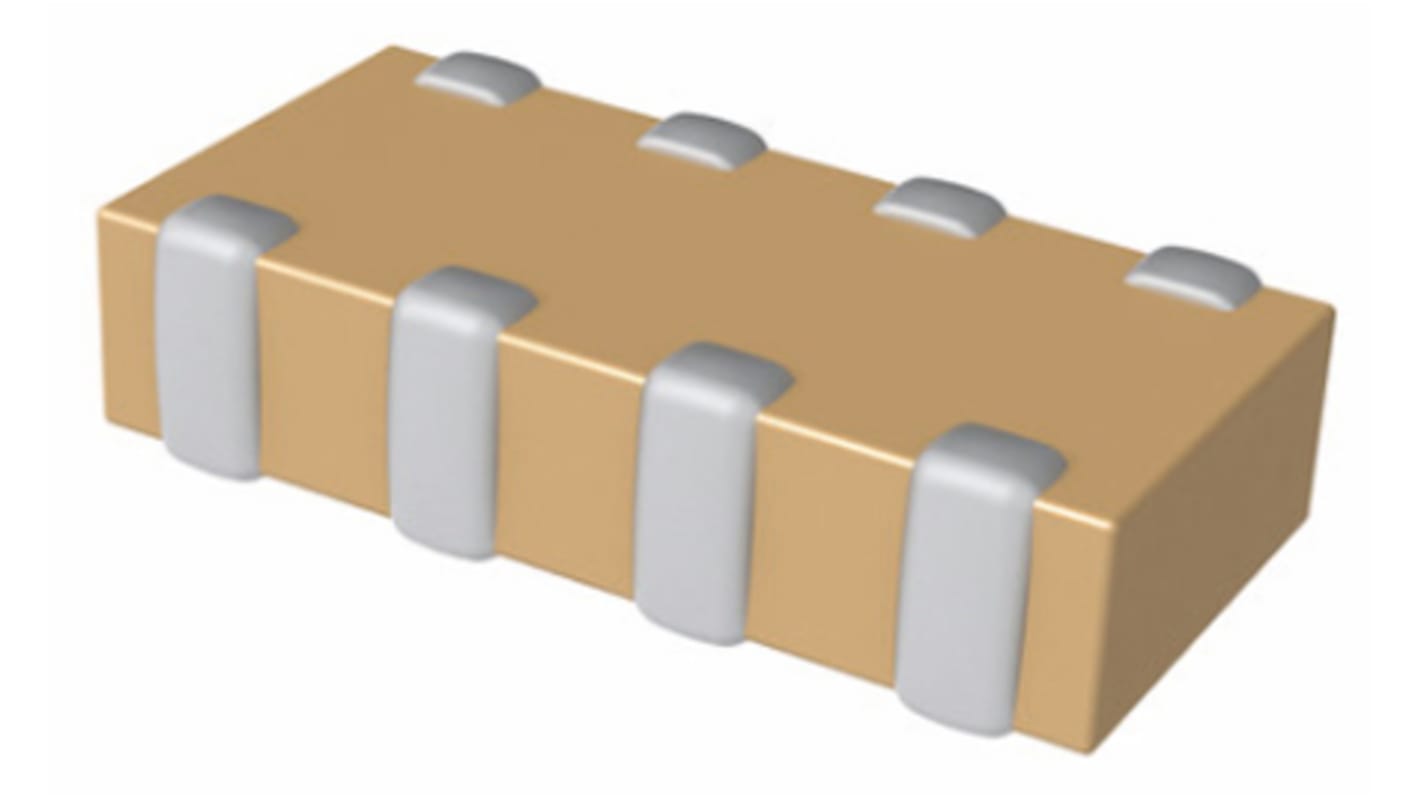

KEMET Capacitor Array 3.3nF 200V dc ±10% 4-way X7R Dielectric 0612 (1632M) Package CA064 Series Surface Mount
- RS庫存編號 124-1230
- 製造零件編號 CA064X332K2RACTU
- 製造商 KEMET
KEMET MLCC Array CA064 Series
KEMET Ceramic Chip Capacitor Array technology promotes reduced placement costs and throughput. The use of capacitor arrays saves board space which translates into more functions per board. These X7R dielectric Arrays feature a 125° maximum operating temperature.
X7R MLCC Exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance regarding ambient temperature. Capacitance change is limited to ±15% from -55°C to +125°C.Applications include those that can benefit from board saving areas such as telecommunications, computers, hand held devices and automotive.
Features
Superior flex performance (up to 5 mm)
-55°C to +125°C operating temperature range
Available capacitance tolerances of ±5%, ±10%, and ±20%
Saves both circuit board and inventory space
100% pure matte tin-plated termination finish allowing for excellent solderability
Standards
AEC–Q200
Network and Feed-through
| Attribute | Value |
|---|---|
| Capacitance | 3.3 nF |
| Series | CA064 |
| Tolerance | ±10% |
| Voltage | 200 V dc |
| Mounting Type | Surface Mount |
| Number of Capacitors | 4 |
| Dielectric | X7R |
| Package/Case | 0612 (1632M) |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Tolerance Minus | -10% |
| Tolerance Plus | +10% |
