Through Hole Audio Transformer 10kΩ
- RS庫存編號:
- 123-7201
- 製造零件編號:
- A187A13C
- 製造商:
- OEP
- RS庫存編號:
- 123-7201
- 製造零件編號:
- A187A13C
- 製造商:
- OEP
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

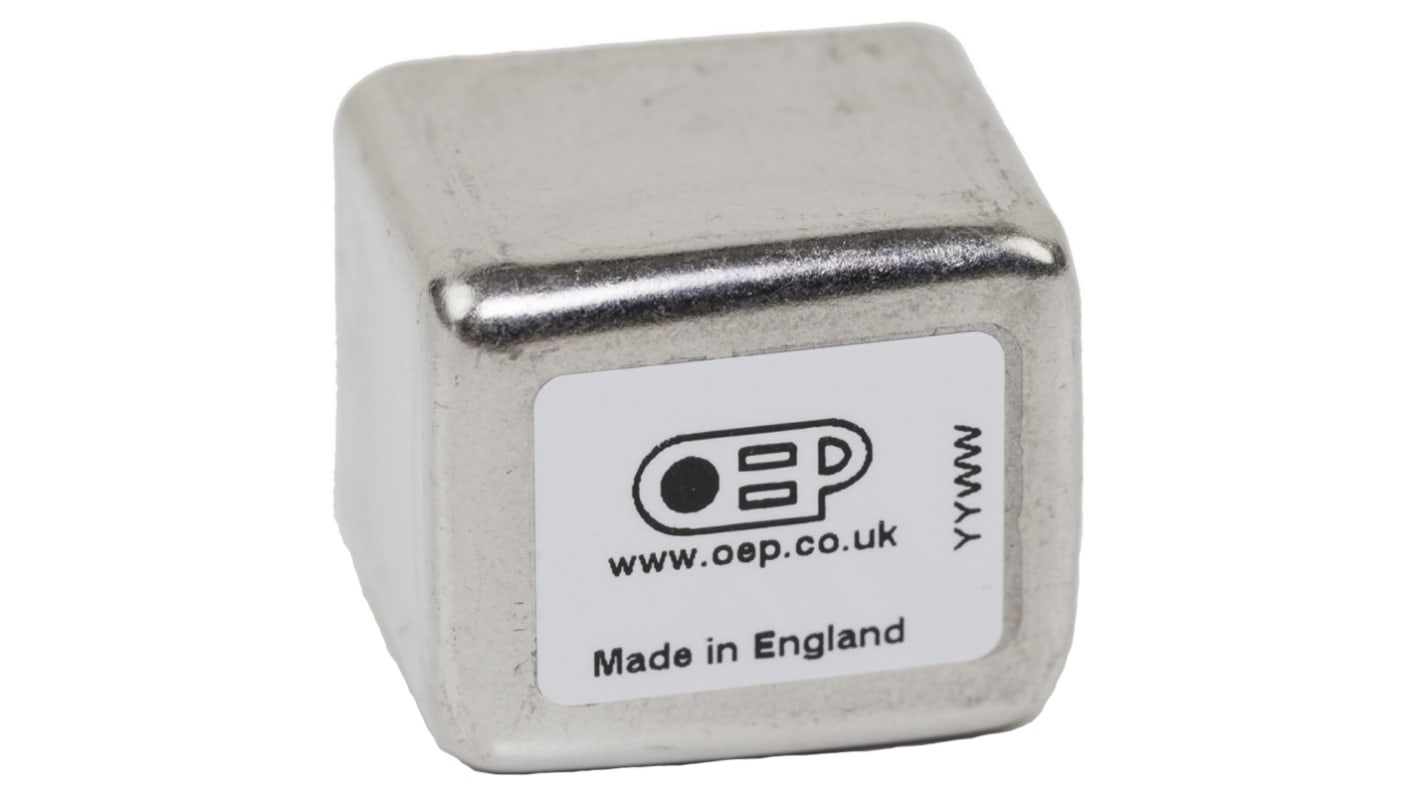

OEP A187A13C Line Input Transformers
A187A13 audio input transformers from OEP feature multiple electrostatic and magnetic fields and provide galvanic isolation. These audio transformers are ideal for bridging input applications and are constructed with a multi-layered winding that enables improved coupling. These audio transformers are encapsulated in a mumetal core that offers shielding and allows for low harmonic distortion.
For 10 k to 10 k, link primary 1 and primary 2 in parallel
25 H typical inductance at 1 kHz, 0.1 V
Leakage inductance of 12 mH at 1 kHz, 0.1 V
75 pF interwinding capacitance at 20 kHz
25 H typical inductance at 1 kHz, 0.1 V
Leakage inductance of 12 mH at 1 kHz, 0.1 V
75 pF interwinding capacitance at 20 kHz
Note
Do not pass DC through the windings.
規格
Attribute | Value |
|---|---|
| Primary Impedance | 10kΩ |
| Secondary Impedance | 10kΩ |
| Primary DC Resistance | 469 (Primary 1) Ω, 580 (Primary 2) Ω |
| Secondary DC Resistance | 591Ω |
| Dimensions | 29.4 x 25 x 24.2mm |
| Mounting Type | Through Hole |
| Termination Type | PC Pin |
| Weight | 56g |
| Depth | 24.2mm |
| Length | 29.4mm |
| Width | 25mm |
| Construction | Enclosed |
| Maximum Temperature | +70°C |
| Minimum Operating Frequency | 20Hz |
| Turns Ratio | 1+1:1 |
| Minimum Temperature | -20°C |
| Core Type | Laminated |
| Maximum Operating Frequency | 30kHz |
| Isolation Voltage | 250V |
