CS4272-CZZ, Audio Codec IC, 2-Channel, 28-Pin TSSOP
- RS庫存編號:
- 491-5681P
- 製造零件編號:
- CS4272-CZZ
- 製造商:
- Cirrus Logic

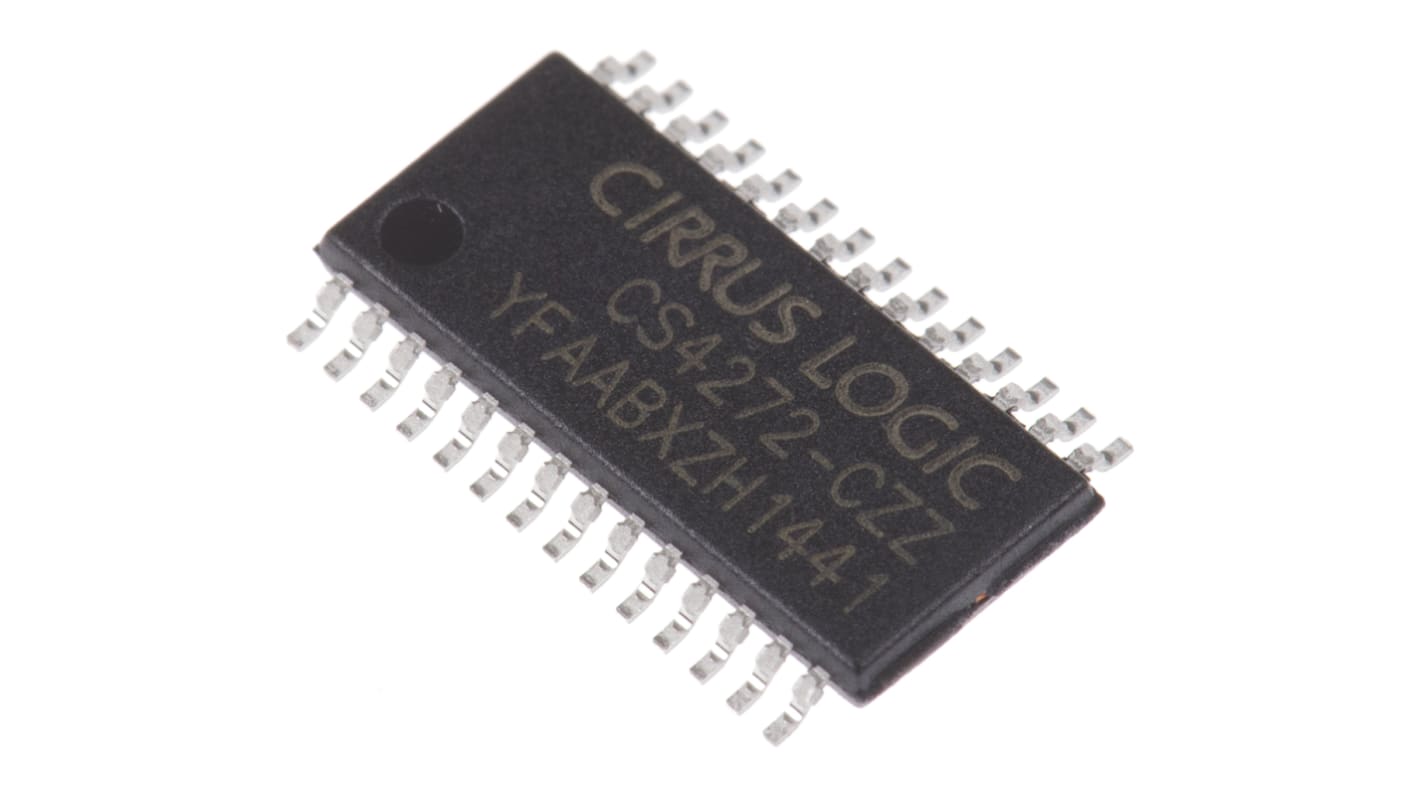

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 491-5681P
- 製造零件編號:
- CS4272-CZZ
- 製造商:
- Cirrus Logic
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Cirrus Logic | |
| IC Type | Audio Codec IC | |
| Number of Channels | Stereo | |
| Power Supply Type | Single | |
| Number of ADC Inputs | 2 | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Number of DAC Outputs | 2 | |
| Interface Type | Serial-I2S, Serial-SPI | |
| Pin Count | 28 | |
| Typical Operating Supply Voltage | 3.3 V, 5 V | |
| Number of DACs | 2 | |
| Dimensions | 9.7 x 4.4 x 0.9mm | |
| Sampling Rate | 192ksps | |
| ADC/DAC Resolution | 24bit | |
| Number of ADCs | 2 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | -10 °C | |
| 選取全部 | ||
|---|---|---|
品牌 Cirrus Logic | ||
IC Type Audio Codec IC | ||
Number of Channels Stereo | ||
Power Supply Type Single | ||
Number of ADC Inputs 2 | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Number of DAC Outputs 2 | ||
Interface Type Serial-I2S, Serial-SPI | ||
Pin Count 28 | ||
Typical Operating Supply Voltage 3.3 V, 5 V | ||
Number of DACs 2 | ||
Dimensions 9.7 x 4.4 x 0.9mm | ||
Sampling Rate 192ksps | ||
ADC/DAC Resolution 24bit | ||
Number of ADCs 2 | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature -10 °C | ||
Audio CODEC, Cirrus Logic
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Audio, Cirrus Logic
