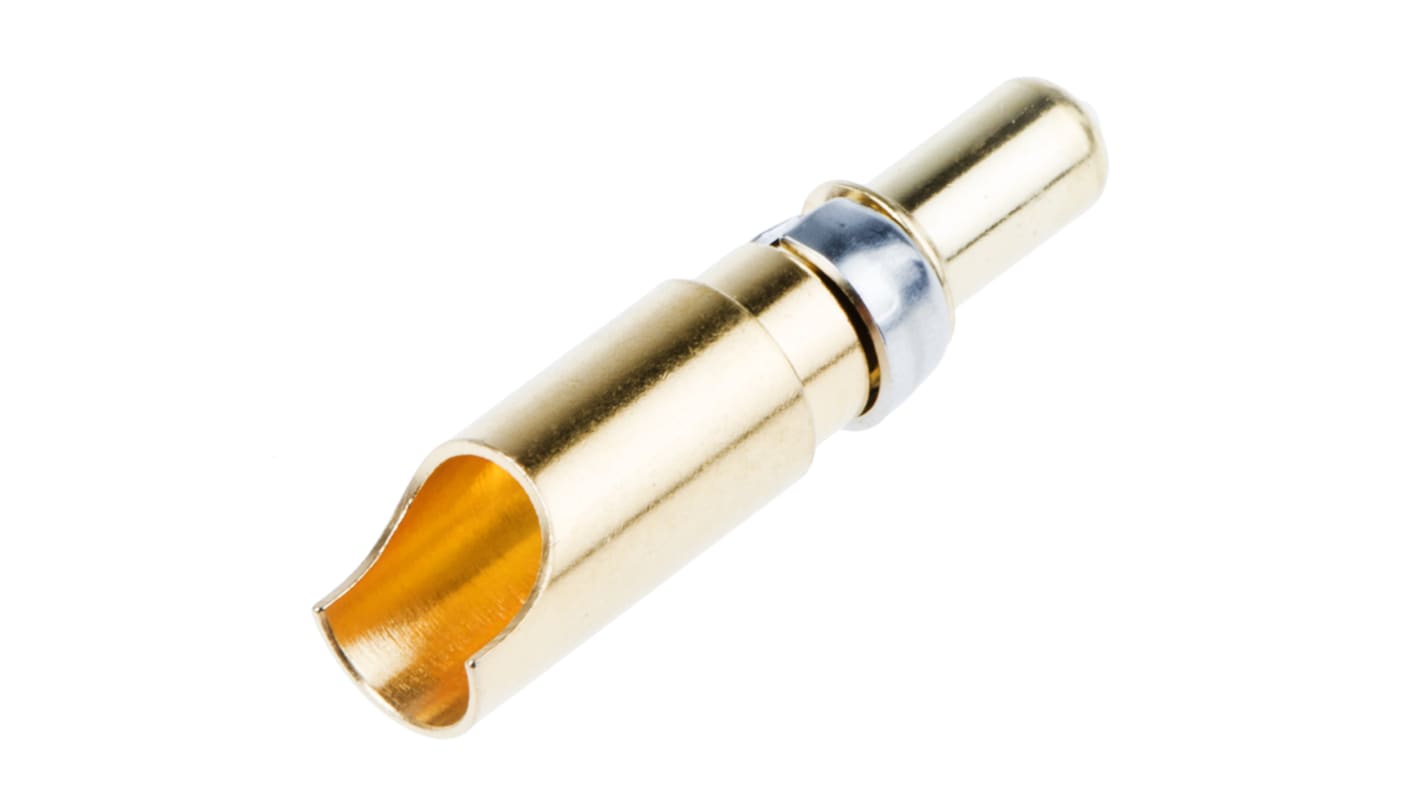

RS PRO , Straight , Male Gold , Copper Alloy , Backplane Connector Contact
- RS庫存編號:
- 301-6929
- 製造商:
- RS PRO
602 現貨庫存，可於3工作日發貨。
單價 个
HK$19.00
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$19.00 |
| 5 + | HK$15.60 |
- RS庫存編號:
- 301-6929
- 製造商:
- RS PRO
- COO (Country of Origin):
- DE
DIN 41612 M Contacts
Power plug and socket contacts in both solder bucket and 90° terminations rated up to 40A
Contact resistance <3mΩ
Gold plated class 1
50Ω coaxial contacts accept RG178B/U & RG174A/U (RG316) cables by crimp and solder terminations
75Ω coaxial contacts accept RG179 cables by crimp or solder terminations
Coaxial contact resist. <10mΩ centre, <3Ω outer
High voltage inserts contact resistance, outer conductor = <3 mΩ
Contact resistance <3mΩ
Gold plated class 1
50Ω coaxial contacts accept RG178B/U & RG174A/U (RG316) cables by crimp and solder terminations
75Ω coaxial contacts accept RG179 cables by crimp or solder terminations
Coaxial contact resist. <10mΩ centre, <3Ω outer
High voltage inserts contact resistance, outer conductor = <3 mΩ
DIN41612 - Mixed Contact Range
DIN 41612 / 41617 and module connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. The different connection variants include:
Connection between plug-in cards at right angle to backplane wiring
Connection between two parallel PCB's arranged one above the other
For front or rear I/O
Connection between two parallel PCB's arranged one above the other
For front or rear I/O
Attribute | Value |
|---|---|
| Series | DIN 41612 |
| Orientation | Straight |
| For Use With | DIN41612 Type M Male Connector |
| Gender | Male |
| Contact Plating | Gold |
| Maximum Contact Resistance | 1.0mΩ |
| Contact Material | Copper Alloy |
| Current Rating | 40.0A |
| Mounting Type | Cable Mount |
| Maximum Operating Temperature | 125.0°C |
| Minimum Operating Temperature | -55.0°C |
