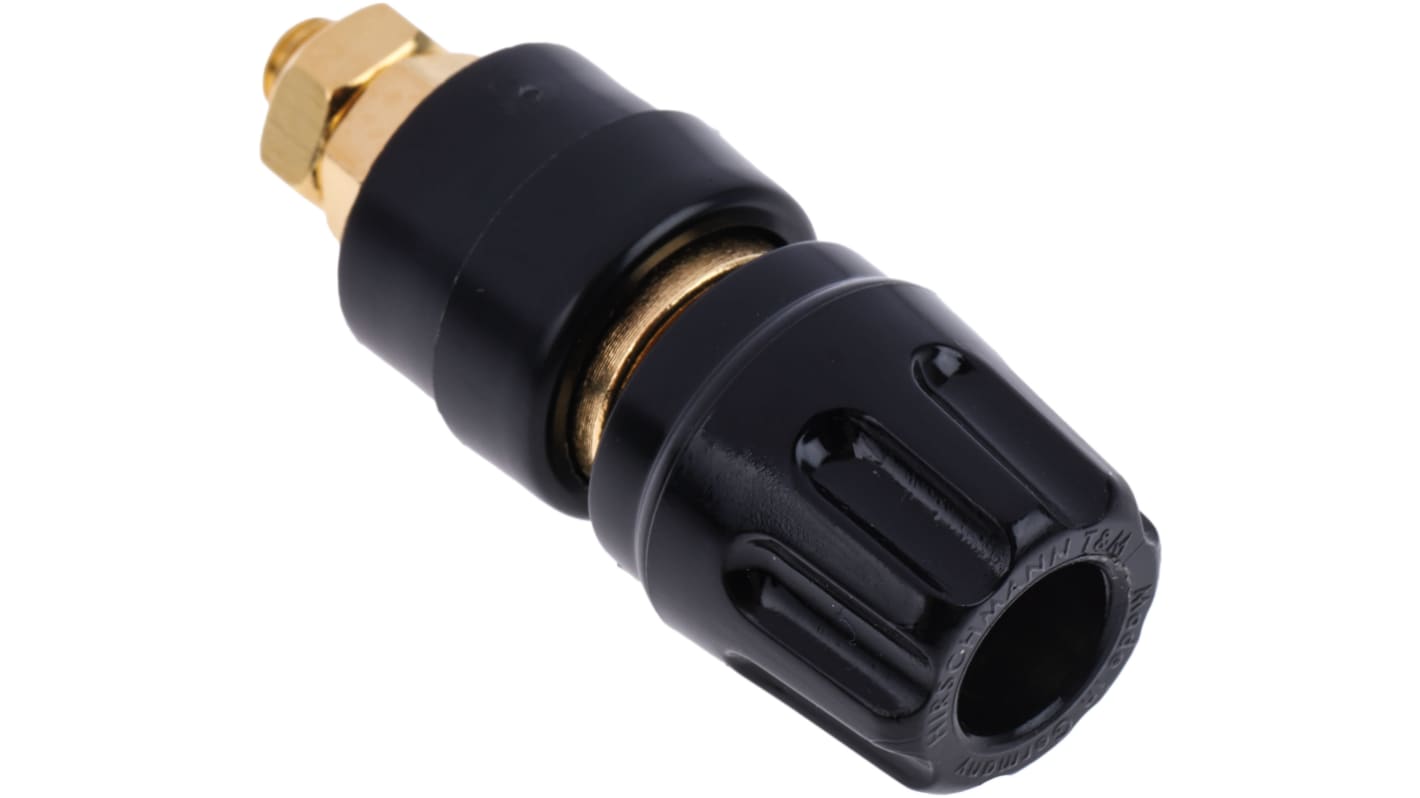

Hirschmann Test & Measurement 35A, Black Binding Post With Brass Contacts and Gold Plated - 8mm Hole Diameter
- RS庫存編號:
- 190-2687
- 製造零件編號:
- 930103700
- 製造商:
- Hirschmann Test & Measurement
200 現貨庫存，可於3工作日發貨。
已增加
單價 个 (以毎盒：100)
HK$74.99
| 單位 | Per unit | Per Box* |
| 100 - 100 | HK$74.99 | HK$7,499.00 |
| 200 - 300 | HK$73.115 | HK$7,311.50 |
| 400 + | HK$71.99 | HK$7,199.00 |
| * 參考價格 | ||
- RS庫存編號:
- 190-2687
- 製造零件編號:
- 930103700
- 製造商:
- Hirschmann Test & Measurement
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
PKI 10 A Au, CAT I 4mm Chassis Mount Test Socket
Hirschmann Test and Measurementt PKI 10 A Au, CAT I 4mm gold plated chassis mount test sockets with pole clamp-claw edge and a captive insulated head and insulated ring, 2mm cross hole and M4 termination thread. These PKI 10 A Au series 4mm test sockets are ideally suited for insulated, non-rotating installation in equipment chassis and switch panels with a wall thicknesses of up to 2mm.
Rated voltage 30 VAC/ 60 VDC
Rated Current 35A
CAT I
Screw mounting
M4 Termination Thread
Rated Current 35A
CAT I
Screw mounting
M4 Termination Thread
規格
Attribute | Value |
|---|---|
| Colour | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 35A |
| Voltage Rating | 30 V ac, 60 V dc |
| Gender | Female |
| Maximum Panel Thickness | 2mm |
| Hole Diameter | 8mm |
