暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 261-0008
- 製造零件編號:
- ENW89858A1KF
- 製造商:
- Panasonic
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Panasonic | |
| Product Type | Development Kit | |
| Bluetooth Class | Class 2 | |
| Bluetooth Version | 5.1 | |
| Maximum Output Power | 8dBm | |
| Data Rate | 125kbps | |
| Receiver Sensitivity | -96dBm | |
| Frequency | 2.48MHz | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | PAN1782 | |
| Height | 2mm | |
| Length | 15.6mm | |
| Width | 8.7 mm | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 Panasonic | ||
Product Type Development Kit | ||
Bluetooth Class Class 2 | ||
Bluetooth Version 5.1 | ||
Maximum Output Power 8dBm | ||
Data Rate 125kbps | ||
Receiver Sensitivity -96dBm | ||
Frequency 2.48MHz | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series PAN1782 | ||
Height 2mm | ||
Length 15.6mm | ||
Width 8.7 mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- SK

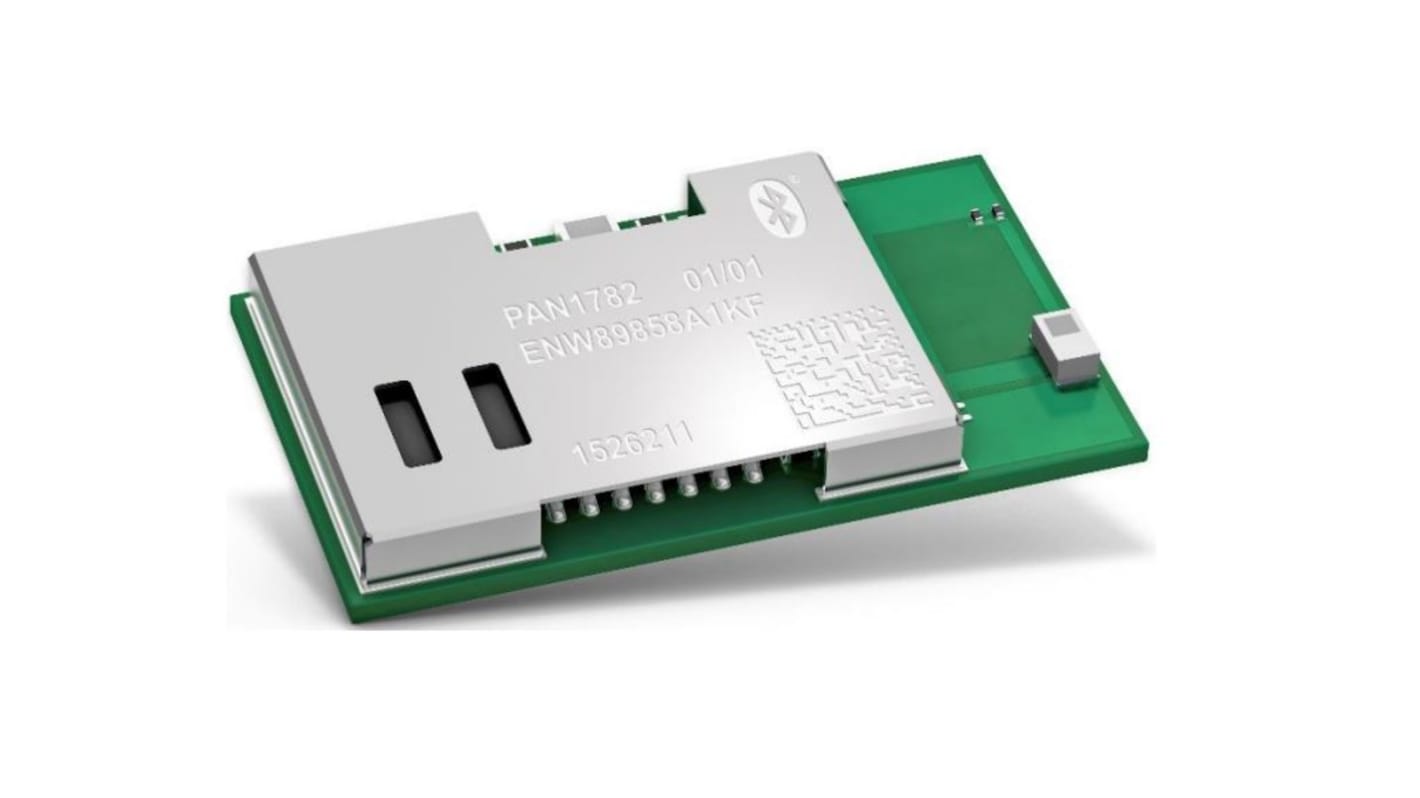

The Panasonic Bluetooth, 5.1 low energy module is based on the Nordic nRF52833 single-chip controller. The Bluetooth 5 feature enables a higher symbol rate of 2 Mbps using the high-speed LE 2M PHY.
Nordik connect software
Ceramic antenna
512kB flash and 128kB RAM memory
