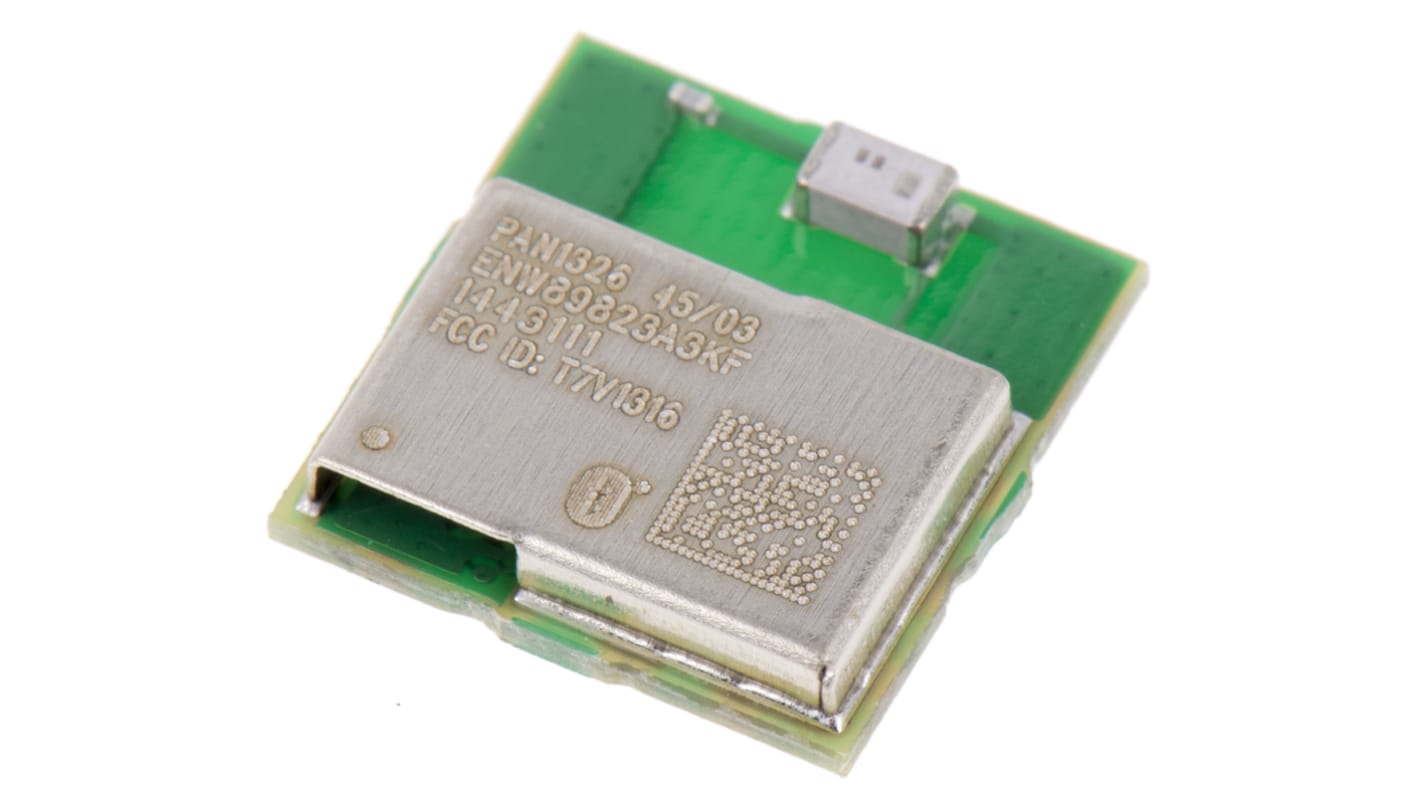

Panasonic PAN1326B-HCI-85 Bluetooth Chip 4.0

  • RS庫存編號 828-9024
  • 製造零件編號 PAN1326B-HCI-85
  • 製造商 Panasonic
產品概覽和技術數據資料表
法例與合規
相容
產品詳細資訊

PAN1316/26 Dual Mode v4.0 Bluetooth® EDR HCI Module, Panasonic

The PAN1316/1326 series from Panasonic are Host Controlled Interface (HCI) Dual Mode Bluetooth modules with Enhanced Data Rate (EDR) featuring both Bluetooth Low Energy and Bluetooth Classic connectivity. These modules contain the seventh generation CC2564 Bluetooth core integrated circuit from Texas Instruments incorporated into an easy to use module format. The PAN1316/26 range is 100% pin compatible with the PAN1315/1325 series.

Features

Certifications: Bluetooth, FCC, IC and CE
Dimensions: PAN1326 with antenna 9.0 x 9.5 x 1.8 mm, PAN1316 without antenna 9.0 x 6.5 x 1.7 mm
Operating Temperature Range: -20°C to +70°C
Supply Voltage Range: 1.7 - 4.8V
Texas Instruments’ CC2564 7th generation dual mode Bluetooth controller inside
Integrates with TI's low-power MSP430 microprocessor
Profiles: Serial Port Profile (SPP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP) and others
Very fast algorithm for both Asynchronous Connection-Less (ACL) and Extended Synchronous Connections (eSCO)
Supports Extended Range Tx power with 10dBm typical output
Low power scan method for page and inquiry scans at 1/3rd normal power
UART rates of up to 4Mbps
Three and four Wire UART transport

Bluetooth - Panasonic

規格
Attribute Value
Bluetooth Version 4.0
Maximum Output Power +10dBm
Receiver Sensitivity -93dBm
Supported I/O Interfaces GPIO, PCM, UART
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
390 現貨庫存,可於3工作日發貨。
單價 個
HK$ 86.52
(不含稅)
單位
Per unit
1 +
HK$86.52
包裝方式:
