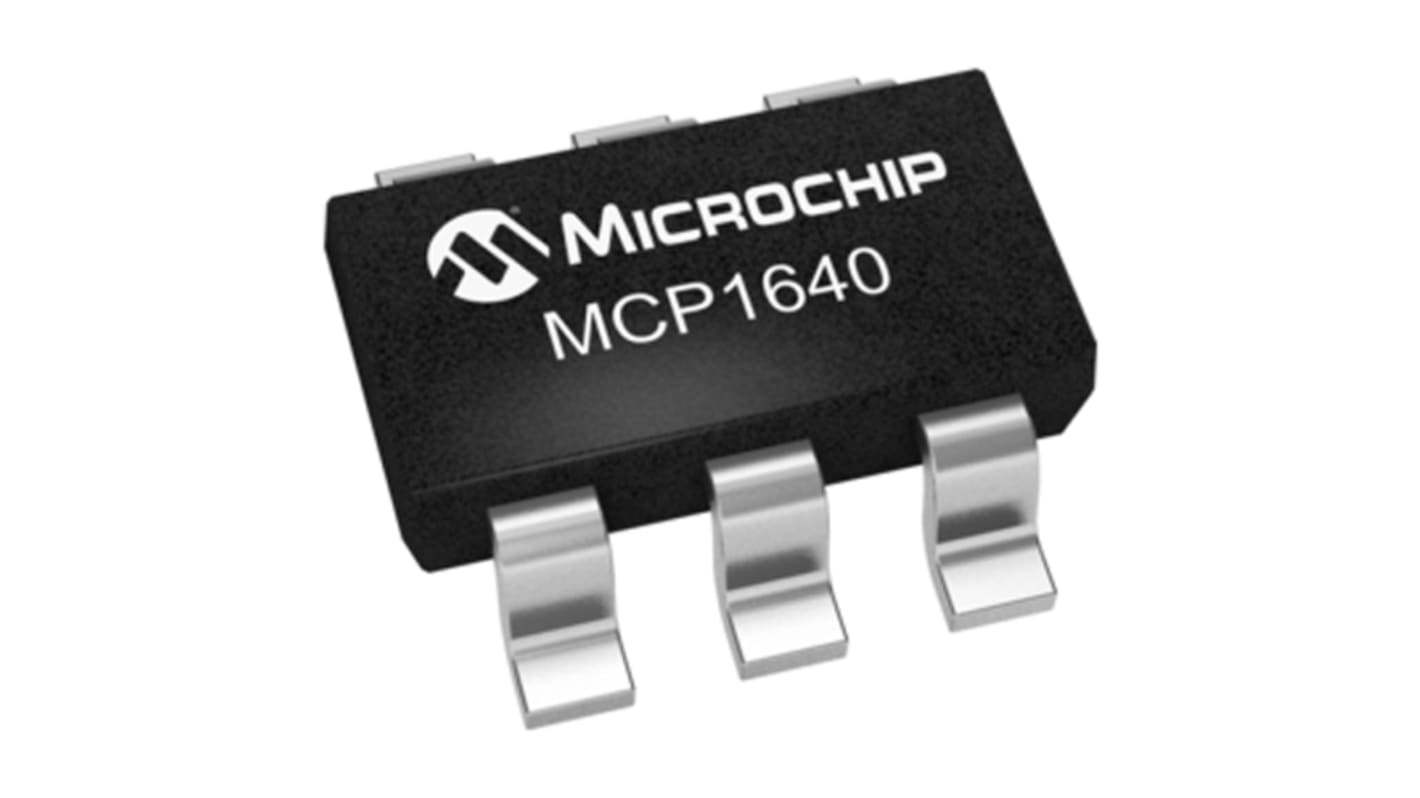

Microchip MCP1640BT-I/CHY, Boost Regulator, Step Up 350mA Adjustable, 575 kHz 6-Pin, SOT-23
- RS庫存編號:
- 738-6250P
- 製造零件編號:
- MCP1640BT-I/CHY
- 製造商:
- Microchip
可享批量折扣
Price 个 (以每卷裝提供)**
HK$5.70
7070 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 750 - 1495 | HK$5.70 |
| 1500 + | HK$5.62 |
** 參考價格
- RS庫存編號:
- 738-6250P
- 製造零件編號:
- MCP1640BT-I/CHY
- 製造商:
- Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Regulator Function | Step Up | |
| Maximum Output Current | 350mA | |
| Maximum Input Voltage | 5.5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 1 %/V | |
| Load Regulation | 1 % | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 6 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 575 kHz | |
| Switching Regulator | Yes | |
| Efficiency | 96% | |
| Dimensions | 3.1 x 1.8 x 1.3mm | |
| Maximum Output Voltage | 5.5 V | |
| Height | 1.3mm | |
| Minimum Output Voltage | 2 V | |
| Width | 1.8mm | |
| Length | 3.1mm | |
| Minimum Input Voltage | 0.65 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
