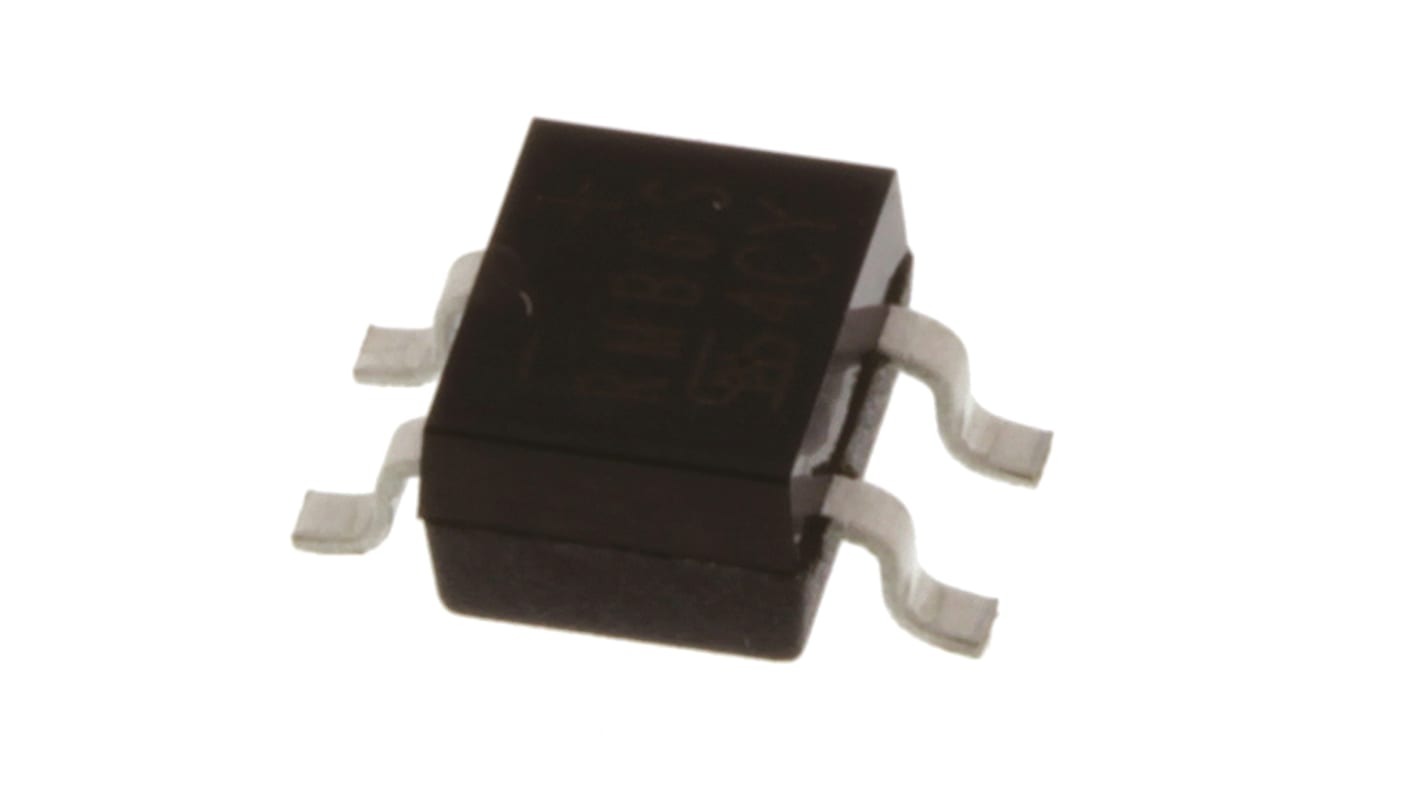

Taiwan Semiconductor Bridge Rectifier, 800mA, 600V, 4-Pin
- RS庫存編號:
- 687-5920
- 製造零件編號:
- RMB6S
- 製造商:
- Taiwan Semiconductor
40 現貨庫存，可於3工作日發貨。
已增加
單價 个（每托盘 20 ）
HK$4.049
| 單位 | Per unit | Per Pack* |
| 20 - 740 | HK$4.049 | HK$80.98 |
| 760 - 1480 | HK$3.947 | HK$78.94 |
| 1500 + | HK$3.887 | HK$77.74 |
| * 參考價格 | ||
- RS庫存編號:
- 687-5920
- 製造零件編號:
- RMB6S
- 製造商:
- Taiwan Semiconductor
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Bridge Rectifiers for PCB Surface Mount, RMBxS Series, Taiwan Semiconductor
Miniature glass passivated chip junction
Fast reverse recovery time
Small size, surface mount, easy installation
Ideal for Printed Circuit Board (PCB) reflow soldering
Fast reverse recovery time
Small size, surface mount, easy installation
Ideal for Printed Circuit Board (PCB) reflow soldering
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - Taiwan Semiconductor
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
規格
Attribute | Value |
|---|---|
| Peak Average Forward Current | 800mA |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Surface Mount |
| Package Type | MBS |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 30A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 5µA |
| Dimensions | 4.9 x 4 x 2.7mm |
| Length | 4.9mm |
| Width | 4mm |
| Height | 2.7mm |
