產品詳細資訊
Panasonic BR Button Batteries
From Panasonic, this range of non-rechargeable lithium button batteries (sometimes called coin batteries or coin cells) are a compact power solution. They can be used to power smaller electronic devices such as watches, calculators, cameras and they can offer memory support.
Features and benefits:
These button batteries have a wide operating temperature range of -30°C up to +80°C. They have very low current drain even at higher operating temperatures.
The self-discharge on this range of coin cells is low, giving them an excellent shelf life.
They have excellent reliability and a high capacity.
Panasonic lithium button batteries have resistance to continuous discharge and to over discharge.
The batteries with PCB pins have a vertical or horizontal orientation. They have a single pin negative and two pins positive.
The self-discharge on this range of coin cells is low, giving them an excellent shelf life.
They have excellent reliability and a high capacity.
Panasonic lithium button batteries have resistance to continuous discharge and to over discharge.
The batteries with PCB pins have a vertical or horizontal orientation. They have a single pin negative and two pins positive.
Typical Applications
Lithium coin batteries are used in electronic devices that require a small, compact source of power. Example applications include:
Calculators
Car keys
Toys
Cameras / film equipment
Watches
Hearing aids
Calculators
Car keys
Toys
Cameras / film equipment
Watches
Hearing aids
Guidance
Always install the batteries correctly as per instruction
Ensure that the contact points are clean and conductive
Do not mix different types of battery
Do not heat or attempt to recharge the battery
Do not dispose of in a fire
Ensure that the contact points are clean and conductive
Do not mix different types of battery
Do not heat or attempt to recharge the battery
Do not dispose of in a fire
Warning
Keep button batteries out of the reach of children. Consult a doctor immediately if ingested.

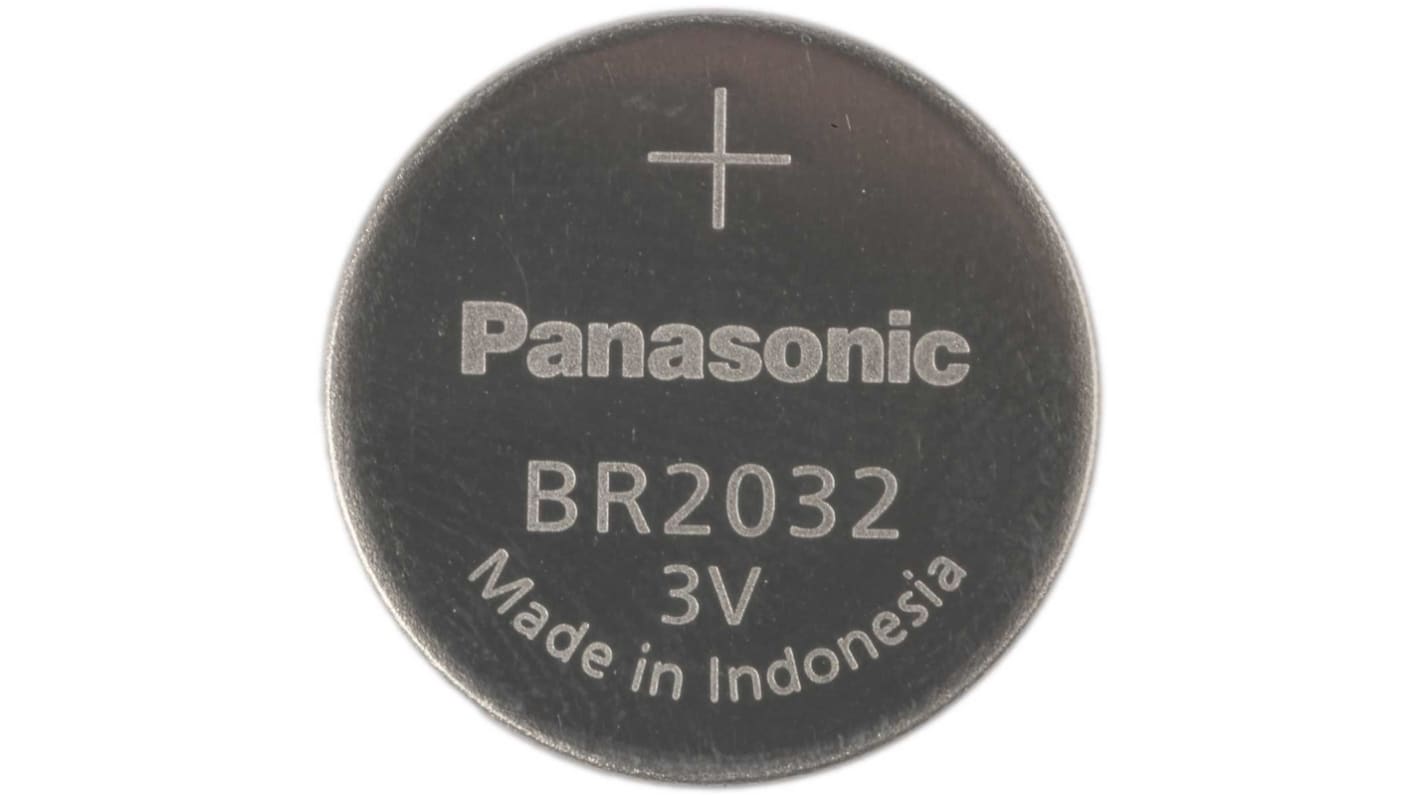

This BR2032 button battery from Panasonic features a nominal voltage of 3 V with a 190 mAh capacity. This lithium polycarbon monofluoride button battery has a 20 mm diameter and a height of 3.2 mm.
This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
Coin & Button Cells, Lithium
All cells in this range have a voltage of 3V.
規格
Attribute | Value |
---|---|
Size | BR2032 |
Chemistry | Lithium Polycarbon Monofluoride |
Nominal Voltage | 3V |
Capacity | 190mAh |
Terminal Type | Standard |
Diameter | 20mm |
Dimensions | 20 x 3.2mm |
Model Number | BR2032 |
Series | BR |
