HARWIN Natural Copper Cable Clip
- RS庫存編號:
- 788-4849
- 製造零件編號:
- S8121-46R
- 製造商:
- HARWIN
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Cable Clips & Clamps
630 現貨庫存，可於3工作日發貨。
單價 /個 (每包:10個)
原價 HK$3.811
您付款
HK$1.746
| 單位 | Per unit | Per Pack* |
| 10 - 320 | HK$1.746 | HK$17.46 |
| 330 - 640 | HK$1.708 | HK$17.08 |
| 650 + | HK$1.672 | HK$16.72 |
| * 參考價格 | ||
包裝方式：
- RS庫存編號:
- 788-4849
- 製造零件編號:
- S8121-46R
- 製造商:
- HARWIN
- COO (Country of Origin):
- GB
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

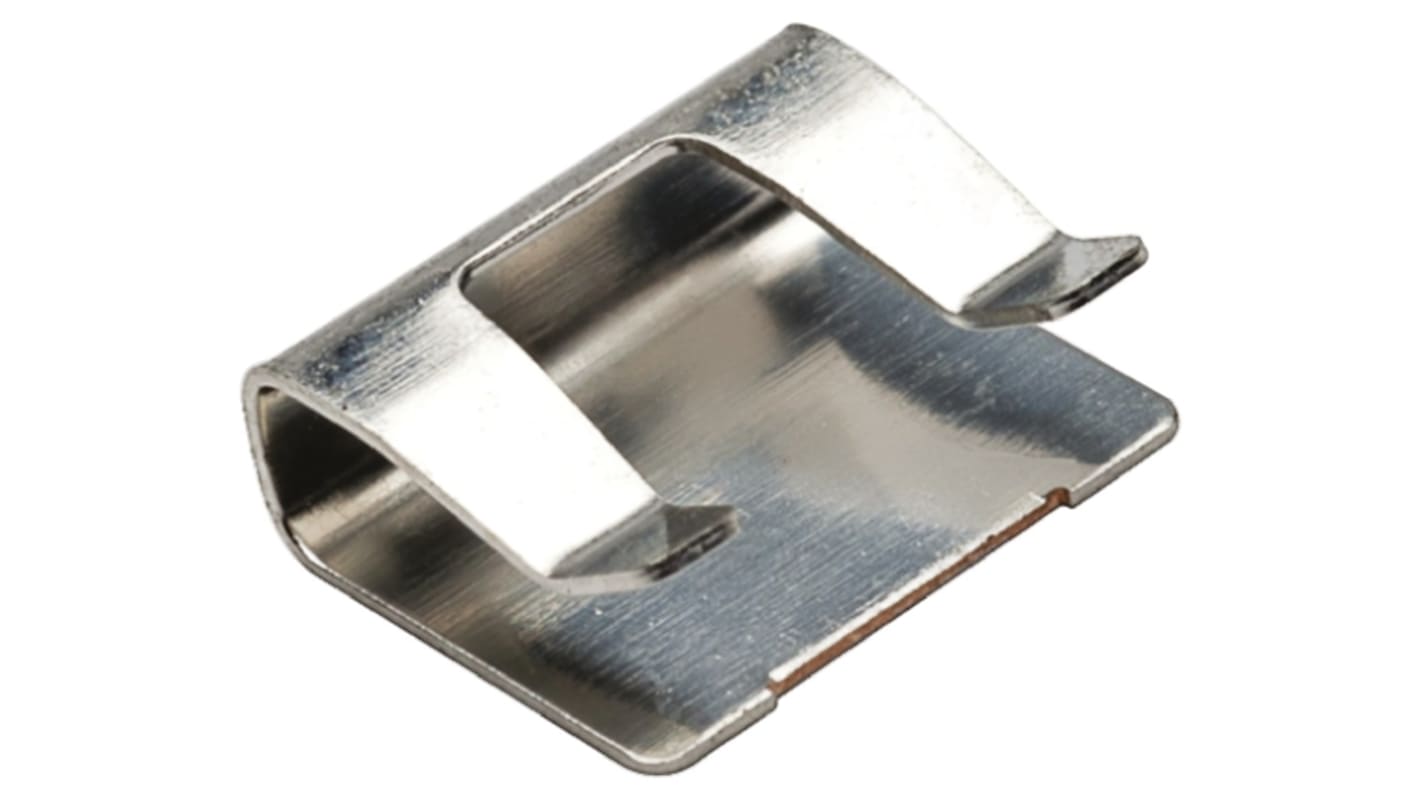

EZ Boardware SMT Cable Clips
A range of EZ Boardware SMT Cable Clips for use with insulated cables from 0.9 to 3 mm diameter, can be used with grounding coaxial cables. The EZ Boardware Copper alloy Tin plated SMT Cable Clips can be reflow soldered along with other components and have a low profile and small footprint.
Coax Grounding and Cable Retention:
788-4833 : 1.12 mm diameter: 2 x 0.9 mm diameter
788-4836 : RG178, RG179, RG316: 2 x 1.0 mm diameter
788-4830 : RG174, RG179, RG316: 3 x 1.0 mm or 2 x 1.5 mm diameter
788-4849 : 2 x 1.5 mm or 1 x 2.0 mm diameter
788-4842 : RG58: 3 x 2.0 mm or 1 x 3.0 mm diameter
Coax Grounding and Cable Retention:
788-4833 : 1.12 mm diameter: 2 x 0.9 mm diameter
788-4836 : RG178, RG179, RG316: 2 x 1.0 mm diameter
788-4830 : RG174, RG179, RG316: 3 x 1.0 mm or 2 x 1.5 mm diameter
788-4849 : 2 x 1.5 mm or 1 x 2.0 mm diameter
788-4842 : RG58: 3 x 2.0 mm or 1 x 3.0 mm diameter
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Cable Clip/Clamp Style | Cable Clip |
| Affixing Method | Surface Mount |
| Material | Copper |
| Colour | Natural |
| Length | 7mm |
| Width | 5.5 mm |
| Depth | 2.55mm |
| Operating Temperature Range | -40 → +105°C |
| Maximum Operating Temperature | +105°C |
| Series | EZ Boardware |
| Dimensions [L x W x D] | 7 x 5.5 x 2.55mm |
