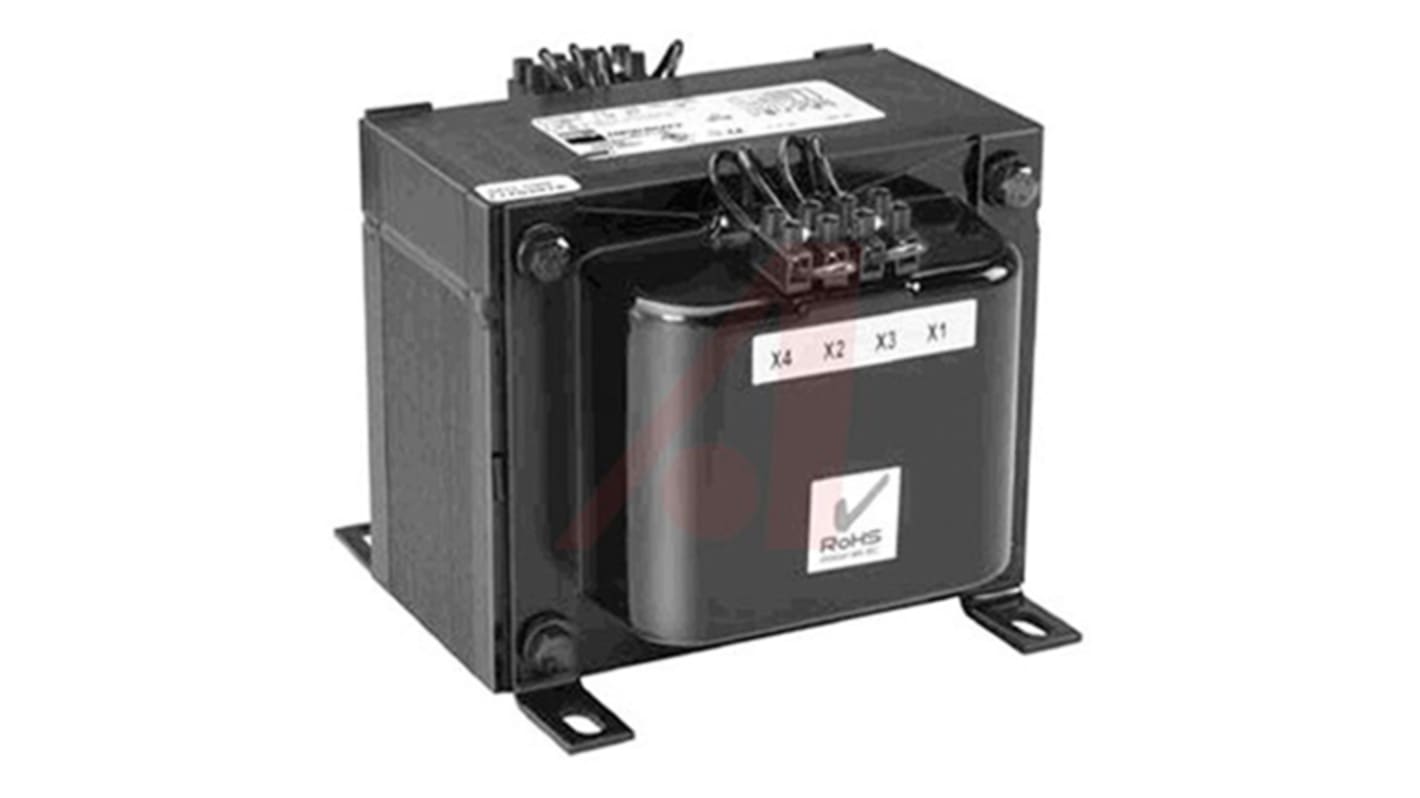

Sola 1500VA Chassis Mounting Transformer, 23 → 120V ac
- RS庫存編號:
- 890-8671
- 製造零件編號:
- CE1500MC
- 製造商:
- Sola
- RS庫存編號:
- 890-8671
- 製造零件編號:
- CE1500MC
- 製造商:
- Sola
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊
SolaHD International Series Control Transformers
The International series transformers have been designed to comply with the demands of electromagnetic control components which can demand inrush currents of up to 10 times the nominal rating without sacrificing secondary voltage stability beyond practical limits. They fully comply with IEC and NEMA standards and are available with IEC touch proof covers (IP20).
Epoxy encapsulated for cooler operation
Interleaved copper windings reduce I²R losses and maximize efficiency
50/60 Hz
+55 °C Rise, +105 °C insulation system for harsh, heavy duty applications
Interleaved copper windings reduce I²R losses and maximize efficiency
50/60 Hz
+55 °C Rise, +105 °C insulation system for harsh, heavy duty applications
Standards
Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards
規格
Attribute | Value |
|---|---|
| Primary Voltage Rating | 200 → 600V ac |
| Secondary Voltage Rating | 23 → 120V ac |
| Power Rating | 1500VA |
| Mounting Type | Panel |
| Width | 6.38in |
| Depth | 7.75in |
| Dimensions | 5.63 x 6.38 x 7.75in |
| Weight | 37lb |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
