Seeit SUPERPRO 610P SUPERPRO-610P, Universal IC Chip Device Programmer for ARM9 32 bit MCU, EPROMs, Flashs, PLDs

  • RS庫存編號 798-4393
  • 製造零件編號 SUPERPRO-610P
  • 製造商 Seeit
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

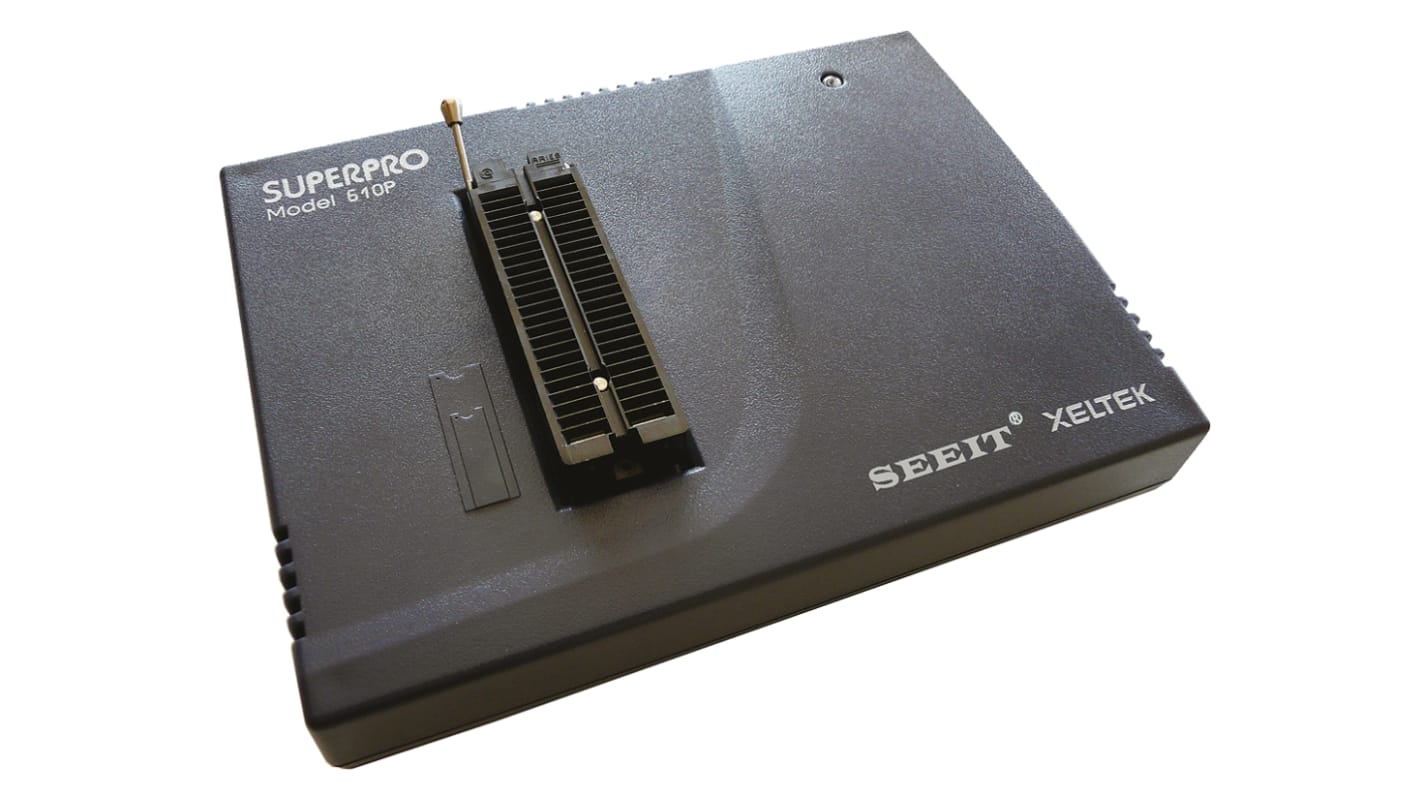

SUPERPRO 610P, High-Speed Universal Programmer, USB 2.0

The SuperPro-610P is an universal production programmer equipped with ARM9 processor with a USB 2.0 interface. Based on the 48-pin ZIF socket it can program over 32000 differents components among EPROMs, EEPROMs, FLASHs memories, PLDs and microcontrollers. It can program low voltage components down to 1.2V. It doesn’t need any adapters for any SDIP packages. The programming is extremely fast based on the use of algorithm technology downloaded in the CPU of the programmer during the selection of a device. An optional ISP adapter permit to program components soldered on printed circuits or devices in special packages. The software runs under Windows 98/ME/NT/2000/XP/Windows7/Windows8 (32/64 bits). Updates can be download freely.

Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller
Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, and more
Tests and Detects incorrect insertion of the device and defective pin
protected against short circuits and over-voltages
Computer interface with USB 2.0
AC Power Adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power: 15W
Dimensions: 178 x 130 x 40 mm, Weight: 0.8kg

Kit Contents

Programmer with 48-pins ZIF socket
Power Adaptor 90-260Vac to 12Vdc
USB-B to USB-A cable
Software on CD-ROM
User manual in English and French

PC Based Programmers

規格
Attribute Value
Accessory Type Universal IC Chip Device Programmer
For Use With ARM9 32 bit MCU, EPROMs, Flashs, PLDs
Interface USB 2.0
Programmer Name SUPERPRO 610P
Memory Type Programmed EEPROM, EPROM, FLASH
3 現貨庫存,可於3工作日發貨。
單價 個
HK$ 6,091.93
(不含稅)
單位
Per unit
1 +
HK$6,091.93
