- RS庫存編號:
- 919-5523
- 製造零件編號:
- TOP2013
- 製造商:
- Seeit
- RS庫存編號:
- 919-5523
- 製造零件編號:
- TOP2013
- 製造商:
- Seeit
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

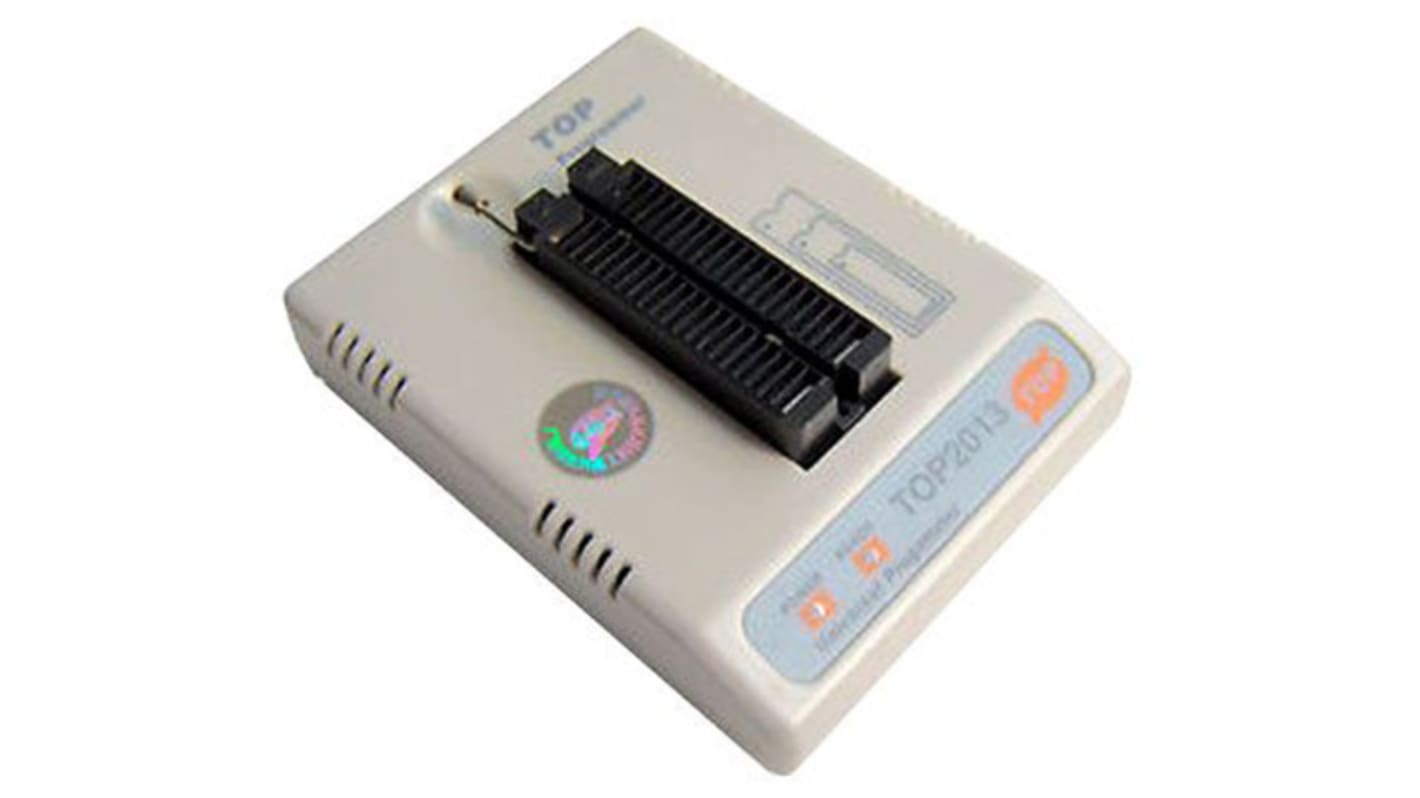

Seeit Universal Programmer
The Seeit universal programmer is designed to work with components with up to 32 pins, from a range of manufacturers. These components include EPROMs, EEPROMs and FLASH memory. A full list of compatible devices can be found on the product datasheet. Featuring an ARM Cortex 32 core, the TOP2013 programmer is housed in a compact package. It also offers low power loss and overcurrent protection. You can simply plug the TOP2013 into a PC via a USB cable. The TOP2013 automatically starts programming once it detects a device has been inserted correctly into the ZIF40 socket.
TOP2013 kit contents:
Programmer
Powerpack
USB cable
Software CD
User manual
TOP2013 kit contents:
Programmer
Powerpack
USB cable
Software CD
User manual
Features and Benefits
Automatic detection manufacturer and type of IC
Automatic pin status detection
Overcurrent protection
Supports 2.5V to 6.5V devices
Supports Windows XP/VISTA/Windows 7/Windows 8.1/Windows10
Transmission speed is 12MHz/s
USB interface
USB or external 5V power supply
ZIF40 socket (8-pin to 40-pin DIP packages)
Automatic pin status detection
Overcurrent protection
Supports 2.5V to 6.5V devices
Supports Windows XP/VISTA/Windows 7/Windows 8.1/Windows10
Transmission speed is 12MHz/s
USB interface
USB or external 5V power supply
ZIF40 socket (8-pin to 40-pin DIP packages)
規格
Attribute | Value |
---|---|
Accessory Type | Universal Programmer |
For Use With | EEPROM, EPROM, FLASH, STC Microcontrollers |
Interface | USB 2.0 |
Programmer Name | TOP201 |
Memory Type Programmed | EEPROM, EPROM, FLASH |
