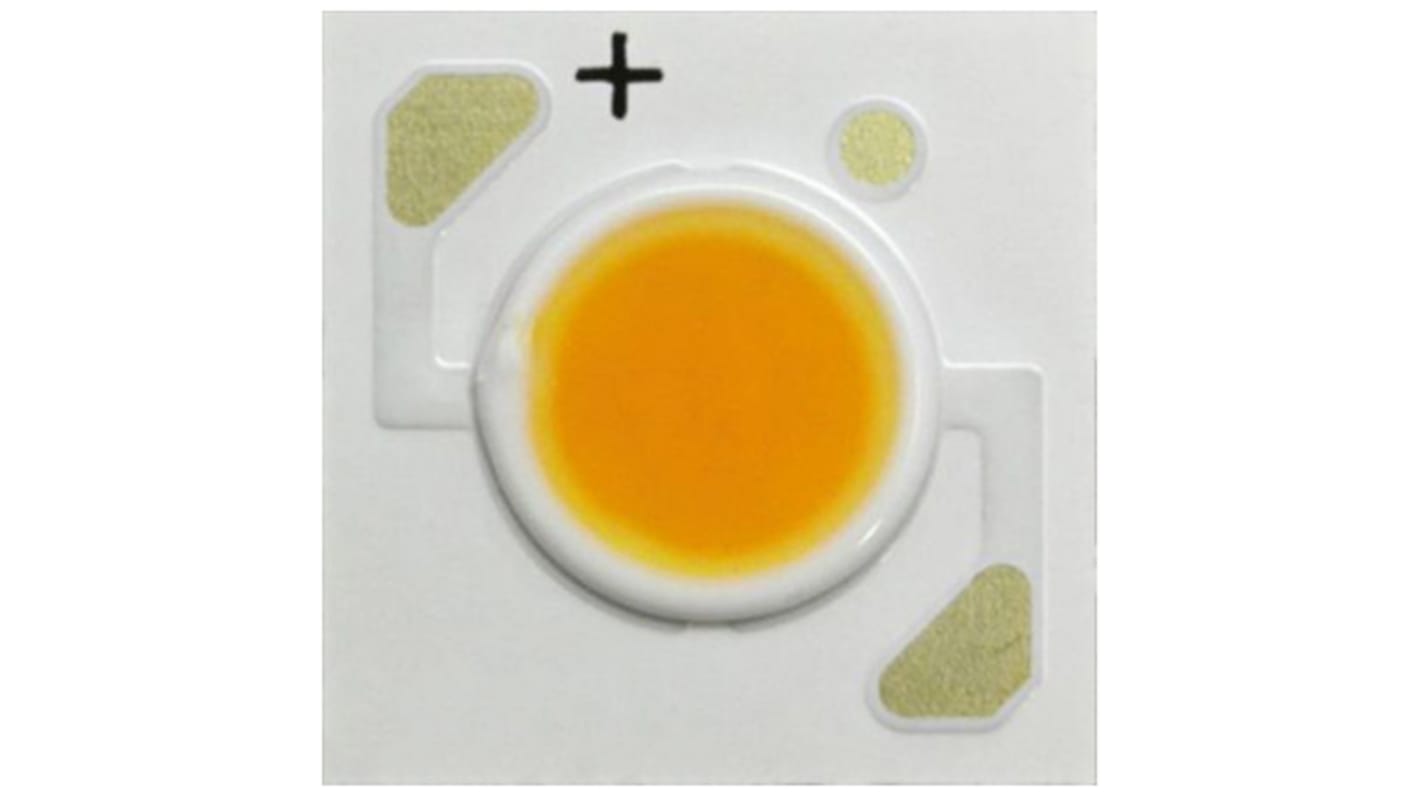

Cree CXB1304-0000-000C0UA427G, CXA2 White CoB LED, 2700K 90CRI

  • RS庫存編號 884-7481
  • 製造零件編號 CXB1304-0000-000C0UA427G
  • 製造商 Cree
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

Cree XLamp CXB1304 Series LED Arrays

The CXA2 family of COB LEDs are multiple-die integrated arrays offering lighting-class reliability. They feature an optical source that delivers a high lumen output.
The CXA2 COB LEDs are the second generation of the CXA family, delivering up to 33% higher efficacy. The CXA2 family have the same range of packages as the previous generation of CXA devices, allowing a simple drop-in upgrade. Increased performance, created using their SC5 Technology, enables the CXA2 LEDs to offer the same output from a smaller light emitting surface (LES).
Available in 2-step, 3-step and 5-step EasyWhite® bins, the CXA2 COB LEDs are suitable for applications such as GU10s, commercial downlights, outdoor lighting and high-bay lighting.

Features of the CXB1304 Series COB LEDs:
6 mm LES
70, 80 & 90 min CRI options
Uniform colour
Viewing angle: 115°

規格
Attribute Value
Typical Luminous Flux 364 lm, 392 lm
Optical Source Diameter 6mm
Colour Temperature 2700K
Radiant Flux 10W
Series CXA2
Viewing Angle 115 °
Colour Rendering 90
LED Colours White
Forward Voltage 9 V
Forward Current 1000mA
Dimensions 13.35 x 13.35 x 1.7mm
