Wurth Elektronik 2 x 5 mH 2.5 A Common Mode Choke 2 x 95mΩ
- RS庫存編號:
- 163-8144
- 製造零件編號:
- 744823305
- 製造商:
- Wurth Elektronik

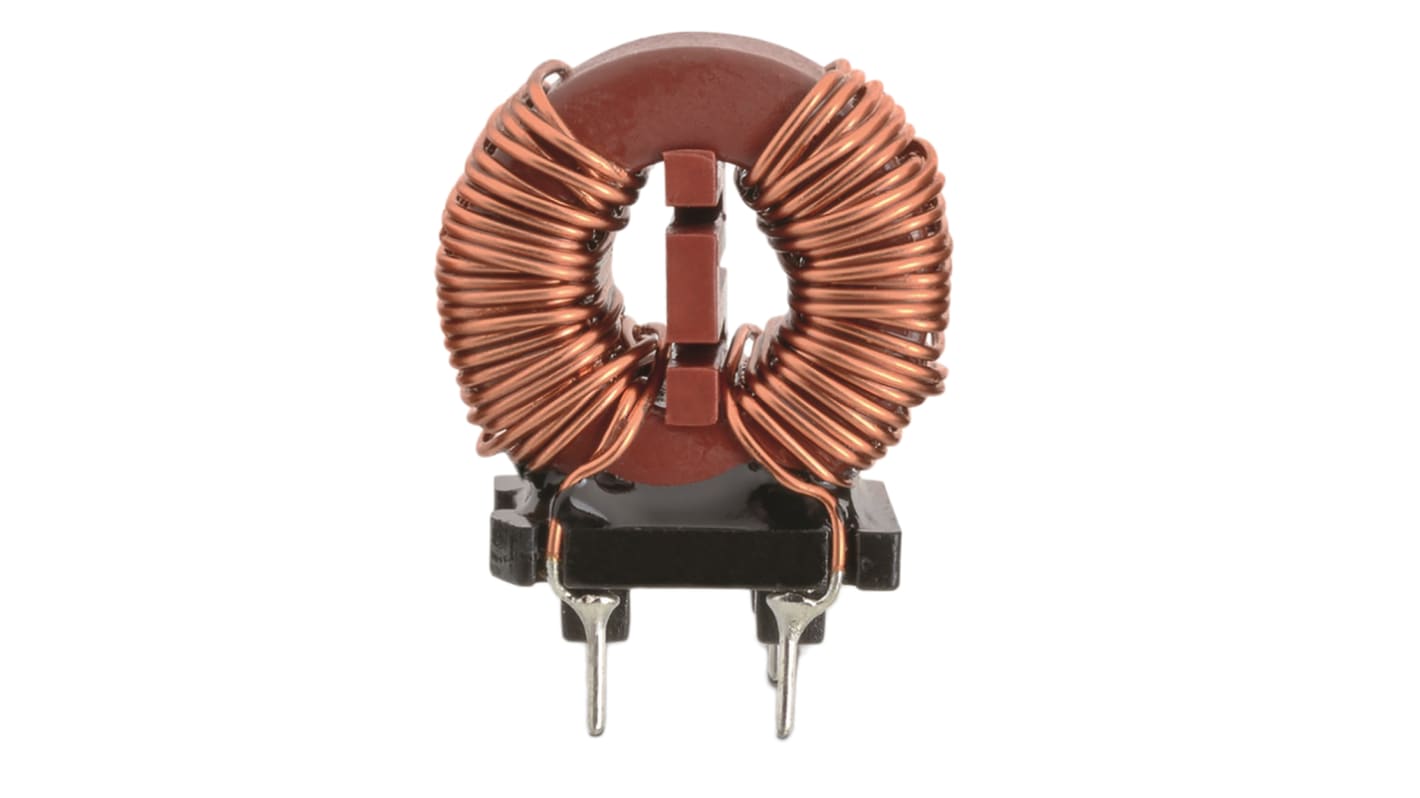

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 盒，共 100 件）*
HK$3,100.50
訂單超過 HK$250.00 免費送貨
有庫存
- 600 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每盒* |
|---|---|---|
| 100 - 100 | HK$31.005 | HK$3,100.50 |
| 200 - 900 | HK$30.23 | HK$3,023.00 |
| 1000 + | HK$27.207 | HK$2,720.70 |
* 參考價格
- RS庫存編號:
- 163-8144
- 製造零件編號:
- 744823305
- 製造商:
- Wurth Elektronik
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Inductance | 2 x 5 mH | |
| Series | WE-CMB | |
| Impedance | 95 mΩ | |
| Test Frequency | 10 KHz | |
| DC Resistance | 2 x 95mΩ | |
| Maximum Current | 2.5 A | |
| Dimensions | 23 x 13 x 25.5mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Length | 23mm | |
| Height | 25.5mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 13mm | |
| 選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Inductance 2 x 5 mH | ||
Series WE-CMB | ||
Impedance 95 mΩ | ||
Test Frequency 10 KHz | ||
DC Resistance 2 x 95mΩ | ||
Maximum Current 2.5 A | ||
Dimensions 23 x 13 x 25.5mm | ||
Operating Temperature Range -40°C → +125°C | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Length 23mm | ||
Height 25.5mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Depth 13mm | ||
- COO (Country of Origin):
- CN
Wurth WE-CMB XS, M and XL Series Common Mode Chokes
From Wurth Elektronik, the WE-CMB series of common modes chokes are a compact solution delivering high suppression of asymmetrical interferences, even at low frequency ranges. WE-CMB series common mode chokes offer the highest possible current for their ultra compact size. WE-CMB common mode chokes feature broadband screening due to the anti-capacitance coiling technique that has been incorporated into the design.
Features and Benefits:
Compact design
Climatic category: 40/125/21
IEC 60938-2
Flammability: UL 49 V-0
Wide operating temperature range of -40°C to +125°C
Product Applications:
WE-CMB common mode chokes are ideal for the suppression of common mode noise and the suppression of radio interferences in motors. Suitable applications include power line in and output filters, power electronics and the filtering of devices lacking a ground connection.
Wurth Leaded Inductors (Chokes)
