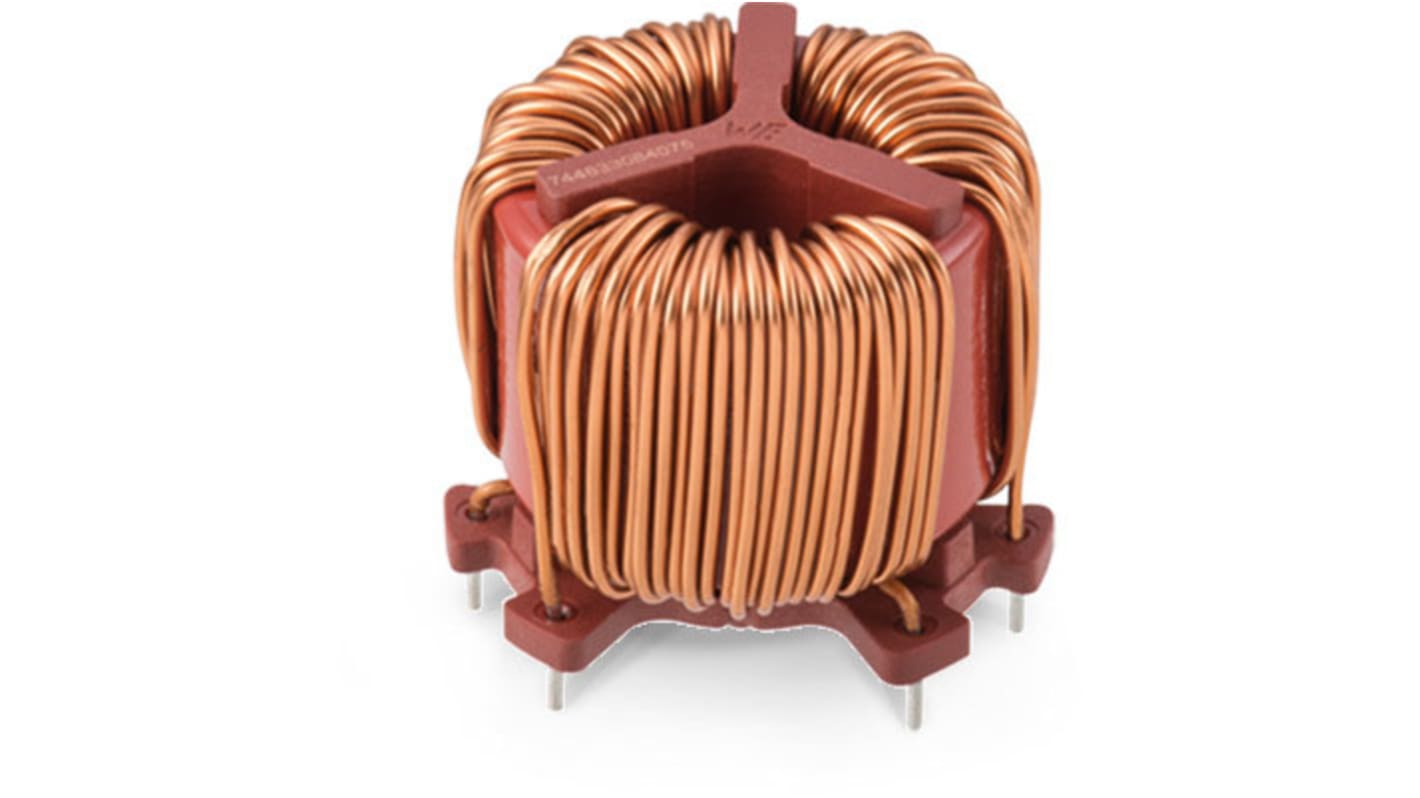

Wurth Elektronik 520 μH 24 A Common Mode Choke 3mΩ
- RS庫存編號:
- 185-7029
- 製造零件編號:
- 744833005240
- 製造商:
- Wurth Elektronik
可享批量折扣
Price 个（每套 9）**
HK$109.783
當前暫無庫存，可於2025/10/6發貨，3 工作日送達。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
單位 | 每單位 | 每托盤** |
|---|---|---|
| 9 - 36 | HK$109.783 | HK$988.047 |
| 45 + | HK$107.588 | HK$968.292 |
** 參考價格
- RS庫存編號:
- 185-7029
- 製造零件編號:
- 744833005240
- 製造商:
- Wurth Elektronik
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Inductance | 520 μH | |
| Series | WE-TPB | |
| Test Frequency | 10 kHz | |
| DC Resistance | 3mΩ | |
| Maximum Current | 24 A | |
| Dimensions | 47 (Dia.) x 39mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 39mm | |
| Depth | 47mm | |
選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Inductance 520 μH | ||
Series WE-TPB | ||
Test Frequency 10 kHz | ||
DC Resistance 3mΩ | ||
Maximum Current 24 A | ||
Dimensions 47 (Dia.) x 39mm | ||
Operating Temperature Range -40°C → +125°C | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Height 39mm | ||
Depth 47mm | ||
