KEMET 5.0 A Common Mode Choke 8mΩ 50V

  • RS庫存編號 186-0647
  • 製造零件編號 SHO-303
  • 製造商 KEMET
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): VN
產品詳細資訊

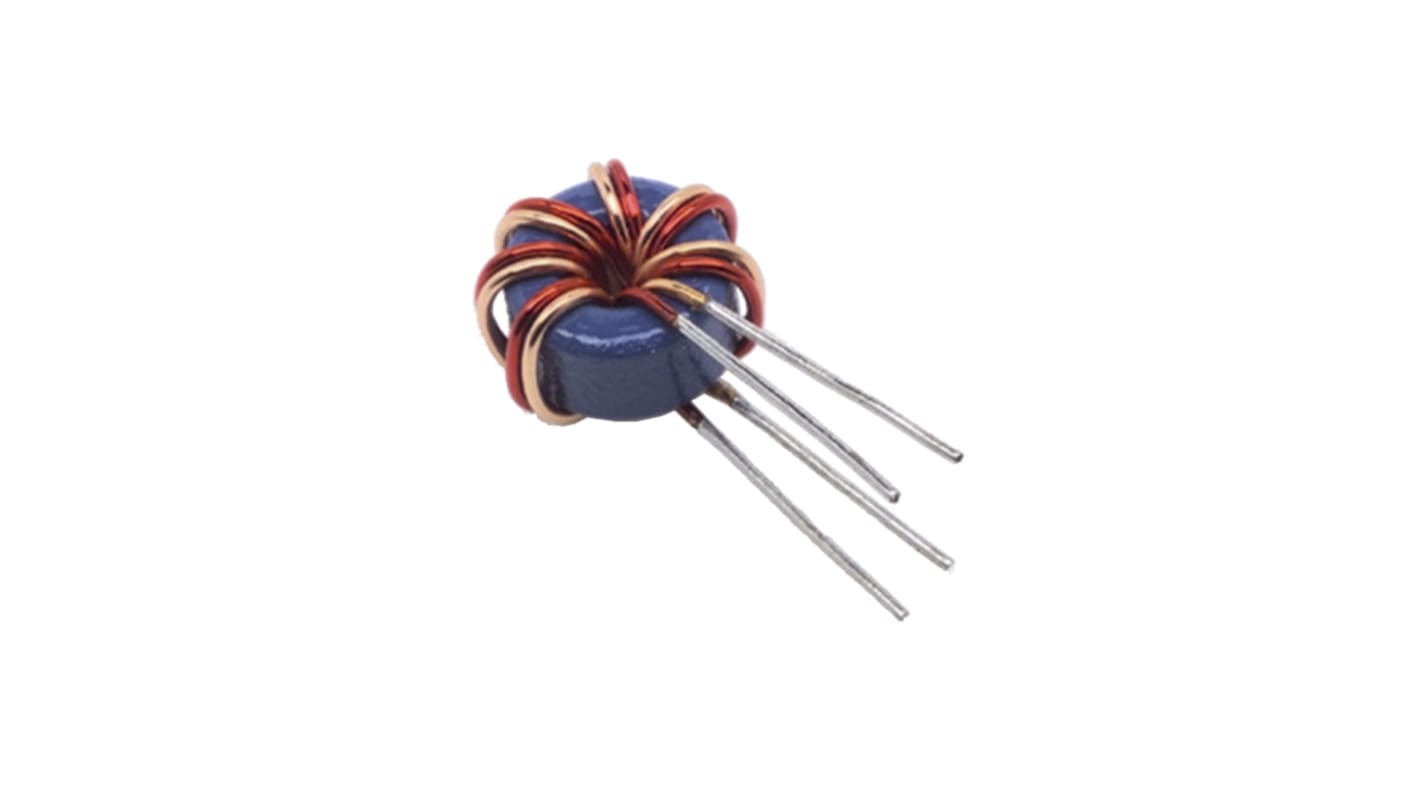

The KEMET SHO coils are common mode chokes with a wide variety of characteristics. These through-hole toroidal coils are suitable for noise countermeasure in DC power line circuits.

Nickel-Zinc (Ni-Zn) ferrite core
Operating temperature range from -25°C to +70°C (except SHO-303: -25°C to +75°C and SHO-402 and SHO-501: -25°C to +80°C)
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Home appliances
Power supplies

規格
Attribute Value
Series SHO
Impedance 6.0 μH
DC Resistance 8mΩ
Maximum Current 5.0 A
Dimensions 8x11x11mm
Operating Temperature Range -25°C to + 75°C
Mounting Type Through Hole
Voltage Rating 50V
Termination Style PCB Pin
Depth 8.0mm
Length 11mm
Maximum Operating Temperature +75°C
Height 11mm
Minimum Operating Temperature -25°C
當前暫無庫存,可於2021/5/6發貨,3 工作日送達。
單價 個 (以毎盒:1000)
HK$ 7.148
(不含稅)
單位
Per unit
Per Box*
1000 +
HK$7.148
HK$7,148.00
* 參考價格
