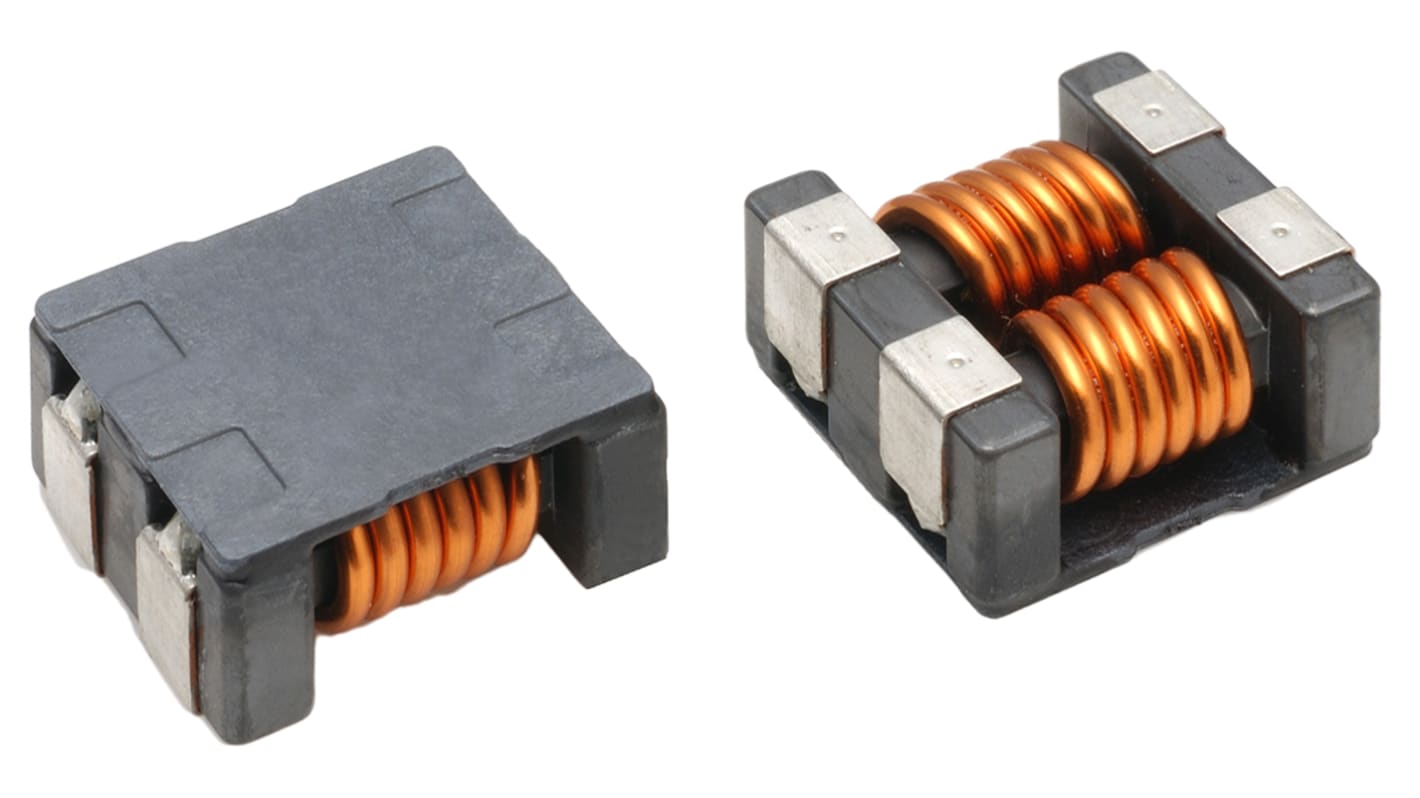

TDK 1.5 μH 4 A Common mode filter 15mΩ 80V
RS庫存編號:
916-4140P
製造零件編號:
ACM7060-701-2PL-TL01
製造商:
TDK
此圖片僅供參考,請參閲產品詳細資訊及規格
查看所有Common Mode Chokes
可享批量折扣
單價 个 (以每卷裝提供) 連續帶的數量低於 150
HK$12.388
Add to Basket
單位
選擇或輸入數量
添加到購物車
1640 現貨庫存,可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
即時庫存查詢
添加到收藏夾
批量购买价格选项
單位
每單位
375 - 745
HK$12.118
750 +
HK$11.854
包裝方式:
標準包裝
行業包裝
RS庫存編號:
916-4140P
製造零件編號:
ACM7060-701-2PL-TL01
製造商:
TDK
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
規格
ACM7060 Datasheet_EN
Datasheet_ACM7060-701-2PL-TL01
参数表ACM7060-701-2PL-TL01
相容
符合聲明
Common Mode Filter ACM3225/4532/
7060/9070/1211/1513
Large-Current Wirewound Chip Common Mode Filter
Supports up to 10 A
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute
Value
Inductance
1.5 μH
Series
ACM
Impedance
700 Ω
Test Frequency
100 MHz
DC Resistance
15mΩ
Maximum Current
4 A
Dimensions
7 x 6 x 3.5mm
Operating Temperature Range
-40°C → +85°C
Number of Lines
2
Mounting Type
Surface Mount
Voltage Rating
80V
Termination Style
Surface Mount
Package/Case
7060
Depth
6mm
Length
7mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Height
3.5mm
