InvenSense, Surface Mount Microphone Condenser -26dB
- RS庫存編號:
- 218-2235
- 製造零件編號:
- ICS-43434
- 製造商:
- InvenSense
不可供應
RS 不再對此產品進貨。
- RS庫存編號:
- 218-2235
- 製造零件編號:
- ICS-43434
- 製造商:
- InvenSense
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | InvenSense | |
| Sensitivity | -26dB | |
| Standard Operating Voltage | 1.65 → 3.63V dc | |
| Mounting Type | Surface Mount | |
| 選取全部 | ||
|---|---|---|
品牌 InvenSense | ||
Sensitivity -26dB | ||
Standard Operating Voltage 1.65 → 3.63V dc | ||
Mounting Type Surface Mount | ||
- COO (Country of Origin):
- TW

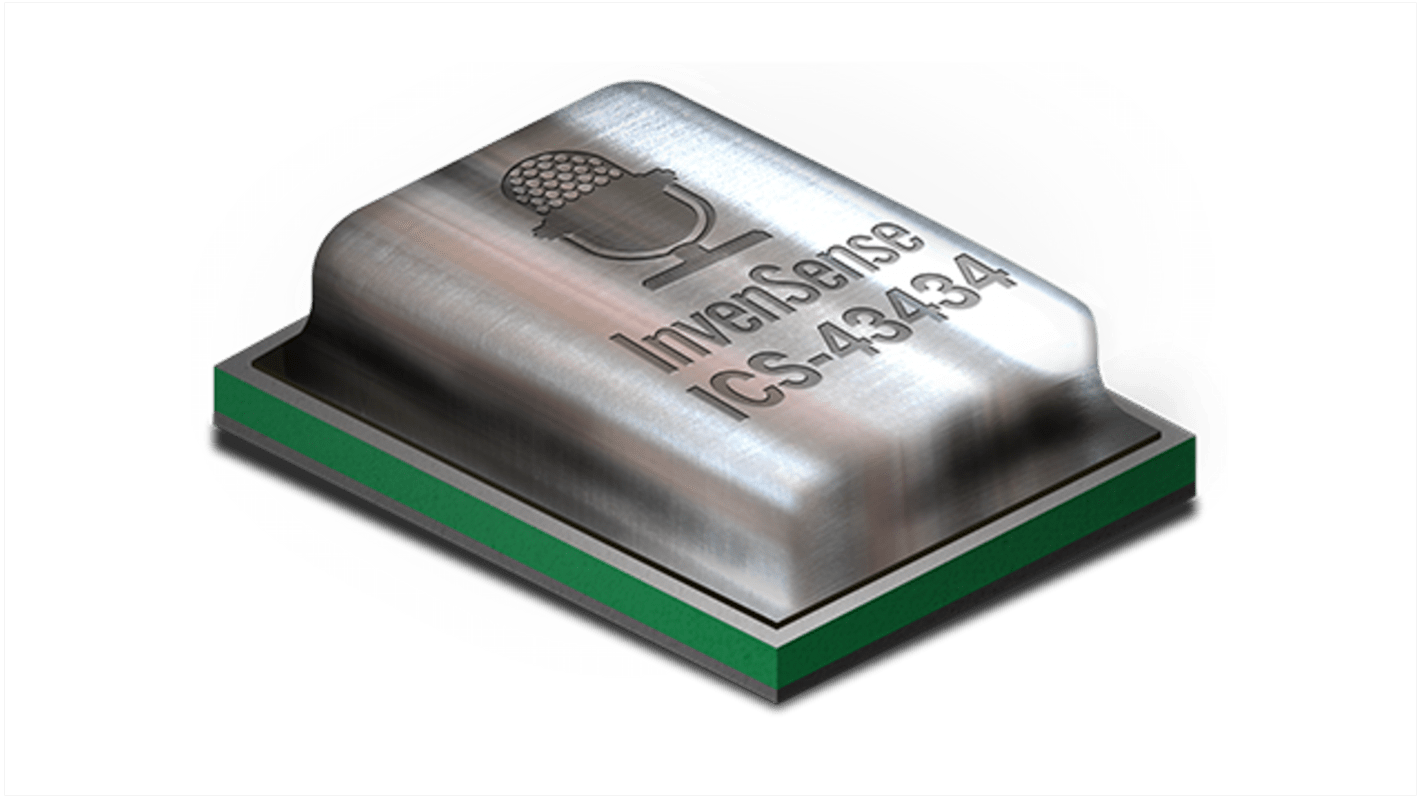

The InvenSense ICS series is a digital I²S output bottom port microphone. It has multiple modes of operation such as high performance, low power and sleep mode. It consists of a MEMS sensor, signal conditioning, an analog‐to‐digital converter, decimation and anti‐aliasing filters, power management, and an industry standard 24‐bit I²S interface. The I²S interface allows the device to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system.
Wide frequency response from 60 Hz to 20 kHz
High-power supply −100 dB FS
Compatible with Sn/Pb and Pb‐Free solder processes
RoHS/WEEE Compliant
High-power supply −100 dB FS
Compatible with Sn/Pb and Pb‐Free solder processes
RoHS/WEEE Compliant
