InvenSense Omni-Directional Surface Mount Microphone Condenser, 50 → 20000 Hz -27 → -25dB

  • RS庫存編號 883-7917
  • 製造零件編號 ICS-43432
  • 製造商 InvenSense
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): TW
產品詳細資訊

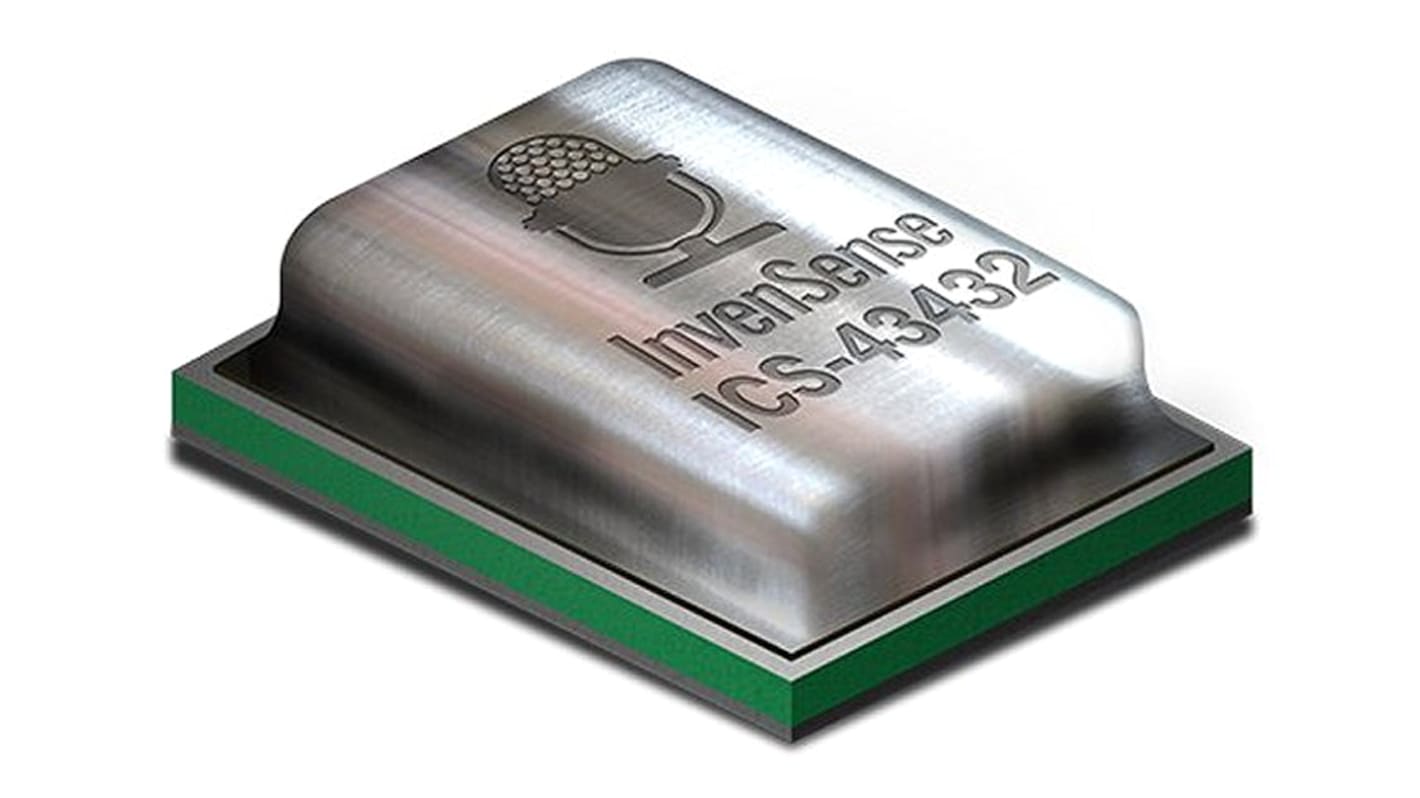

Digital MEMS Microphone - ICS-43432, InvenSense

The ICS-43432 is a low-noise MEMS microphone with an I2S digital output. The InvenSense digital microphone ICS43432 has fully decimated outputs that allow them to be connected directly into microcontrollers (MCU) and DSPs. The device contains a MEMS sensor, an analog to digital converter, signal conditioning, decimation and anti-aliasing filters along with a 24-bit I2S interface.
The digital microphone is bottom ported and has a high signal to noise ratio (SNR) along with a wideband frequency response It is also perfect when an audio codec design is not needed. The applications include wearables, remote controls, teleconferencing systems, gaming consoles, security systems, and microphone arrays.

Digital I2S Output
Low Current Consumption: 1 mA
SNR: 65 dBA
116 dB Maximum SPL (Acoustic Overload Point)
Sensitivity Tolerance: ±1 dB
Sensitivity: –26 dB
Wide Frequency Response from 50 Hz to 20 kHz
High Power Supply Rejection: −80 dB
RoHS/WEEE Compliant
Compatible with Sn/Pb and Pb-Free Solder Processes
Dimension: 4mm ´ 3mm ´ 1mm

Audio & Acoustic Sensors, Invensense

規格
Attribute Value
Sensitivity -27 → -25dB
Directivity Omni-Directional
Standard Operating Voltage 1.62 → 3.63V
Mounting Type Surface Mount
Signal to Noise Ratio 65dB(A)
Maximum Supply Current 24µA
Dimensions 4 x 3 x 1mm
Height 1mm
Maximum Frequency 20kHz
Maximum Operating Temperature +85°C
Minimum Frequency 50Hz
Minimum Operating Temperature -40°C
36 現貨庫存,可於3工作日發貨。
單價 /個 (每包:2個)
HK$ 57.815
(不含稅)
單位
Per unit
Per Pack*
2 - 8
HK$57.815
HK$115.63
10 - 18
HK$54.755
HK$109.51
20 - 98
HK$51.915
HK$103.83
100 +
HK$51.73
HK$103.46
* 參考價格
包裝方式:
