Flexicon Straight, Conduit Fitting, 50mm Nominal Size, M50, Nickel Plated Brass
- RS庫存編號:
- 872-5934
- 製造零件編號:
- FSU50-M50-M
- 製造商:
- Flexicon
查看所有Conduit Fittings
- RS庫存編號:
- 872-5934
- 製造零件編號:
- FSU50-M50-M
- 製造商:
- Flexicon
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

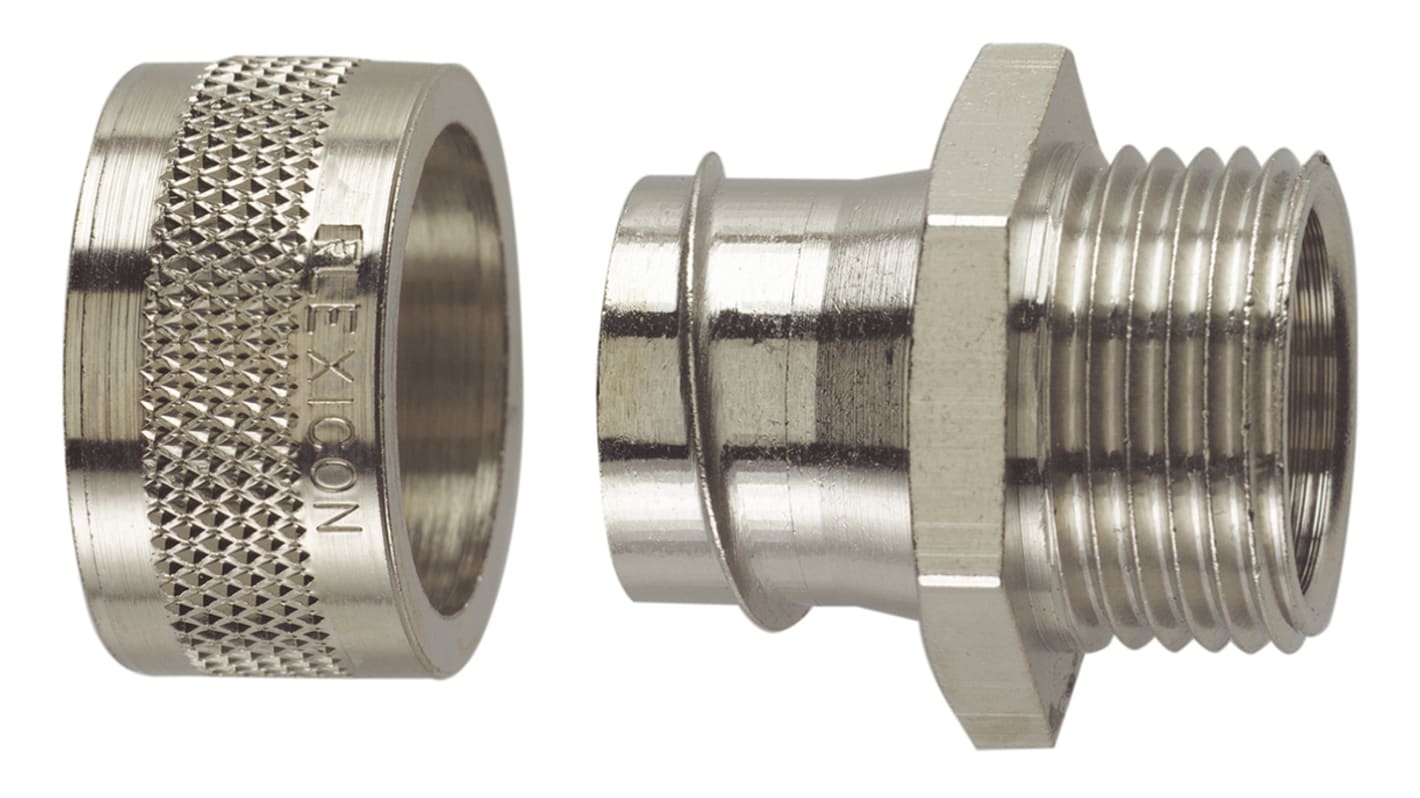

FSU M Fittings, Fixed, External Thread, Nickel Plated Brass, Straight
Flexicon FSU metallic conduit fittings are UK manufactured to the highest standards. They exhibit high tensile strength and are vibration tested for secure installations. Simple construction for ease of installation; tested and approved to the latest national and international standards.
Fixed externally threaded straight conduit fitting
Two part fitting comprising shell and body with external thread
This fitting can be inserted into a knockout and secured with a locknut
Nickel plated brass
IP54 (see note)
Two part fitting comprising shell and body with external thread
This fitting can be inserted into a knockout and secured with a locknut
Nickel plated brass
IP54 (see note)
Note
FSU standard fittings and FSU conduit will ensure an IP54 protection rating.
Approvals
CE
BS EN IEC 61386
REACh
RoHS
BS EN IEC 61386
REACh
RoHS
Flexicon Flexible Conduit
規格
| Attribute | Value |
| Nominal Size | 50mm |
| Fitting Type | Straight |
| Thread Size | M50 |
| Material | Nickel Plated Brass |
| IP Rating | IP54 |
| Finish | Nickel Plated |
| Series | FSU |
| Standards Met | BS EN IEC 61386, CULus Certified, LUL Standard 1-085 (Cert.No. 296), Rail Accreditation, REACH Compliant, RoHS Compliant |
