Craig & Derricott Stay Put Control Station Switch - SPDT, Stainless Steel, 9 Cutouts, Red, Emergency Stop, IP65
- RS庫存編號:
- 310-4004
- 製造零件編號:
- EMSH/P/F1/F/CO
- 製造商:
- Craig & Derricott
1 現貨庫存,可於3工作日發貨。
單價 个
HK$2,287.72
單位 | Per unit |
1 + | HK$2,287.72 |
- RS庫存編號:
- 310-4004
- 製造零件編號:
- EMSH/P/F1/F/CO
- 製造商:
- Craig & Derricott
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

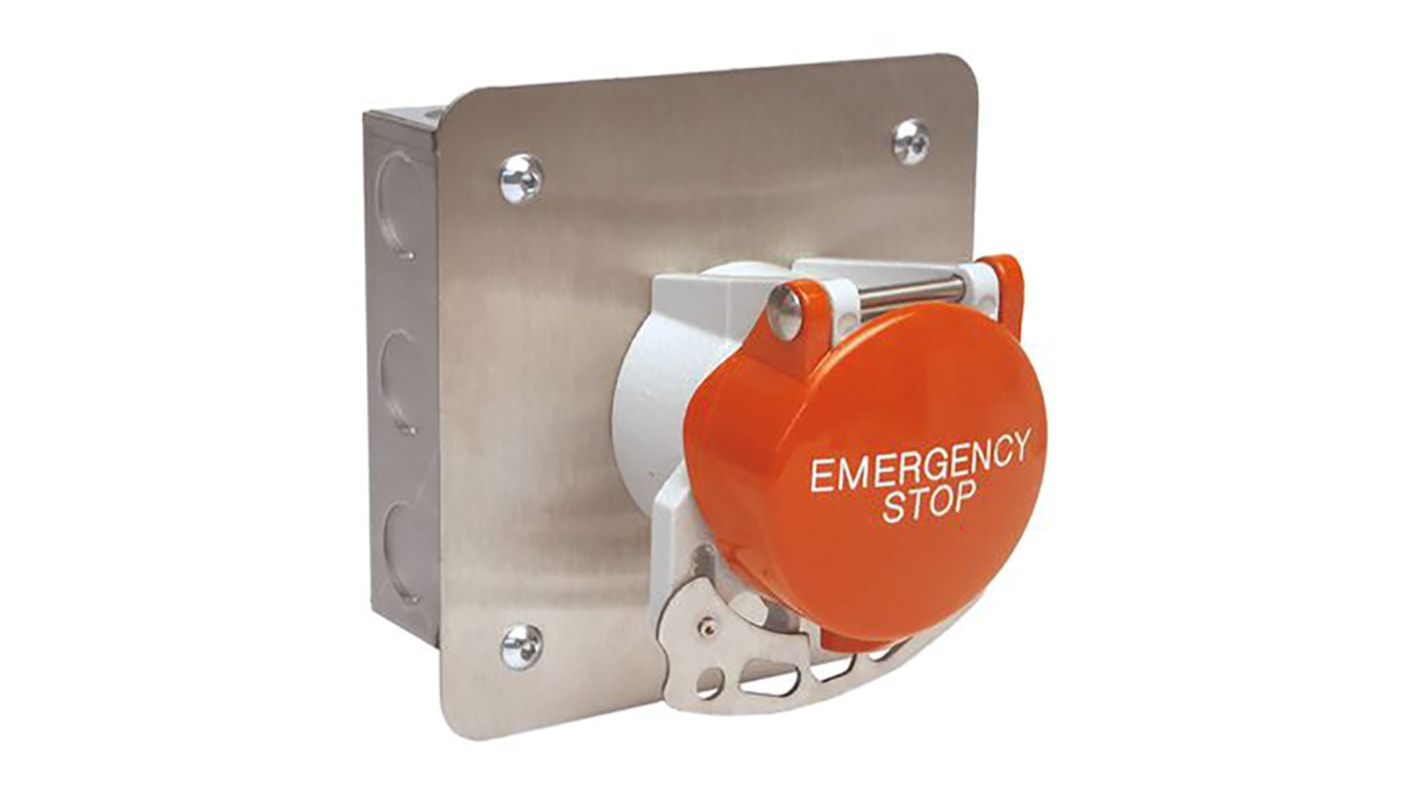

Flush Mounting Emergency Stop Controls
Stainless steel faceplate with galvertec sheet steel back box for recess into wall cavity
Suitable for indoor or outdoor applications
Stock no. 310-4004 features a lockable flap which is padlockable and has to be unlocked to reset pushbutton
Ingress protection to IP65
Screw terminal, block type contacts, cable size 2x2.5 mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5
Suitable for indoor or outdoor applications
Stock no. 310-4004 features a lockable flap which is padlockable and has to be unlocked to reset pushbutton
Ingress protection to IP65
Screw terminal, block type contacts, cable size 2x2.5 mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5
Note
The sealing of the faceplate to the fitting surface is the responsibility of the installer.
Approvals
BS EN418; BS EN 292
規格
Attribute | Value |
---|---|
Series | i-push |
Number of Cutouts | 9 |
Push Button Marking | Emergency Stop |
Push Button Colour | Red |
Push Button Material | Plastic |
Contact Configuration | SPDT |
Enclosure Material | Stainless Steel |
IP Rating | IP65 |
Cutout Diameter | 22mm |
Push Button Actuation | Stay Put |
Length | 125mm |
Width | 125mm |
Depth | 52mm |
Maximum AC Voltage | 690V |
Terminal Type | Screw |
Maximum Current | 16A |
