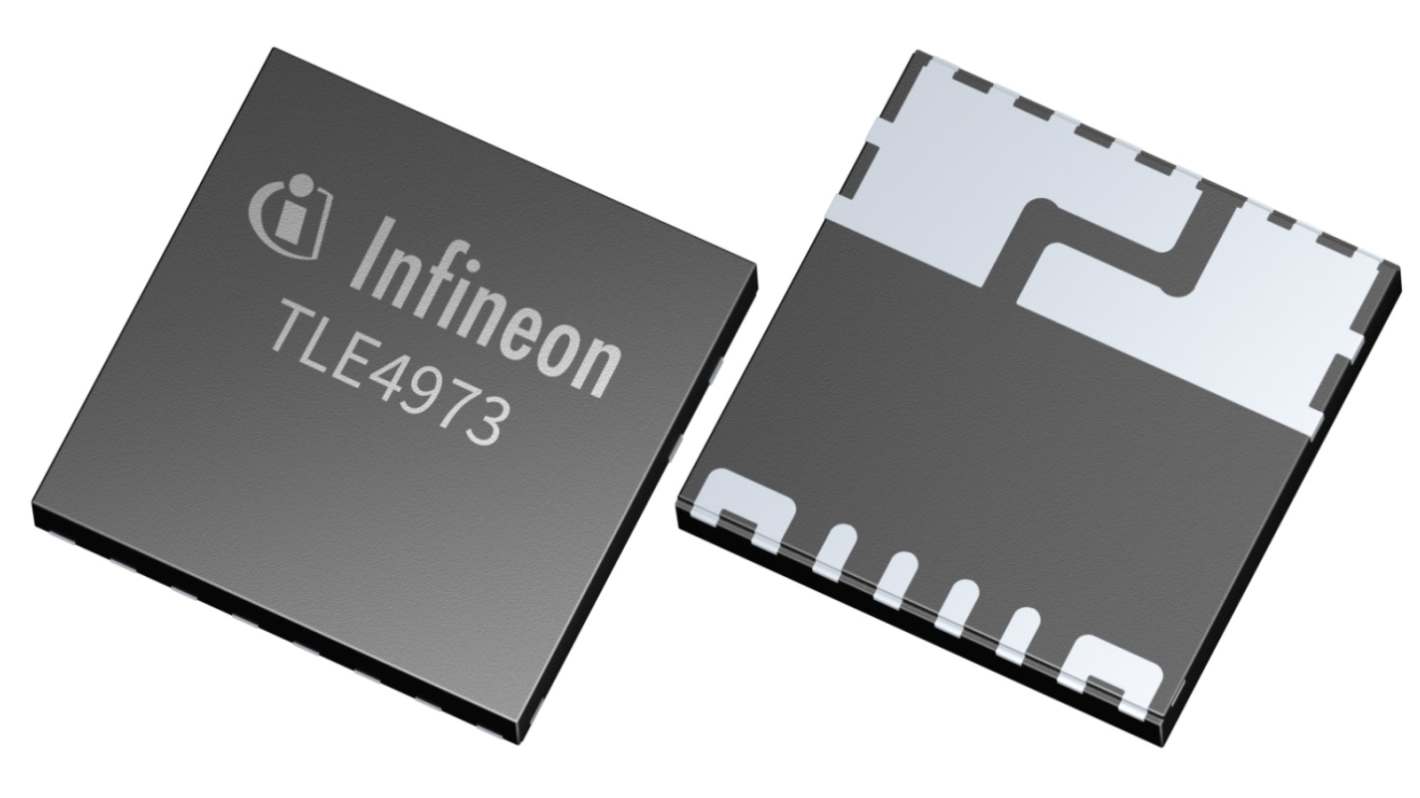

Infineon TLE4973R025T5S0010XUMA1, Current Sensor IC 8-Pin, PG-TISON-8-6

The Infineon High precision miniature coreless magnetic current sensor for AC and DC measurements with analogue interface and fast over current detection output. Negative effects known from open loop sensors using flux concentration techniques are avoided. The differential measurement principle allows great stray field suppression for operation in harsh environments. The high configurability enables customization for a variety of applications. User programmable parameters such as OCD thresholds and sensitivity settings are stored in an embedded EEPROM.

Ratiometric single ended analogue output
ISO 26262 Safety Element out of Context for safety requirements up to ASIL B
Very low sensitivity error over temperature and lifetime
Excellent stability of offset over temperature and lifetime
Differential sensor principle ensures superior magnetic stray field suppression
High bandwidth provides fast response time and low phase delay
