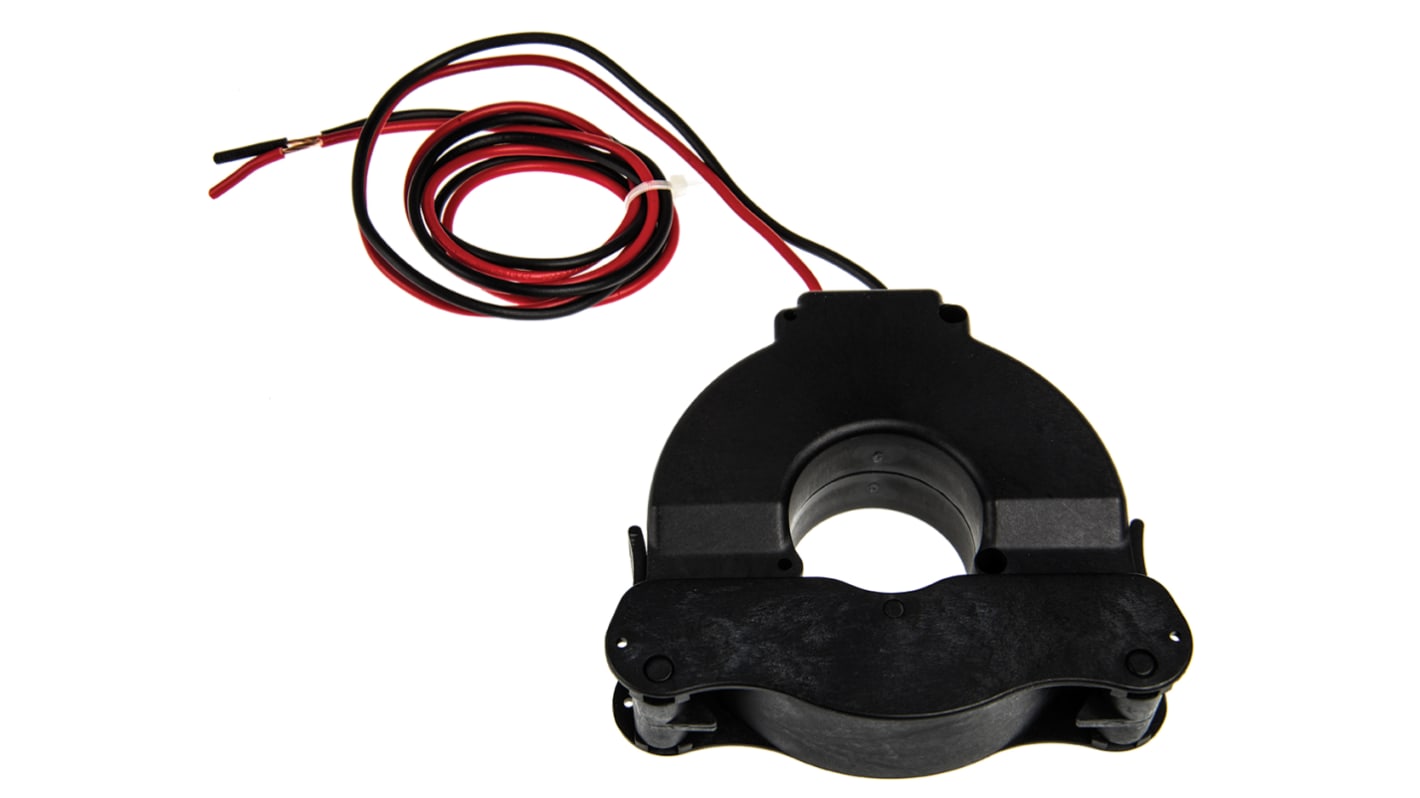

HOBUT CTSCM Series Clip Fit Current Transformer, 200:5

The HOBUT split-core current transformer has a unique clip-together feature enabling high-speed permanent installation and suitable for primary currents from 100A to 800A. It is for installation into existing networks without the need to disconnect cable circuits or busbars. The inbuilt plug-in short circuit link allows the CT to be installed in complete safety. The CT will not operate until the plug-in link is removed. The system rated voltage ranges between 0.72kV and 3kV and a current ratio of 200:5.
Supplied with:
Moulded case with 1m flying lead.

Clip-fit
Continuous current: 1.2 x rated current
Frequency ranges between 50Hz and 60Hz
Insulation rating is 3kV for 1 minute
It is supplied with moulded case with 1m flying lead
Operating temperature ranges between -30°C and 85°C
Overall width of 116mm, depth of 36mm and height is 114mm

CE certified
UL94VO approved
IEC185
BS 7626
BSEN 60044-1
IEC 60044-1
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
