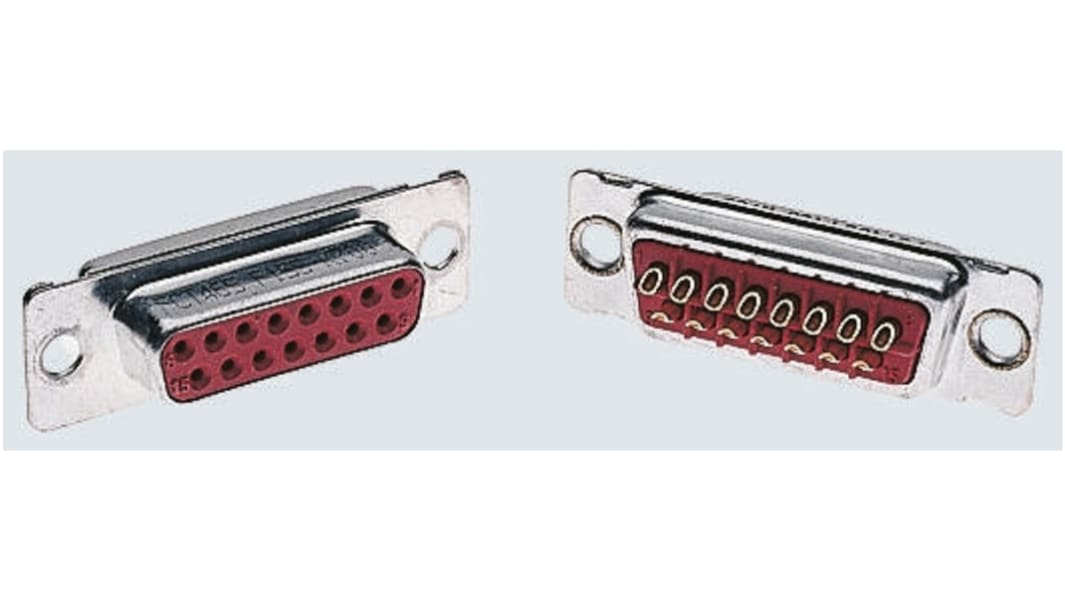

    FCT from Molex 15 Way Panel Mount D-sub Connector Plug

    FCT from Molex
    RS庫存編號:
    246-6109
    製造零件編號:
    F15P-K700 / 1731100012
    製造商:
    FCT from Molex

    此圖片僅供參考,請參閲產品詳細資訊及規格

    查看所有D Sub Connectors
    256 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    HK$177.68

    單位Per unit
    1 - 24HK$177.68
    25 - 99HK$170.57
    100 - 499HK$163.47
    500 +HK$159.91
    RS庫存編號:
    246-6109
    製造零件編號:
    F15P-K700 / 1731100012
    製造商:
    FCT from Molex

    法例與合規


    產品詳細資訊

    Plug & Socket (for cable mounting)


    Solder bucket 'D' plugs and sockets to be used as part of a waterproof cable connection in conjunction with the plastic and metallised hoods (stock no. 195-7187). These may then mate with the panel mounted D plugs and sockets (stock no. 195-7250) or with each other as part of an in-line cable assembly, using the relevant in-line adaptor kit (stock no. 246-6064 to stock no. 246-6086) to maintain IP67 rating.

    FCT from Molex D-Sub Connector, 15 Way, 5A Current Rating - F15P-K700 / 1731100012


    Need to make D-sub connections in damp environments? Choose this connector plug by FCT from Molex. Thanks to its IP67 rating, it's dust-tight and protected against submersion in 1m of water for up to 30 minutes, so it can withstand use in high-moisture settings. The unit has gold-over-nickel plating on its copper alloy contacts, so it's corrosion-resistant, highly conductive and ensures reliable electrical connections. It's designed for solder termination to achieve an air-tight and vibration-resistant attachment.

    • Tin-over-nickel-plated brass housing for resistance to corrosion and wear
    • Wide operating temperature range between -25°C and +70°C for use in harsh environments
    • Current rating of 5A for use in high-powered applications

    Applications


    • Marine vehicles
    • Cleaning equipment
    • Solar panel installations
    • Oil industry

    How many contacts does this connector plug have?


    This connector plug has 15 contacts for versatile use.


    Waterproof (IP67) 'D'


    Suitable for military, industrial or commercial applications and computer interfacing etc.

    規格

    AttributeValue
    Number of Contacts15
    GenderMale
    Body OrientationStraight
    Mounting TypePanel Mount
    D Connector TypeWaterproof D-Sub
    Termination MethodSolder
    D-Sub Shell SizeA
    Current Rating5.0A
    Housing MaterialBrass
    Contact PlatingGold over Nickel
    Contact MaterialCopper Alloy
    Series Number173110
    Minimum Operating Temperature-25.0°C
    Maximum Operating Temperature+70°C
