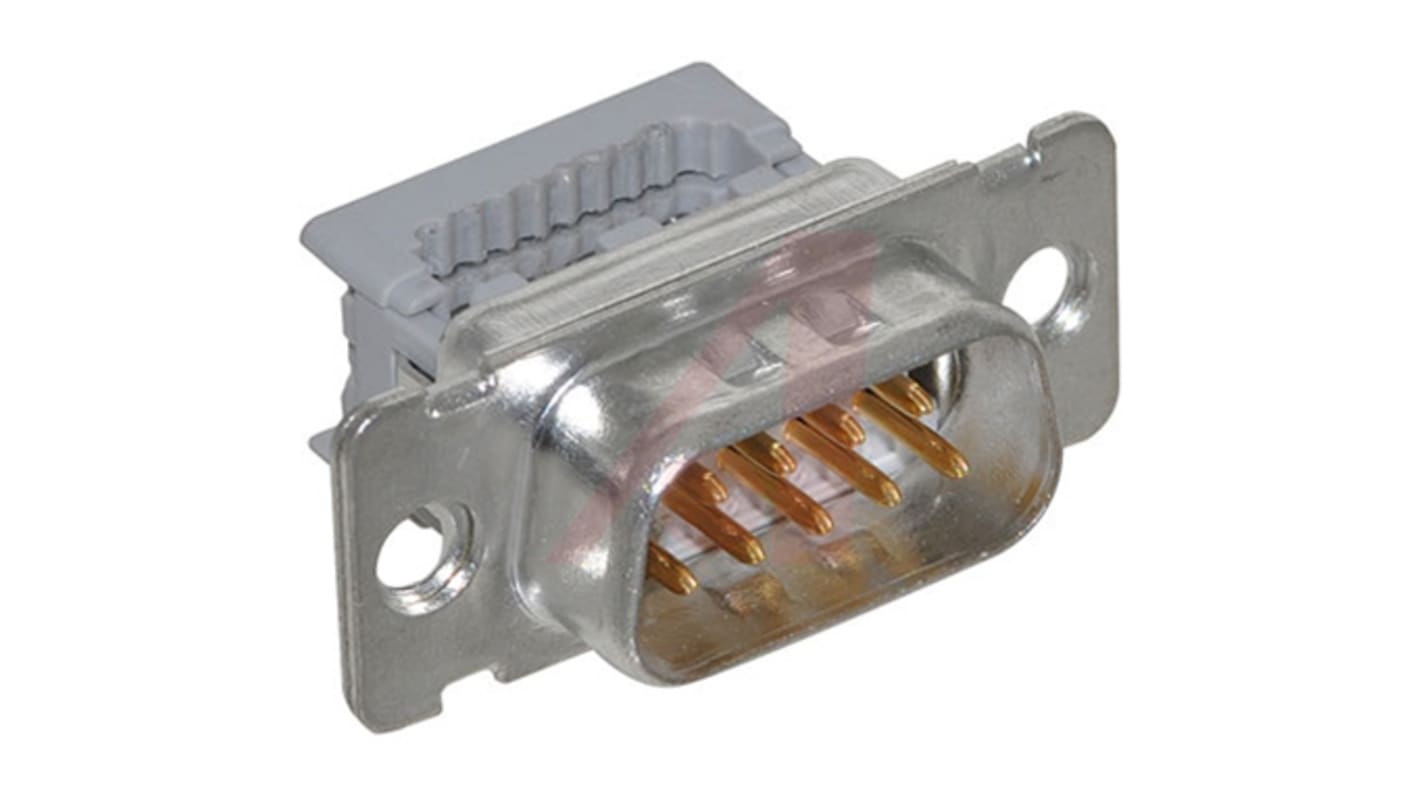

    3M 8200 9 Way Right Angle Cable Mount D-sub Connector Plug, 1.27mm Pitch

    RS庫存編號:
    827-7539
    製造零件編號:
    8209-6000
    製造商:
    3M
    3M
    查看所有D Sub Connectors
    1164 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    原價 HK$78.36

    您付款

    HK$57.61

    單位Per unit
    1 - 4HK$57.61
    5 +HK$47.41
    RS庫存編號:
    827-7539
    製造零件編號:
    8209-6000
    製造商:
    3M

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

    Class II D Metal Shell Connectors


    From 3M, these metal shell d-sub conenctors are ideal where heavy duty conenctions are required in challenging environments.

    Features and Benefits


    Cable mounting D connectors designed for Class II performance
    Tin plated with dimples for good grounding
    For tooling see stock nos. 120-6962 and 192-7748
    These connectors are particularly suitable for use with the 3M colour-coded ribbon cable stock no. 120-8485
    Strain Relief has to be ordered separately see stock number 121-2822

    For Use With:


    • For tooling see stock nos. 120-6962 and 192-7748
    • These connectors are particularly suitable for use with the 3M colour-coded ribbon cable stock no. 120-8485 (example, 9 pole)

    • Strain Relief has to be ordered separately see
    121-2816 is a strain relief for 9 way d-sub connectors
    121-2822 is a strain relief for 15 way d-sub connectors
    121-2838 is a strain relief for 25 way d-sub connectors
    121-2844 is a strain relief for 37 way d-sub connectors
    121-2850 is a strain relief for 50 way d-sub connectors

    What are D-Sub Connectors Used For?


    D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

    They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

    Why choose 3M?


    3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

    Note

    XXXX-XXX0 part numbers have a Ø3.05 mm flange hole
    XXXX-XXX5 part numbers have a #4-40 UNC threaded flange.
    XXXX-XXX9 part numbers have a rivet crimp flange

    3M Right Angle Cable Mount D-Sub Connector Plug, 9 Way, 1.27mm Pitch - 8200 Series - 8209-6000


    This sturdy D-sub connector from 3M is a reliable solution for communication between a computer and display device in extreme environments. It consists of a tin-plated steel shell for improved resistance to corrosion and thanks to its copper contacts, you can be sure of a seamless connection. This connector also features dimples to provide shielding from electromagnetic interference and electrostatic discharge, guaranteeing you safe and noiseless signal transmission. This component is suitable for heavy-duty industrial applications in the engineering, automation and medical fields.

    • 1A current rating for heavy-duty application• Four mounting options for installation flexibility • Stainless steel strain-relief material prevents damage to the cable • Glass-filled polyester insulating material for electrical safety• Wide operating temperature range between -55°C and +105°C, for use in demanding conditions

    Applications


    • Construction sites• Ultrasound devices in hospitals • Industrial computers

    Is this component flame resistant?


    This component is UL 94V-0 (Underwriters Laboratory standard) rated, meaning that in the event of a fire, it will stop burning after 10 seconds. This makes it suitable for use in potentially hazardous industrial environments.


    規格

    AttributeValue
    Number of Contacts9
    GenderMale
    Body OrientationRight Angle
    Mounting TypeCable Mount
    Pitch1.27mm
    Termination MethodIDC
    Current Rating1A
    Housing MaterialPBT
    Voltage Rating500.0 V
    Length30.9mm
    Width16.5mm
    Depth12.4mm
    Contact MaterialCopper Alloy
    Contact PlatingGold over Nickel
    Dimensions30.9 x 16.5 x 12.4mm
    Series8200
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature+105°C
