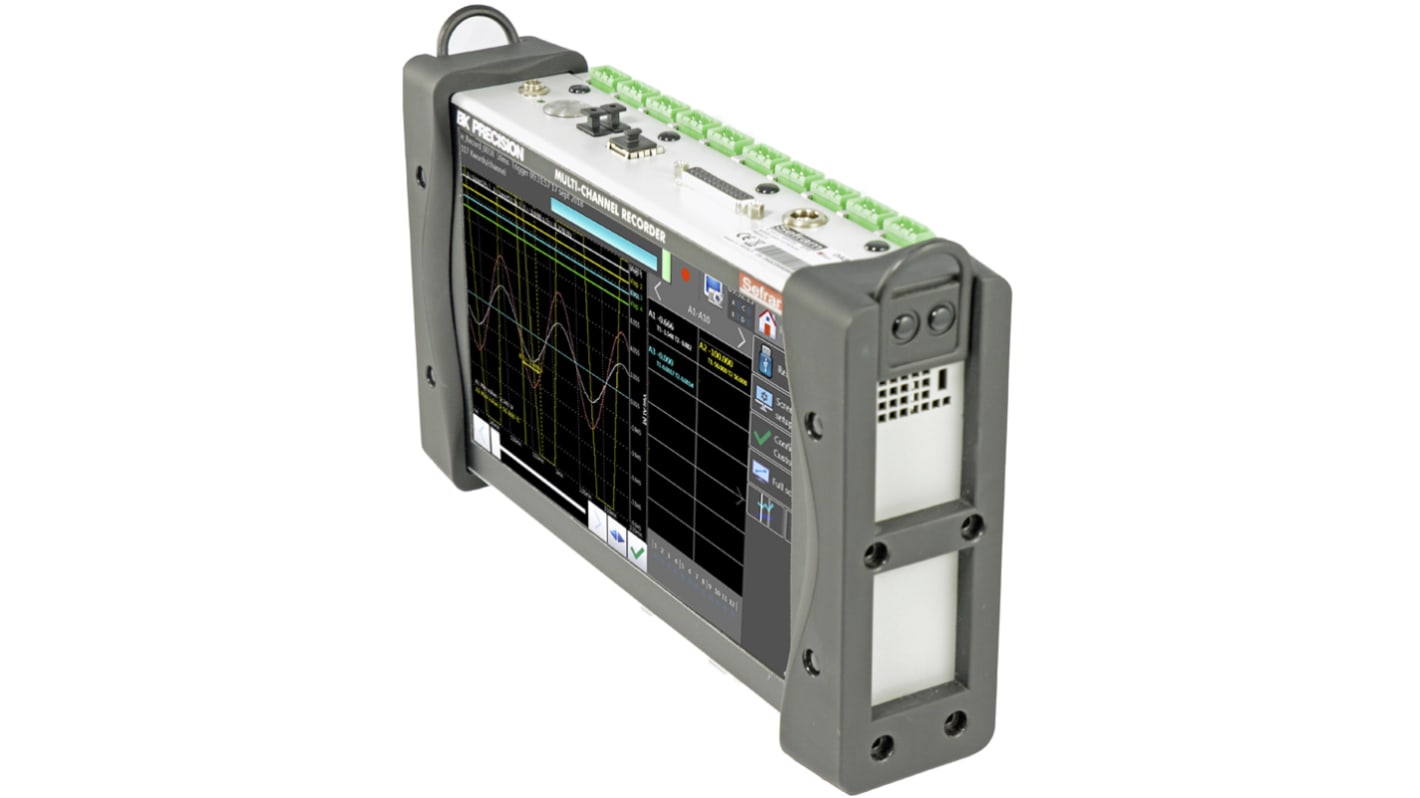

Sefram DAS220BAT Multipurpose Data Logger, Ethernet, USB, Wi-Fi
- RS庫存編號:
- 187-5007
- 製造零件編號:
- DAS220BAT
- 製造商:
- Sefram
- RS庫存編號:
- 187-5007
- 製造零件編號:
- DAS220BAT
- 製造商:
- Sefram
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
10 analogue channels
Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
Voltage: from 1mV to 200V (±100V)
Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
16 Bit vertical resolution
Max sampling rate: 1ms (1kHz)
12 logical channels
4 alarms (output)
4 logical function input with counter & frequency meter capability
10" TFT panoramic touch screen
Internal hard drive : 32 GB
Interfaces: 2xUSB, Ethernet, Wifi (option)
Lithium-ion battery (factory option) : 15h autonomy
DasLab software (licence free)
Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
Voltage: from 1mV to 200V (±100V)
Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
16 Bit vertical resolution
Max sampling rate: 1ms (1kHz)
12 logical channels
4 alarms (output)
4 logical function input with counter & frequency meter capability
10" TFT panoramic touch screen
Internal hard drive : 32 GB
Interfaces: 2xUSB, Ethernet, Wifi (option)
Lithium-ion battery (factory option) : 15h autonomy
DasLab software (licence free)
Options
1259518 - 20 Channel board for DAS240 and DAS240BAT
2320453 - WiFi option
7918071 - External 16 isolated logical channel adapter
1259523 - Special cord for logic inputs (banana)
1259520 - Carrying case for DAS220 and DAS240
2320454 - 10 pieces pack connecting cord with female banana connectors
1259522 - Shunt 50 ohms for DAS220 or DAS240
2320455 - Thermocouple adapter for DAS240 only
2320453 - WiFi option
7918071 - External 16 isolated logical channel adapter
1259523 - Special cord for logic inputs (banana)
1259520 - Carrying case for DAS220 and DAS240
2320454 - 10 pieces pack connecting cord with female banana connectors
1259522 - Shunt 50 ohms for DAS220 or DAS240
2320455 - Thermocouple adapter for DAS240 only
Supplied with
Included: main adaptor 100/240V, manual (CD-ROM), 1 male connector with 25 pins mâle and cover, connectors, a stylus, a soft wipe, a screwdriver
規格
Attribute | Value |
|---|---|
| Number of Input Channels | 10 |
| Model Number | DAS220BAT |
| Sensor Type | Temperature, Thermocouple |
| Measurement Parameters | Resistance, Temperature, Voltage |
| Interface Type | Ethernet, USB, Wi-Fi |
| Data Logger Type | Multipurpose |
| Maximum Voltage Measurement | 200V |
| Maximum Temperature Measurement | +1000 (Type E) °C, +1200 (Type J) °C, +1300 (Type N) °C, +1370 (Type K) °C, +1760 (Type S) °C, +1820 (Type B) °C, +2320 (Type C) °C, +400 (Type T) °C, +900 (Type L) °C |
| Power Source | Battery, Mains |
| Best Temperature Measurement Accuracy | 0.3 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +40°C |
| Display Type | LCD |
| Best Voltage Measurement Accuracy | 0.1 % |
| Alarm | Yes |
| Battery Type | Lithium Battery |
| Includes | 1 x 25-contact male connector with cover, 100/240Vac AC adapter, Cleaning Wipe, connector, manual (CD-ROM), Screwdriver, stylus |
