Lascar EL-GFX-2+ Humidity, Temperature Data Logger, Micro USB, Battery Powered, LCD Display, IP67

  • RS庫存編號 819-3194
  • 製造零件編號 EL-GFX-2+
  • 製造商 Lascar
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

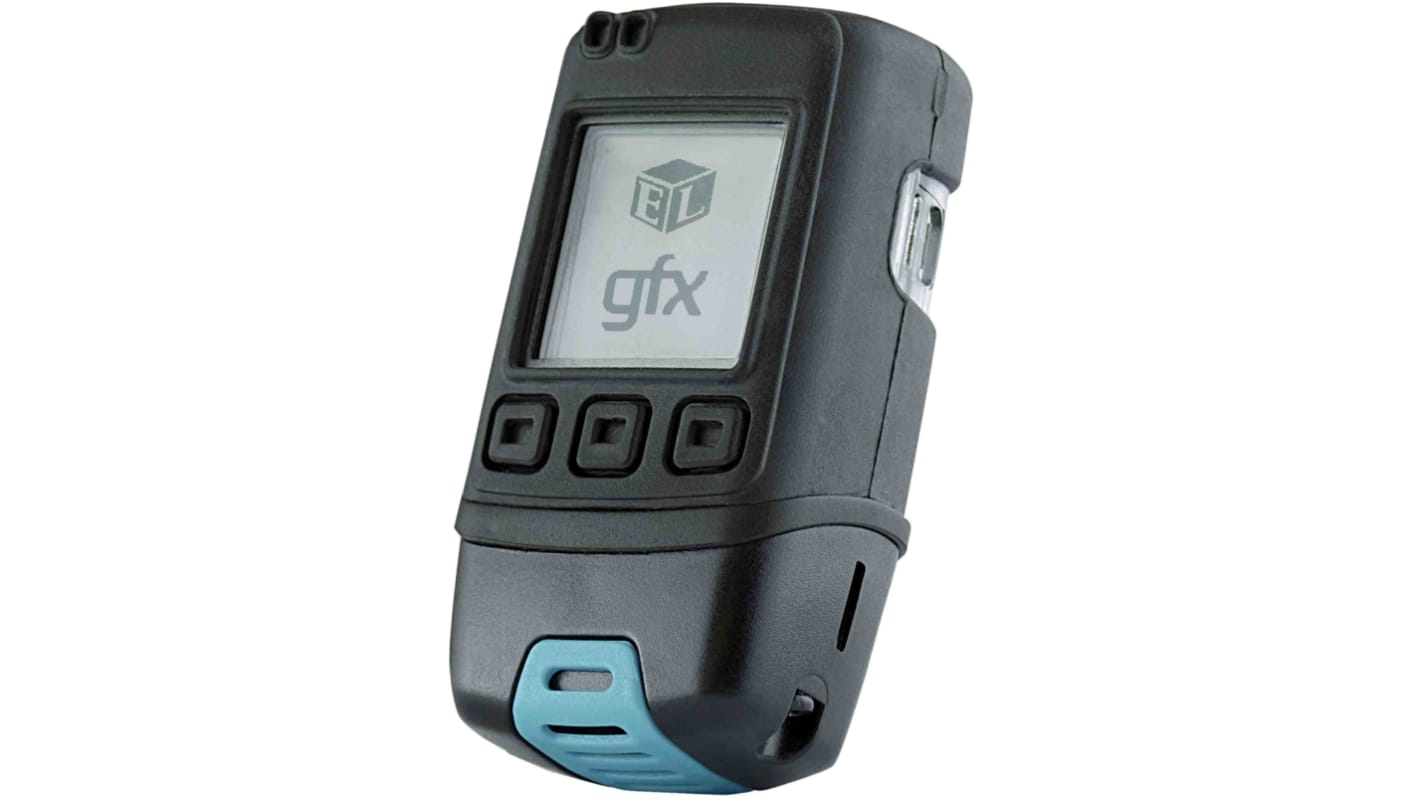

EL-GFX-2+ High Accuracy Temperature/RH Data Logger with Graphic Screen

The EL-GFX-2+ standalone USB data logger measures and stores up to 252,928 temperature and humidity readings over a -30 to +80°C (-22 to 176°F) and 0 to 100%RH range at a resolution of 0.1°C (0.1°F) and 0.1%RH. Using the Windows control software (available as a free download from www.easylogusb.com) the user can quickly set up the logger name, sample rate, alarm settings and start mode (immediate start, push to start, delayed start or temperature/humidity triggered start). This software can later be used to download the stored data which can be graphed, printed and exported to other applications.
The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum/minimum reading using the on-screen menu; this introduces an ’event marker’ into the data which can later be viewed in the graphing software (’Mark Events’ option) and the data file after download.

Higher accuracy sensor when compared with the EL-GFX-2
-30 to +80 °C and 0 to 100% RH measurement ranges
Rugged and robust, IP67 construction
Immediate, delayed, push-button or temperature/RH triggered start mode
Logging rates between 10 seconds and 1 hour
Stores more than 250,000 readings
On screen menu and graphing to start, stop, review and restart the logger in the field
Micro USB interface for PC based set-up and data download
User-programmable alarm thresholds
Graphic LCD shows real-time readings, graph and current status
Resettable Min/Max readings may be viewed on the LCD
User-set audible alarm
Highly visible confidence/alarm LEDs

Supplied with

AA replaceable batteries (x2)

Lascar Data Loggers

The Lascar EL-GFX-2+ standalone data logger measures and stores over 250,000 temperature and humidity readings between -30°C and 80°C (-22°F to 176°F) and 0 to 100% RH range at a resolution of 0.1°C (0.1°F) and 0.1% RH. This data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. Users can reset the maximum/minimum reading using the on-screen menu. This introduces an ’event marker’ into the data which can later be viewed in the graphing software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
AA replaceable batteries (x2)

Features and Benefits


The measurement ranges between -30°C and 80°C (-22°F and 176°F)
• Temperature measurement accuracy is ±2°C
• Humidity measurement accuracy is ±5% RH
• Logging rates between 10 seconds and 1 hour
• Number of readings per channel is 2,52,928
• Immediate, delayed, pushbutton or level triggered start mode
• User-programmable audible alarm thresholds with highly visible LEDs
• On-screen graphing, and menu options to start, stop, review and restart the logger in the field
• Battery life is up to 4 months
• Supplied with a 1/2AA two lithium metal batteries

Applications


Building and site monitoring
• Outside environmental data
• Housing and business premises
• Museums and exhibitions

Certifications


IP67 Rated

規格
Attribute Value
Measurement Parameters Humidity, Temperature
Number of Input Channels 1
Interface Type Micro USB
Maximum Temperature Measurement +80 °C
Power Source Battery
Best Temperature Measurement Accuracy ±2 °C
IP Rating IP67
Minimum Operating Temperature +30°C
Maximum Operating Temperature +80°C
Display Type LCD
Battery Type 1/2 AA Lithium
Best Humidity Measurement Accuracy ±5 %RH
Includes (2) Batteries, Data Logger, Micro USB Cable, Mounting Clip, USB Cover
Humidity Measurement Resolution ±0.1%RH
Number of Readings Per Channel 252928
Alarm Yes
Battery Life 4 month
Maximum Humidity Measurement 100%RH
Temperature Measurement Resolution 0.1°C
Dimensions 48.5 x 30.5 x 88mm
